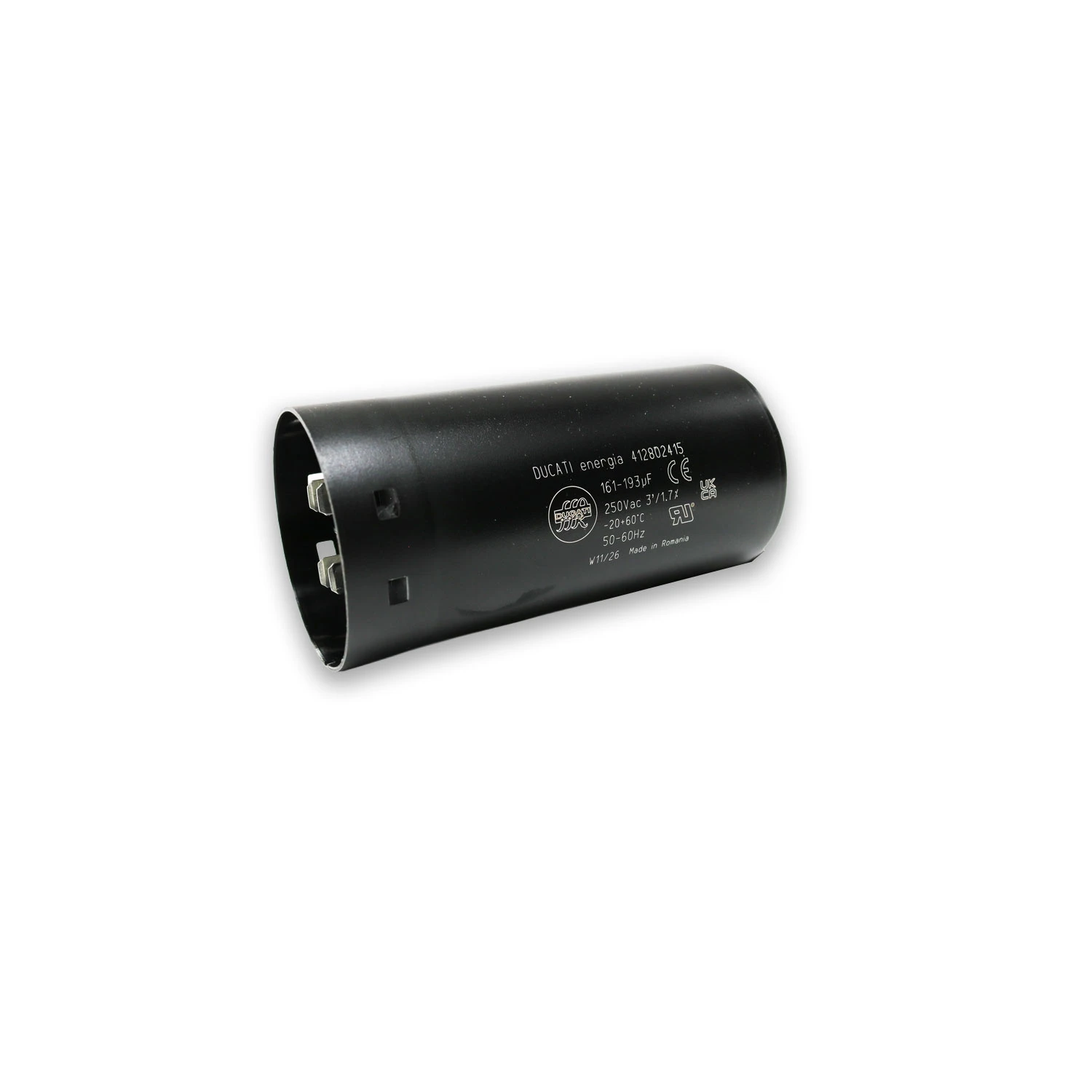

Photo is representative

161-193 uF Motor Start Capacitor 250V AC - Faston 6.3 mm Terminals

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 412802415
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £20.12

Gross price

£24.14

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

161-193 uF motor start capacitor rated 250 V AC for single-phase motor starting. Electrolytic design for intermittent start duty.

  • Capacitance: 161-193 uF +/-10%
  • Rated voltage: 250 V AC
  • Duty: 3 s ON / 3 min OFF (N=20 insertions/hour)
  • Dissipation factor: typical 6%, max 10%
  • Terminals: Faston 6.3 mm double-tag (terminal spacing 16 mm)
  • Case: moulded self-extinguishing thermoplastic, Ø52 mm × H105 mm, mounting without stud
  • Operating temperature: -20°C to +60°C
  • Construction: etched aluminium foil
Specifications

Capacitance

161-193 uF

Tolerance

+/-10%

Rated voltage

250 V AC

Frequency

50-60 Hz

Dissipation factor

Typical 6%, Max 10%

Duty cycle

Intermittent — 3 s ON / 3 min OFF (N=20 insertions/hour)

Type

Single-phase motor start (electrolytic)

Terminals

Faston 6.3 mm double-tag

Terminal spacing

16 mm

Case material

Moulded self-extinguishing thermoplastic

Diameter

52 mm

Height

105 mm

Mounting

Without stud

Operating temperature

-20°C to +60°C

Construction

Etched aluminium foil

Certification

UL E347921
