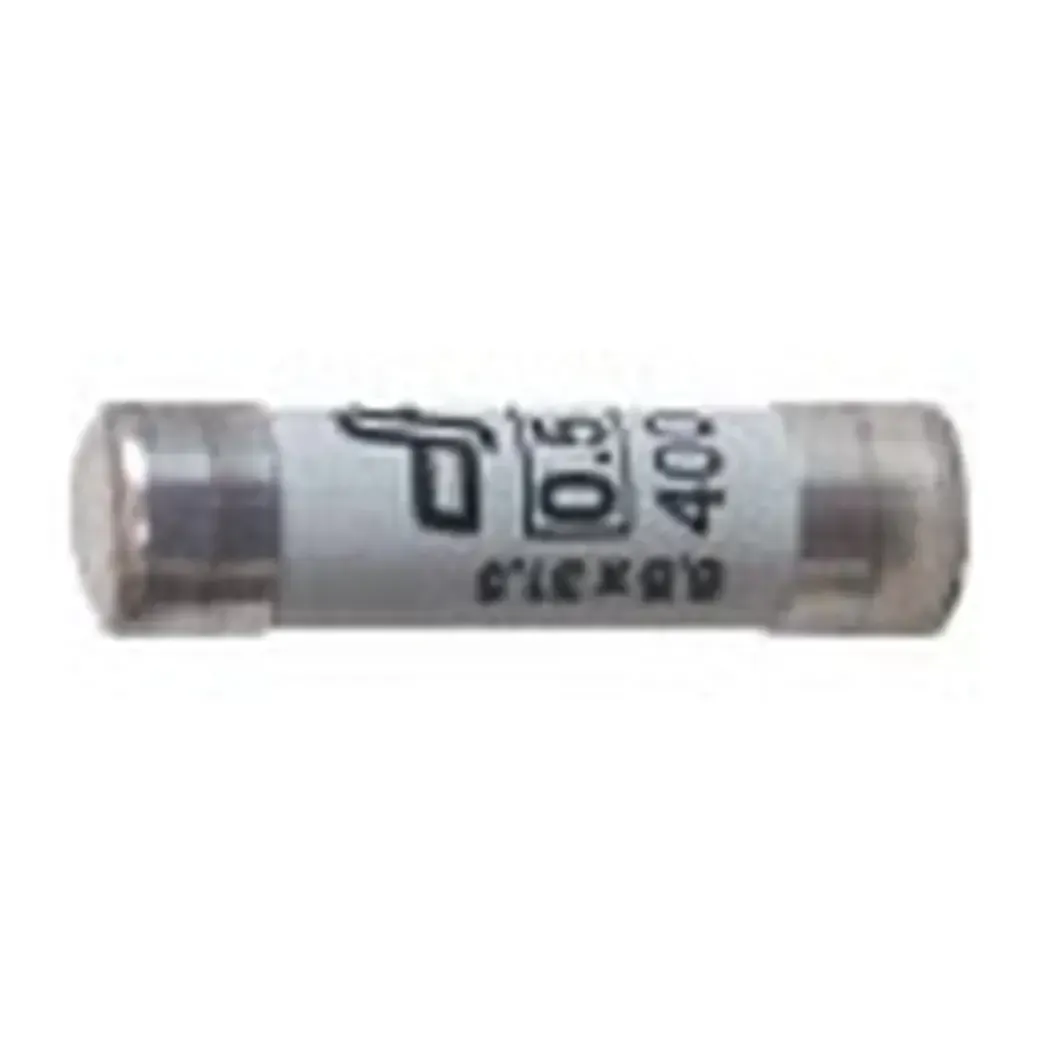

16A 10x38mm aM Cylindrical Fuse Link 500V

Photo is representative

16A 10x38mm aM Cylindrical Fuse Link 500V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 440016
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £1.21

Gross price

£1.45

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

10x38mm cylindrical fuse link, class aM, rated 16A at 500V. Designed for short-circuit protection on motor and transformer circuits where high inrush currents are present.

  • Breaking capacity: 120kA
  • Frequency: 42–62Hz
  • Operating temp: -40°C to +80°C
  • Standards: IEC/EN 60269-1, IEC/EN 60269-2
  • RoHS compliant
Specifications

Operating Class

aM

Rated Current

16A

Rated Voltage

500V +10%

Rated Breaking Capacity

120kA

Rated Frequency

42…62Hz

Operating Temperature

-40°C … 80°C

Storage Temperature

-40°C … 90°C

Dimensions (AxBxC mm)

10.3 x 38 x 10

Weight

8g

Power Dissipation

0.85W

Prearcing I²t

550 A²s

I²t at 500V

2103 A²s

I²t at 400V

1608 A²s

Body Material

Ceramic

Contacts

Silver plated copper

Standards

IEC/EN 60269-1, IEC/EN 60269-2

RoHS Compliant

Yes
