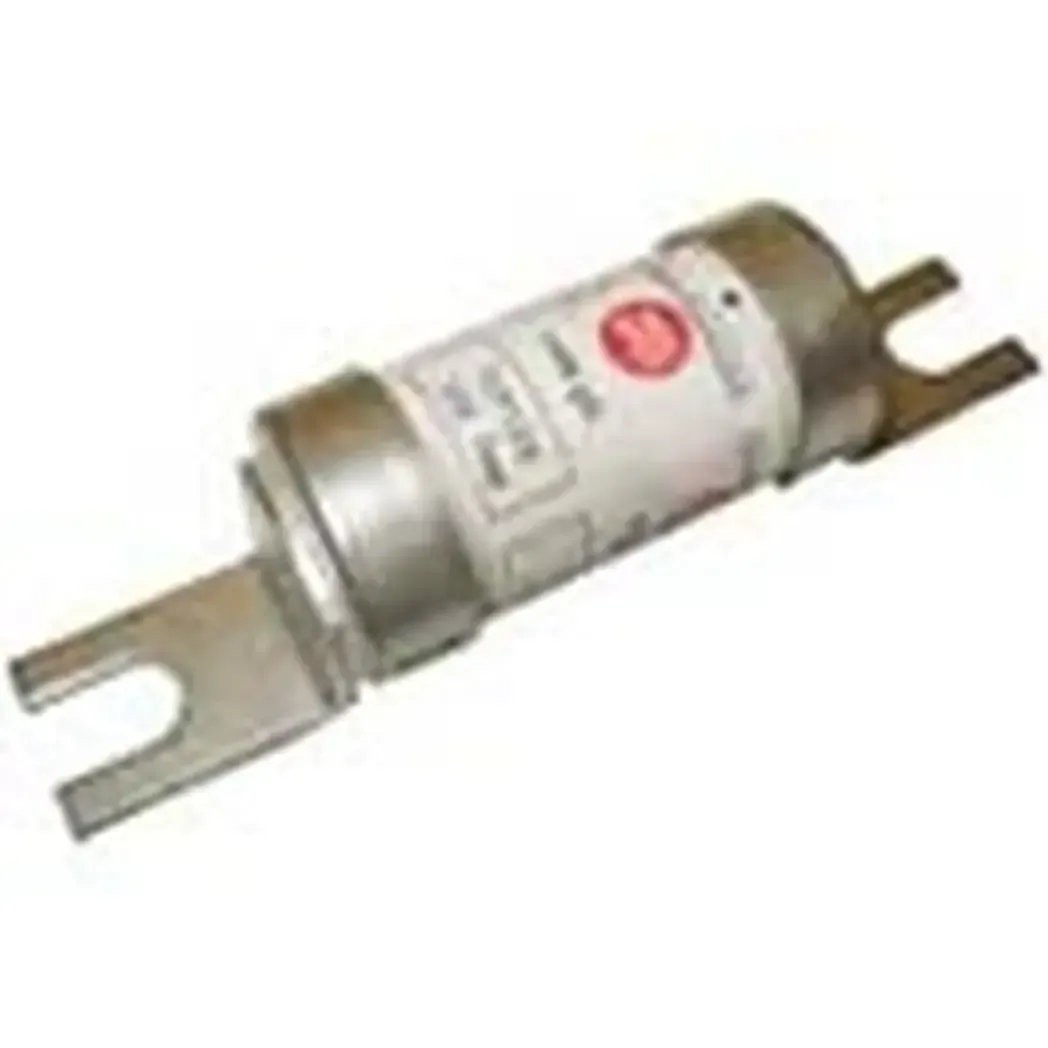

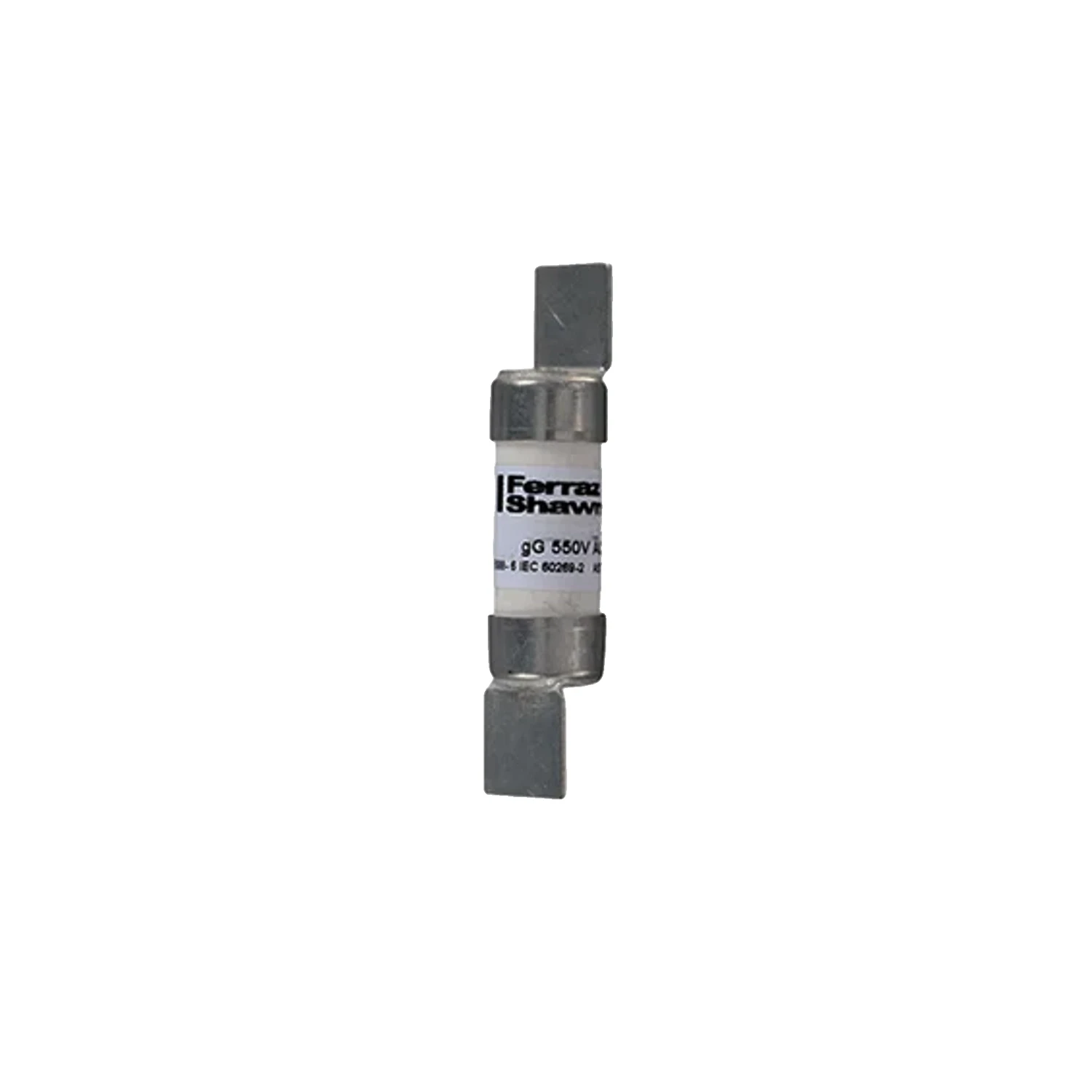

NS Fuse 16A F1 gG Offset Blade 550V AC 250V DC Ceramic Cartridge

Photo is representative

NS Fuse 16A F1 gG Offset Blade 550V AC 250V DC Ceramic Cartridge

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code NS16
GTIN —
Stock status: In stock

priced individually

Net price: £5.46

Gross price

£6.56

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

BS88 gG fuse-link, F1 size, rated 16A. Clip-mount with offset blade terminals — confirm your fuse carrier accepts F1 offset blade before ordering.

Class gG covers full-range overcurrent protection. Suitable for AC and DC circuits.

  • Rated voltage: 550V AC / 250V DC
  • Breaking capacity: 80kA AC / 40kA DC
  • Clearing I²t: 550 A²s | Melting I²t: 120 A²s
  • Body: ceramic, 13.5mm dia × 61mm length
  • Terminals: tin-plated copper, offset blade
Specifications

Ampere Rating

16 A

Rated Voltage AC

550 V

Rated Voltage DC

250 V

Breaking Capacity AC

80 kA

Breaking Capacity DC

40 kA

Fuse Class

gG

Fuse Size

F1

Terminal Type

Offset Blade

Terminal Material

Tin-Plated Copper

Mounting

Clip

Body Material

Ceramic

Diameter

13.5 mm

Length

61 mm

Clearing I2t at Rated Voltage

550 A²s

Melting I2t

120 A²s

Power Dissipation at Rated Current

1.6 W

Weight

0.0175 kg

RoHS Compliant

Yes

Standard

IEC BS88
