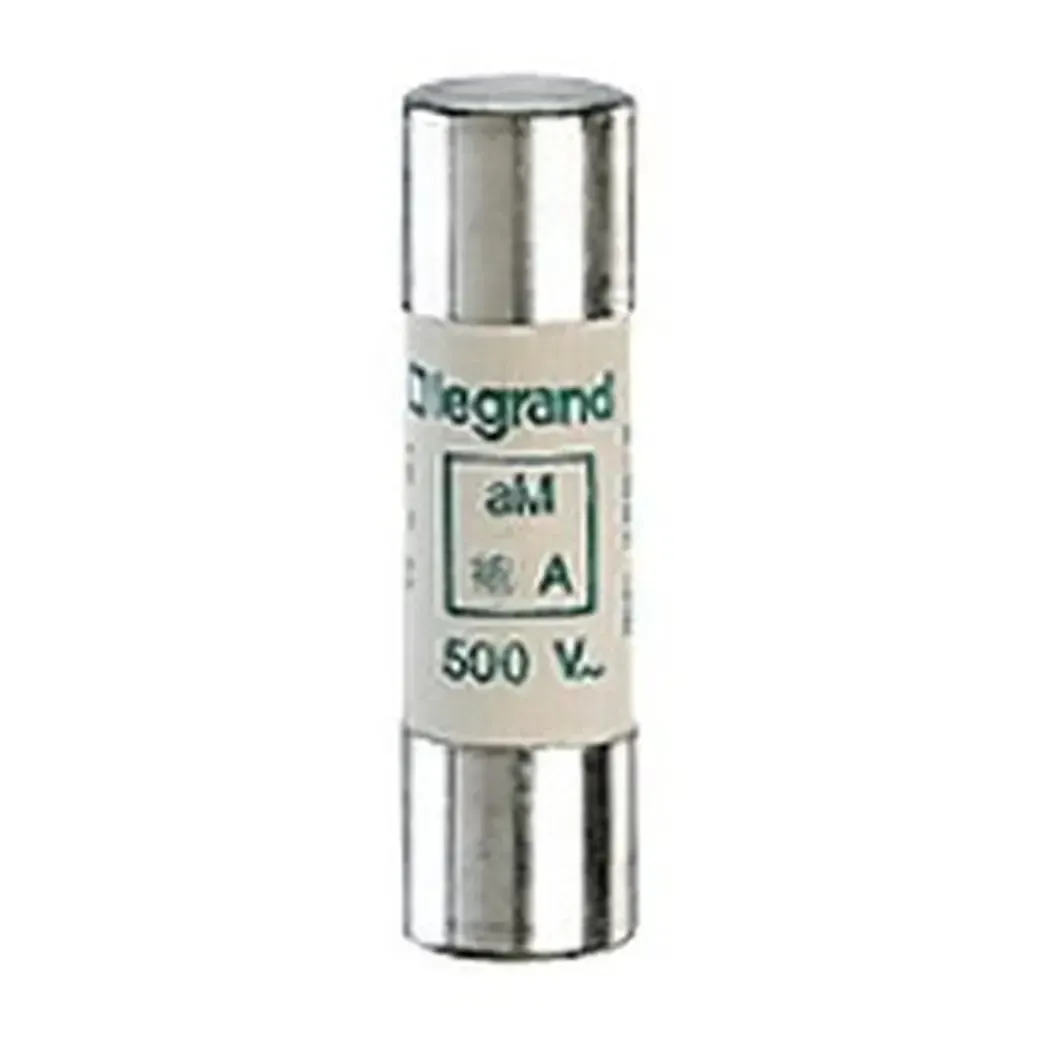

16A 14x51mm aM Cylindrical Fuse Link 690V

Photo is representative

16A 14x51mm aM Cylindrical Fuse Link 690V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 441016
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £1.94

Gross price

£2.33

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

aM class cylindrical fuse link in 14x51mm format. Designed for short-circuit protection on motor, transformer and other high inrush current circuits.

Good current limiting capability with low I²t values. Ceramic body with silver plated copper contacts.

  • Rated current: 16A
  • Rated voltage: 690V +5%
  • Breaking capacity: 80kA @ 690V
  • Operating class: aM
  • Dimensions: 51mm L × 14.3mm Ø
Specifications

Rated Current

16A

Rated Voltage

690V +5%

Breaking Capacity

80kA @ 690V

Operating Class

aM

Rated Frequency

42…62Hz

Operating Temperature

-40°C to 80°C

Storage Temperature

-40°C to 90°C

Body Material

Ceramic

Contact Material

Silver plated copper

Length

51mm

Diameter

14.3mm

Weight

18g

Power Dissipation

1.16W

Standards

IEC/EN 60269-1, IEC/EN 60269-2
