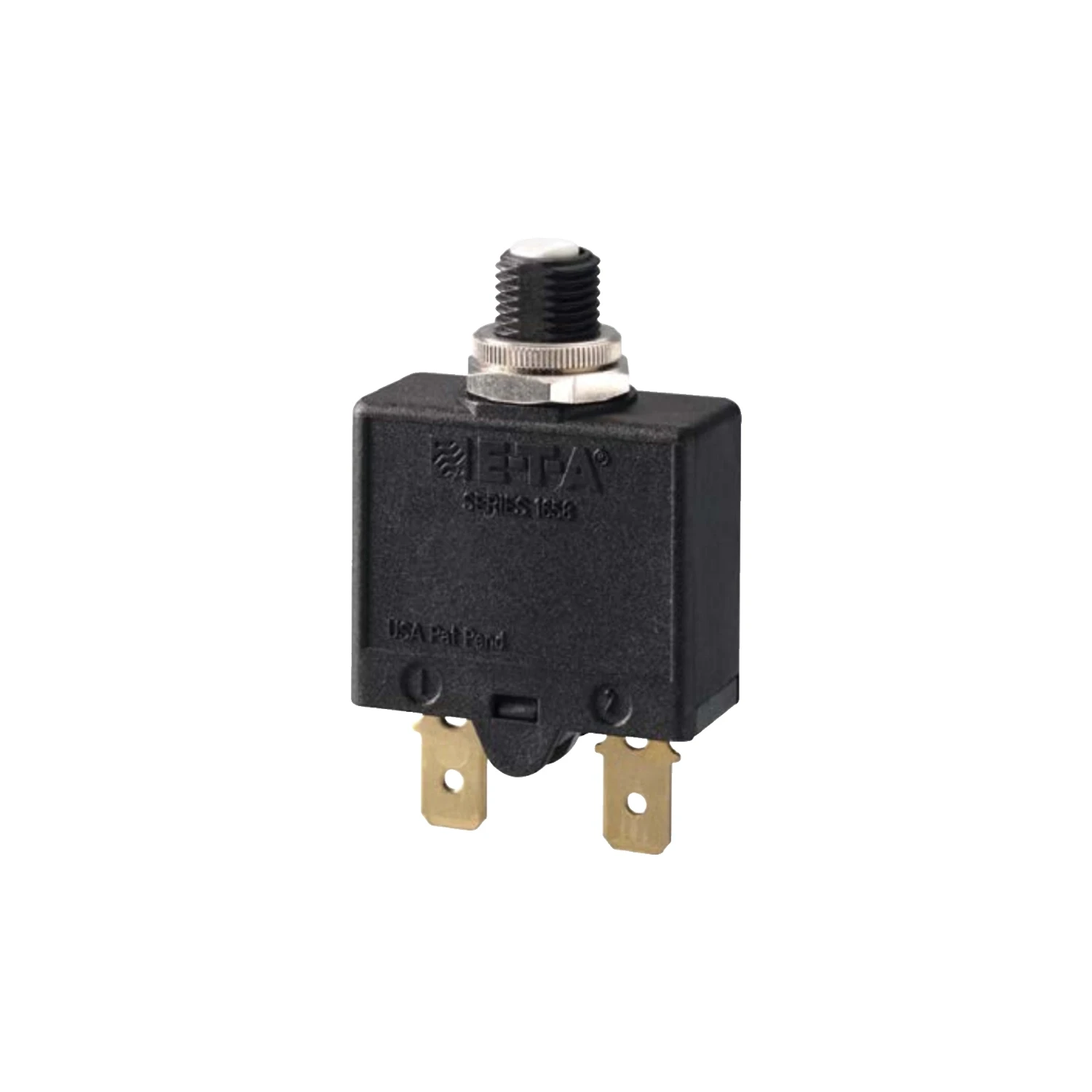

16A Single Pole Thermal Circuit Breaker Manual Reset R-Type TO CBE EN60934 1658-G21-02-P10-16A

Photo is representative

16A Single Pole Thermal Circuit Breaker Manual Reset R-Type TO CBE EN60934 1658-G21-02-P10-16A

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 3445333
GTIN —
Stock status: 2 in stock

priced individually

More arriving soon

Net price: £10.33

Gross price

£12.39

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Single pole thermal overcurrent circuit breaker to EN 60934. Manual reset, cycling trip-free mechanism — no exposed current-carrying metal except terminals.

Fits a Ø 9.6 mm panel cut-out via 3⁄8”-27 threadneck. QC .250 blade terminals (A6.3-0.8, DIN 46244). Suited to battery chargers, power supplies, consumer products and motors.

  • Rated current: 16A
  • Voltage: AC 240V / DC 28V
  • Interrupting capacity (Icn): 200A; 2,000A per UL 1077 / EN 60934 at AC 240V
  • Ambient temp: −20 to +60 °C
  • IP40 operating area
  • Approvals: VDE, UL 1077, CSA C22.2 No. 235
Specifications

Current Rating

16 A

Voltage Rating

AC 240 V / DC 28 V

Poles

Single pole

Type

R-type TO CBE, EN 60934

Reset Type

Manual reset, cycling trip-free

Interrupting Capacity (Icn)

200 A (8–30 A range)

Interrupting Capacity UL 1077 / EN 60934 AC 240V

2,000 A

Interrupting Capacity UL 1077 DC 32V

2,500 A

Terminals

Blade A6.3-0.8 QC .250, DIN 46244

Mounting

3/8"-27 UNS-2A threadneck, panel cut-out Ø 9.6 mm

Tightening Torque (threadneck)

Max 0.8 Nm

IP Rating (operating area)

IP40

Ambient Temperature

-20 to +60 °C

Rated Impulse Withstand Voltage

2.5 kV

Mass

Approx. 16 g

Body Dimensions

32 × 14 mm

Typical Voltage Drop

≤ 250 mV

Approvals

VDE (IEC/EN 60934), UL 1077, UL 1500, CSA C22.2 No. 235
