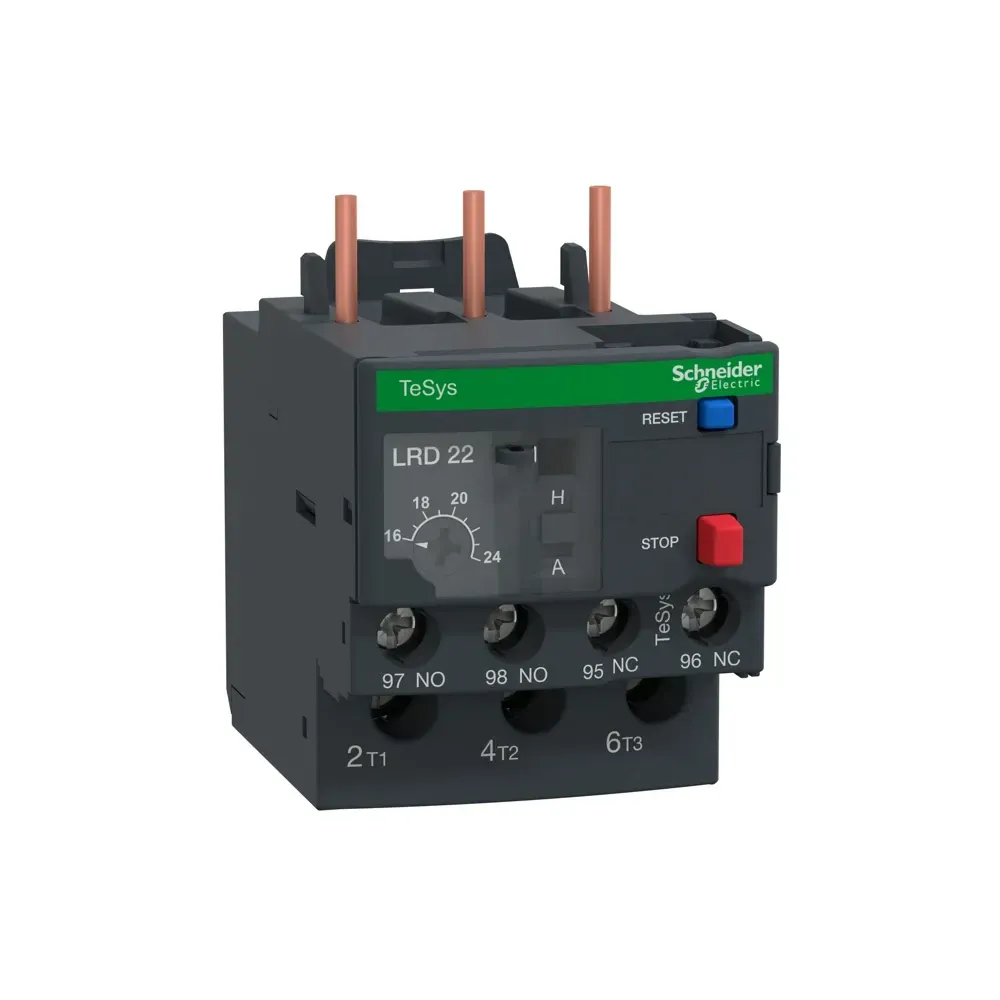

Schneider Electric 16-24A thermal overload relay Class 10A

Photo is representative

Schneider Electric LRD22 Thermal Overload Relay 16-24A Class 10A

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code LRD22
GTIN 3389110346848
Stock status: In stock

priced individually

More arriving soon

Net price: £57.01

Gross price

£68.41

Schneider Electric 16-24A thermal overload relay (LRD22), TeSys Deca series, designed for motor protection. Class 10A thermal trip with adjustable range 16-24 A and manual reset (blue push-button) with red stop. Fitted with 1NO+1NC auxiliary contacts, 690 V AC rated power circuit and phase-failure sensitivity. Direct mountable under LC1D25/LC1D32/LC1D38 contactors; plate or DIN-rail mounting with accessories. Screw-clamp terminals, signalling circuit rated 5 A Ith (fuse 4 A), tightening torque: power 2.5 N.m / control 1.7 N.m. 18-month warranty.

Specifications

Current Range

16-24A adjustable

Trip Class

Class 10A thermal protection

Operating Voltage

690 V AC maximum (power circuit)

Auxiliary Contacts

1NO+1NC

Reset Type

Manual reset (blue push-button); red push-button stop

Mounting

Direct mount under contactor (LC1D25/LC1D32/LC1D38); plate or DIN-rail with accessories
