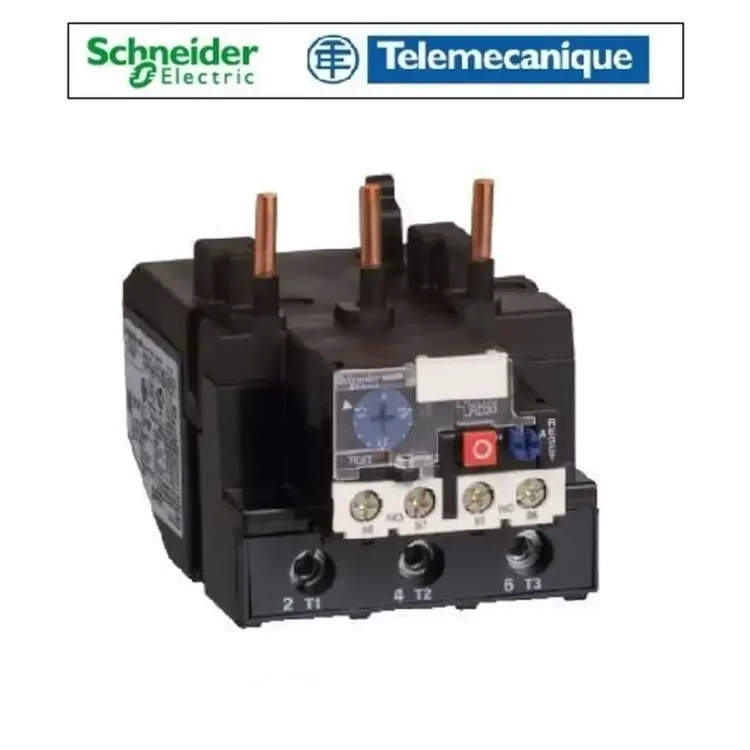

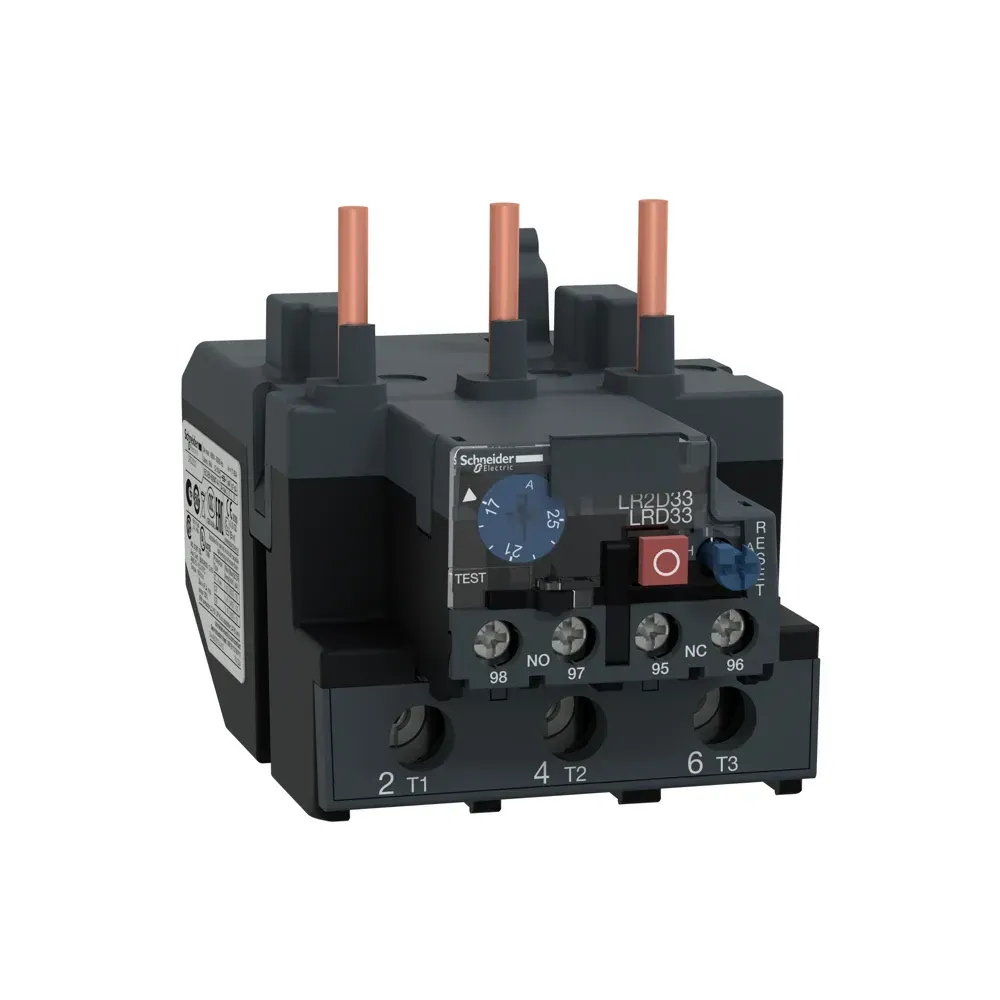

Schneider Electric LRD3322 Thermal Overload Relay 17-25A Class 10A

Schneider Electric 17-25A thermal overload relay (LRD3322), TeSys Deca series, for motor protection in industrial and commercial starters. Class 10A trip characteristics with adjustable thermal protection 17–25 A and rated operational voltage up to 1000 V AC (0–400 Hz). Provides 1NO+1NC auxiliary contact, manual reset via blue push-button, and phase-failure sensitivity. Mountable under contactor, on plate or DIN rail with accessories; compatible with LC1D80 and LC1D95 contactors. Temperature-compensated −20…60 °C operation; screw-clamp terminals. Meets IEC 60947-4-1 and IEC 60947-5-1 standards and is certified IEC, UL, CSA.
