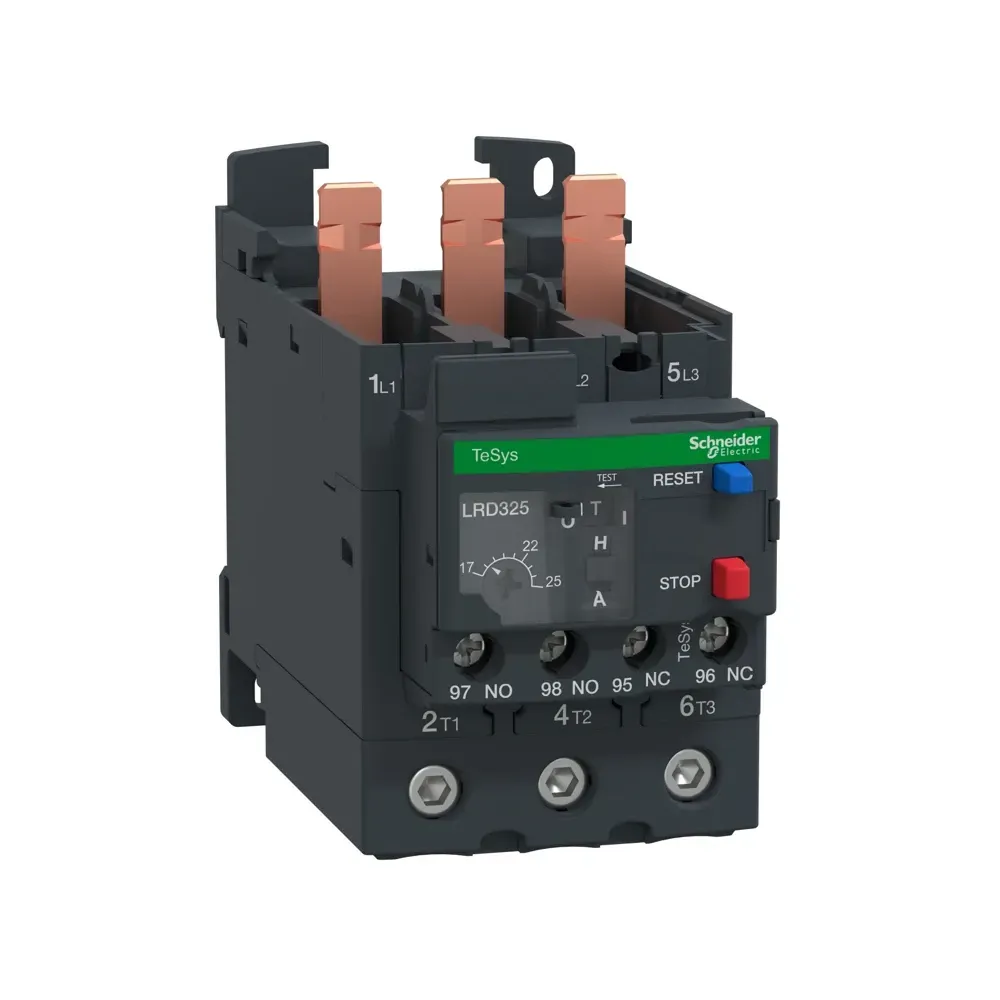

Schneider Electric 17-25A thermal overload relay LRD325 Class 10A

Photo is representative

Schneider Electric LRD325 Thermal Overload Relay 17-25A Class 10A

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code LRD325
GTIN 3389119215473
Stock status: In stock

priced individually

Net price: £65.75

Gross price

£78.90

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Schneider Electric 17…25 A thermal overload relay (LRD325) from the TeSys Deca family for three‑phase motor protection. Class 10A thermal trip characteristics with adjustable protection 17…25 A and a 690 V AC rated power circuit (600 V rated per UL/CSA). Manual reset via blue push‑button (red push‑button for stop). Auxiliary contact composition 1NO+1NC. Phase‑failure sensitivity and a 1.14 ±0.06 Ir tripping threshold provide reliable motor safeguarding. EverLink BTR screw power terminals (1–35 mm²) and screw‑clamp control terminals. Designed for mounting under LC1D40A, LC1D50A and LC1D65A contactors.

Specifications

Current Range

17–25 A adjustable

Trip Class

Class 10A thermal protection

Operating Voltage

690 V AC maximum (power circuit); 600 V rated per UL/CSA

Auxiliary Contacts

1NO+1NC

Reset Type

Manual reset (blue push‑button); stop (red push‑button)

Mounting

Under contactor; plate/rail with accessories; compatible with LC1D40A/LC1D50A/LC1D65A
