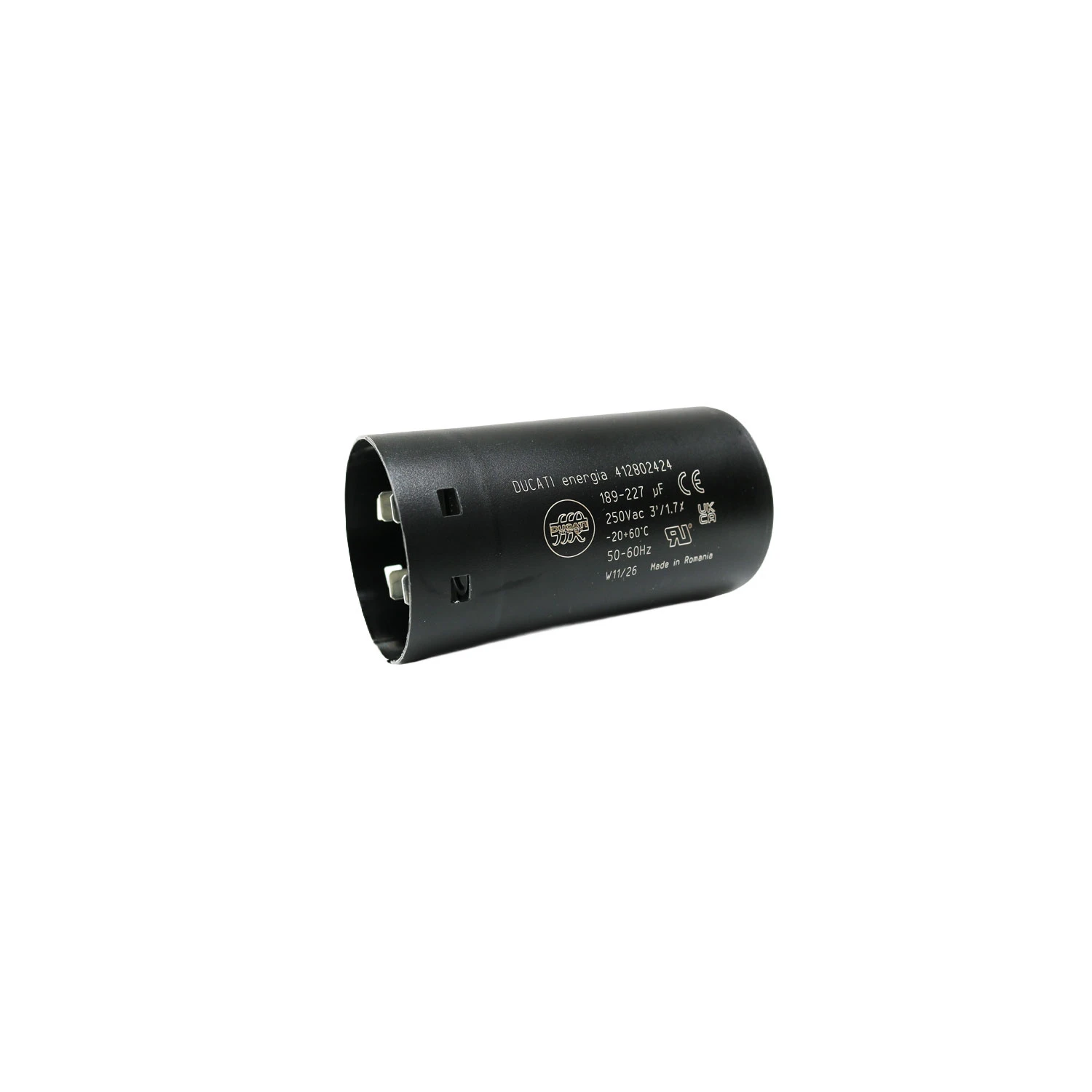

Photo is representative

189-227 µF Motor Start Capacitor 250V AC, 6.3mm Spade Terminals

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 412802424
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £20.19

Gross price

£24.23

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

189 ÷ 227 µF motor start capacitor rated 250V AC, 50-60Hz for single-phase induction motor starting applications.

  • Capacitance: 189-227 µF ±10%
  • Voltage: 250V AC, 50-60Hz
  • Terminal type: 6.3mm Faston double tag terminals
  • Operating temperature: -20°C to +60°C
  • Case dimensions: 45.5 × 84 mm
  • Case shape: Round
  • Duty cycle: 3s ON / 3 min OFF
  • Terminal spacing: 16mm
  • Construction: Etched aluminium foil, thermoplastic case
  • Compliance: UL listed
Specifications

Capacitance

189-227 µF

Capacitance Tolerance

±10%

Voltage

250V AC

Frequency

50-60 Hz

Dissipation Factor

Typical 6%, Max 10%

Duty Cycle

3s ON / 3 min OFF

Diameter

45.5 mm

Height

84 mm

Terminal Type

Faston 6.3 mm double tag

Terminal Spacing

16 mm

Case Material

Moulded thermoplastic, self-extinguishing

Operating Temperature

-20°C to +60°C

Construction

Etched aluminium foil

Capacitor Type

Start Capacitor

Mounting

Without stud
