Cylindrical Fuse Link 1A 10x38 aM 500V

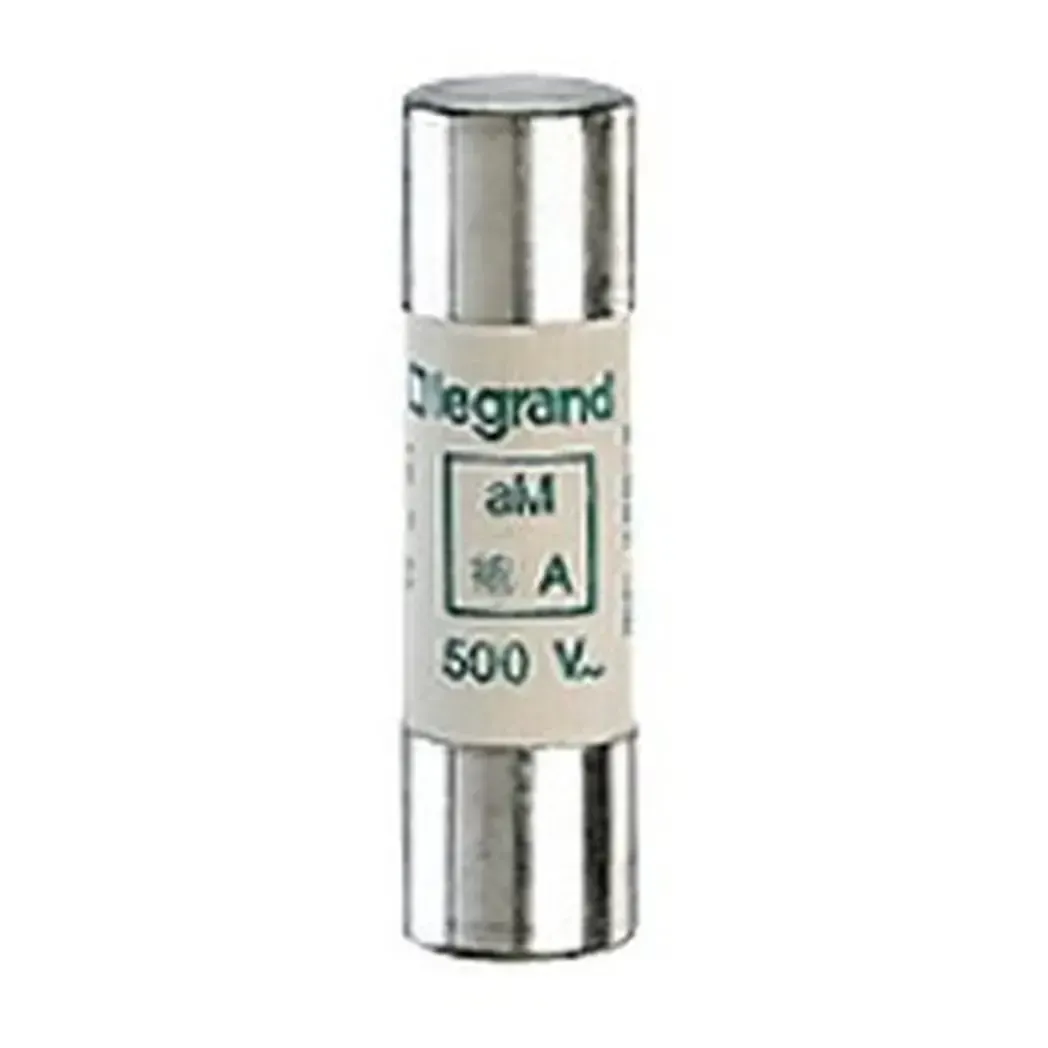

Photo is representative

Cylindrical Fuse Link 1A 10x38 aM 500V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 440001
GTIN —
Stock status: In stock

priced individually

Net price: £0.55

Gross price

£0.66

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

10x38mm aM cylindrical fuse link, 1A 500V. Designed for short-circuit protection on motor circuits, transformers, and other loads with high inrush currents.

  • Rated current: 1A
  • Rated voltage: 500V +10%
  • Breaking capacity: 120kA
  • Operating class: aM
  • Standards: IEC/EN 60269-1, IEC/EN 60269-2
Specifications

Rated Current

1 A

Rated Voltage

500V +10%

Breaking Capacity

120 kA

Operating Class

aM

Rated Frequency

42…62 Hz

Size

10x38

Dimension A

10.3 mm

Dimension B

38 mm

Dimension C

10 mm

Weight

8 g

Power Dissipation

0.10 W

Prearcing I²t

9.5 A²s

I²t at 500V

21.9 A²s

I²t at 400V

18.5 A²s

Operating Temperature

-40°C to 80°C

Storage Temperature

-40°C to 90°C

Body Material

Ceramic

Contact Material

Silver plated copper

Standards

IEC/EN 60269-1, IEC/EN 60269-2

RoHS

Compliant
