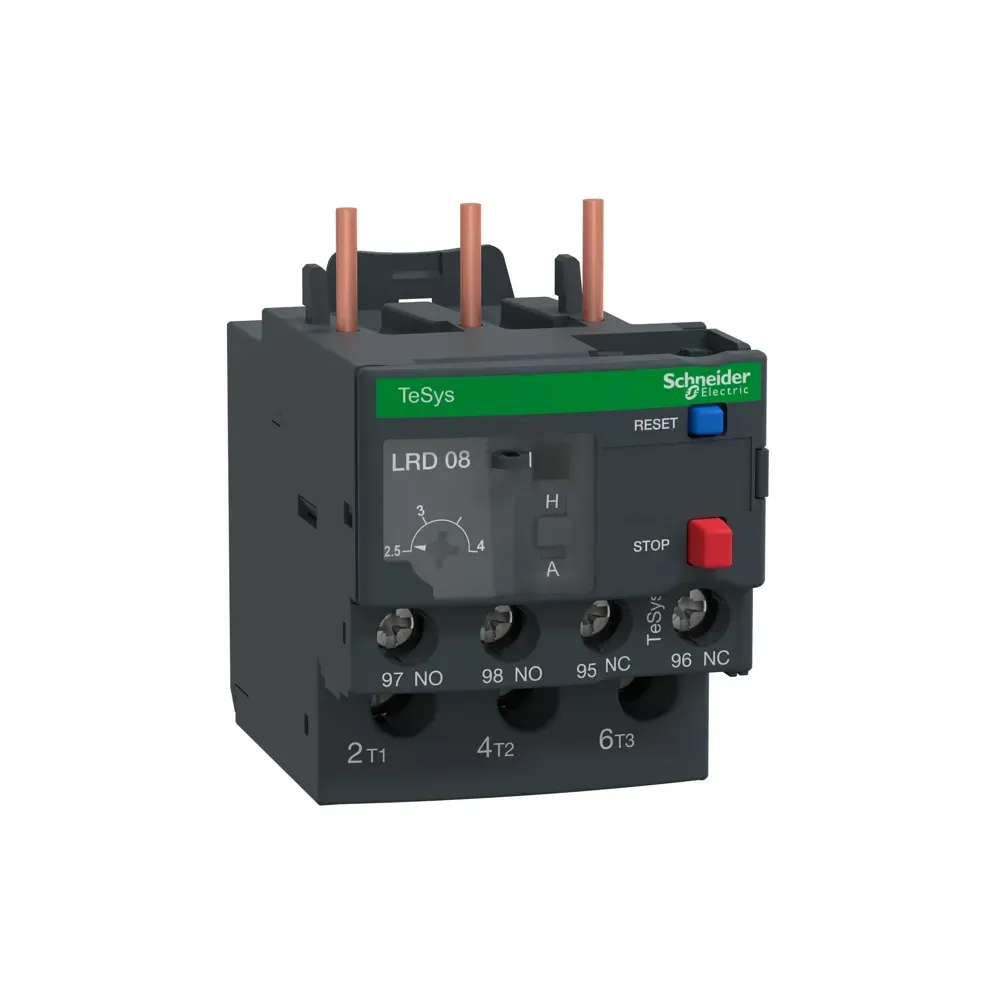

Schneider Electric 2.5-4A thermal overload relay LRD08 Class 10A

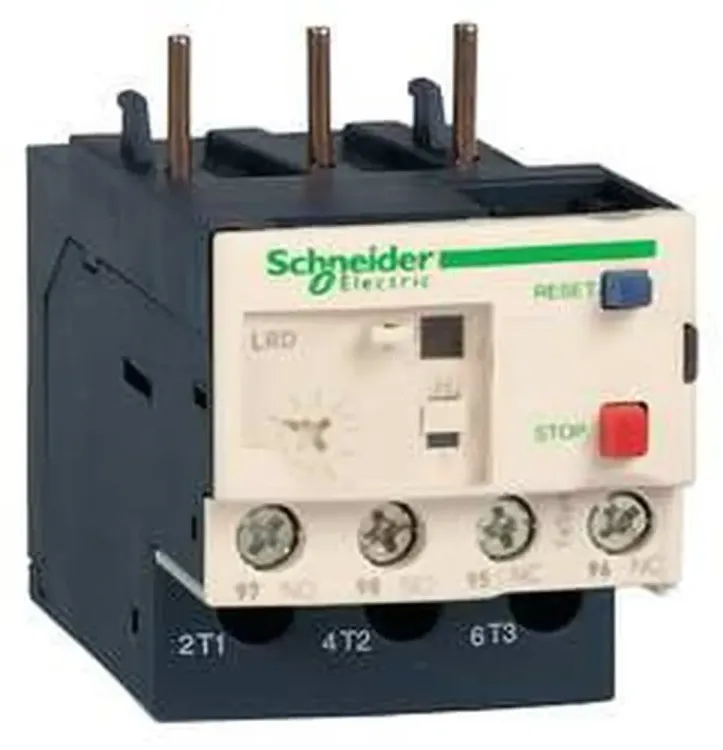

Photo is representative

Schneider Electric LRD08 Thermal Overload Relay 2.5-4A Class 10A

Schneider Electric 2.5–4 A thermal overload relay (LRD08) for motor protection in three-phase systems. Class 10A trip characteristics, rated to 690 V AC, 0…400 Hz. Manual reset via blue push-button (red = stop). Provides 1NO+1NC auxiliary contact, phase-failure sensitivity and ambient compensation. Direct mount under TeSys contactors including LC1D09, LC1D12, LC1D18, LC1D25, LC1D32 and LC1D38. Screw-clamp terminals, IP20 protection and temperature compensation −20…60 °C. Conforms to IEC 60947-4-1.

Product Information

Stock Code LRD08
MPN LRD08
GTIN 3389110346787
Stock status: In stock
More arriving soon
Price: £53.61
incl. VAT, 20% priced individually

Product Features
Current Range 2.5–4 A adjustable
Trip Class Class 10A thermal protection
Operating Voltage 690 V AC maximum, 0…400 Hz
Auxiliary Contacts 1NO+1NC
Reset Type Manual reset (blue push-button); red = stop
Mounting Direct mount under TeSys contactors (LC1D09/12/18/25/32/38)

Brand

Schneider Electric
