EPH Dual Channel Programmer

Please note: The images provided are for informational purposes only. While we strive for accuracy, some images may contain inaccuracies or may not perfectly represent the subject matter.

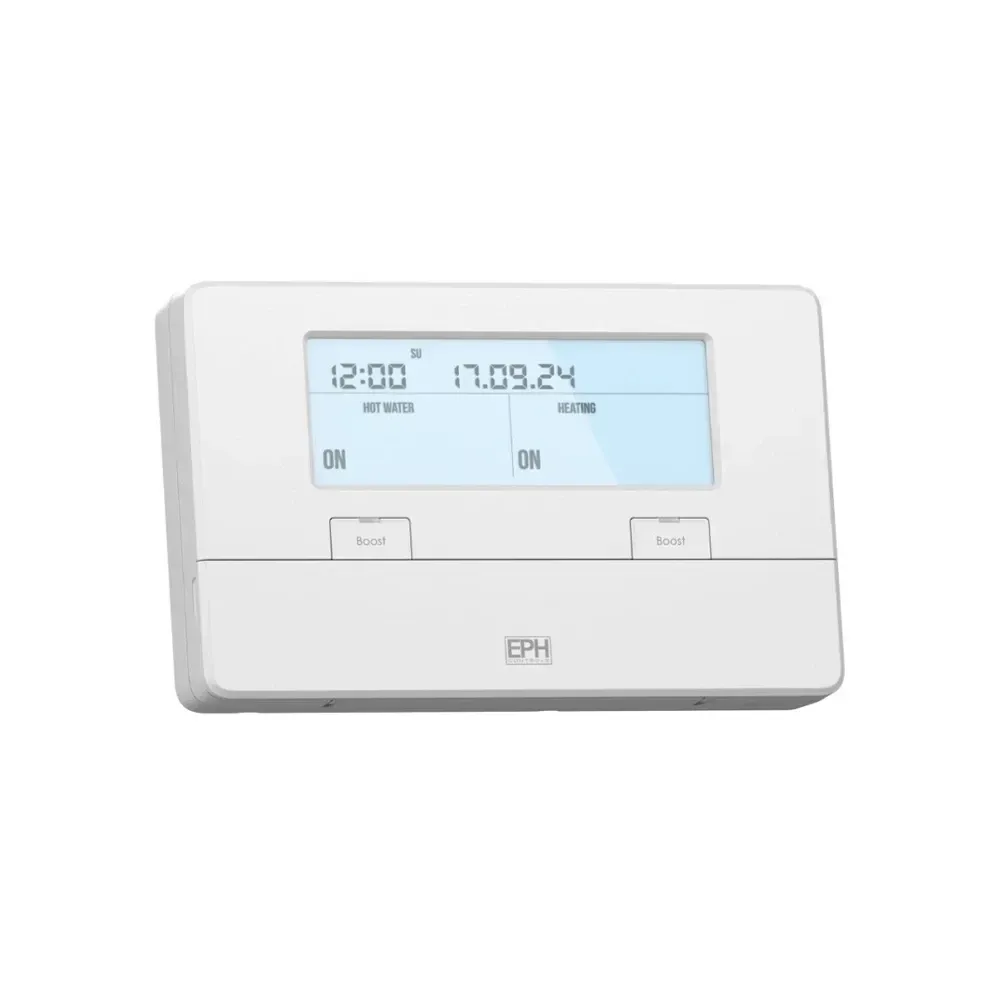

EPH Dual Channel Digital Programmer

The EPH Dual Channel Digital Programmer is a versatile 2 zone programmer with 3 operating modes 24h, 5 2 day & 7 day, designed for controlling 2 zones in a central heating system. It features a switch output of SPDT Volt Free, power supply of 230VAC, ambient temperature range of 0 to 50 deg C, dimensions of 161 x 100 x 31 mm, program memory of 5 years, temperature sensor NTC 100K, backlight in white, IP rating of IP20, battery powered by 3VDC Lithium LIR2032 & CR2032, backplate following British System Standard, pollution degree 2 with resistance to voltage surge up to 2000V, and software class A.

Stock Code R27
In stock
Price 53.97 £
incl. VAT, 20% priced individually

Depending on your delivery address, VAT may vary at Checkout.

Product Features

  • Battery

    3VDC Lithium LIR2032 & CR2032

  • Backlight

    White

  • Backplate

    British System Standard

  • IP Rating

    IP20

  • Dimensions

    161 x 100 x 31 mm

  • Power Supply

    230VAC

  • Switch Output

    SPDT Volt Free

  • Contact Rating

    3(1)A 230VAC

  • Program Memory

    5 Years

  • Software Class

    Class A

  • Pollution Degree

    2 (Resistance to voltage surge 2000V; as per EN60730)

  • Temperature Sensor

    NTC 100K

  • Ambient Temperature

    0 - 50 deg C

  • mpn

    R27

Documents

Brand

EPH Controls
