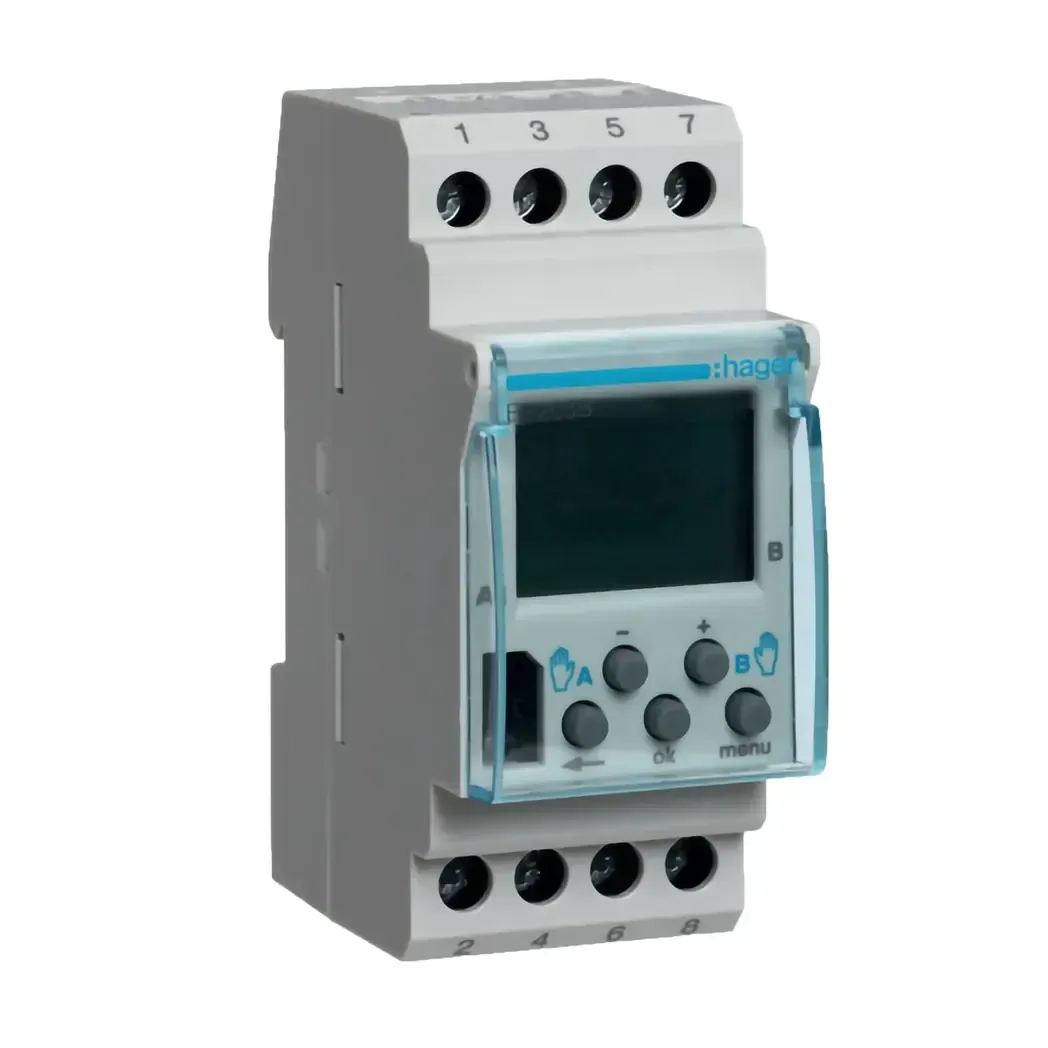

EG203 - 2 Channel Digital Time Switch Weekly Cycle 227986 Hager EG203B

Please note: The images provided are for informational purposes only. While we strive for accuracy, some images may contain inaccuracies or may not perfectly represent the subject matter.

2 Channel Digital Time Switch Weekly Cycle 227986 Hager EG203B

Control your electrical devices with precision using the 2 Channel Digital Time Switch Weekly Cycle 227986 Hager EG203B. With 2 changeover contacts and automatic Summer/Winter time change, this time switch offers a programming cycle of 2X7D and a working accuracy of 1. Suitable for a variety of applications with a total power loss of 4W and a breaking capacity of 16A 250V AC1.

Stock Code EG203
Out of stock

Product Features

  • Model

    2 Channel Digital Time Switch Weekly Cycle 227986 Hager EG203B

  • Frequency

    50/60 Hz

  • Fixing Mode

    Din-Rail

  • Supply Voltage

    230V AC

  • Working Accuracy

    1

  • Breaking Capacity

    16A 250V AC1

  • Programming Cycle

    2X7D

  • Number of Channels

    2

  • Type of Connection

    With Screw

  • Protection Index IP

    IP20

  • Number of Program Steps

    56

  • Shortest Switching Time

    1 mn

  • Total Power Loss under IN

    4 W

  • Rated Operational Voltage Ue

    230 V

  • Max. Power with Incandescent Lamps

    2300 W

Brand

Hager
