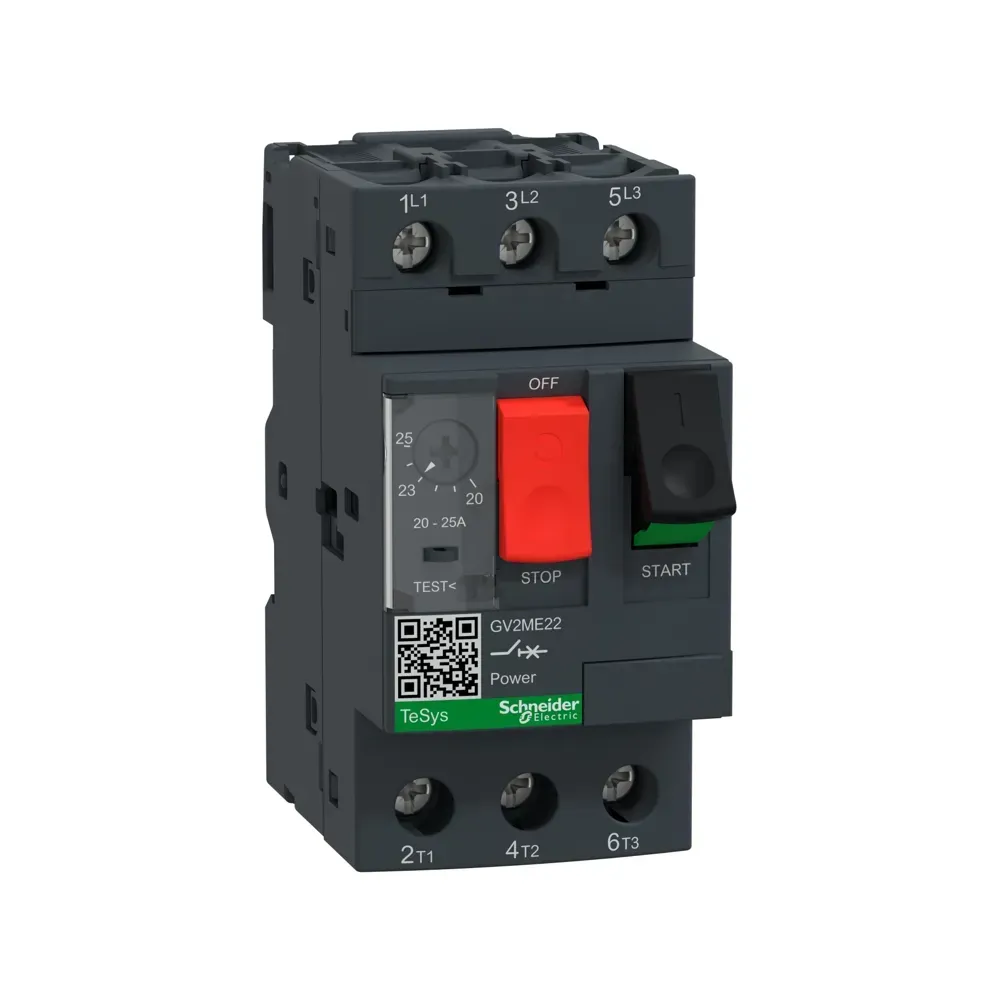

Schneider GV2ME22 TeSys Deca motor circuit breaker, 25A
3-pole Schneider GV2ME22 breaker for motor control

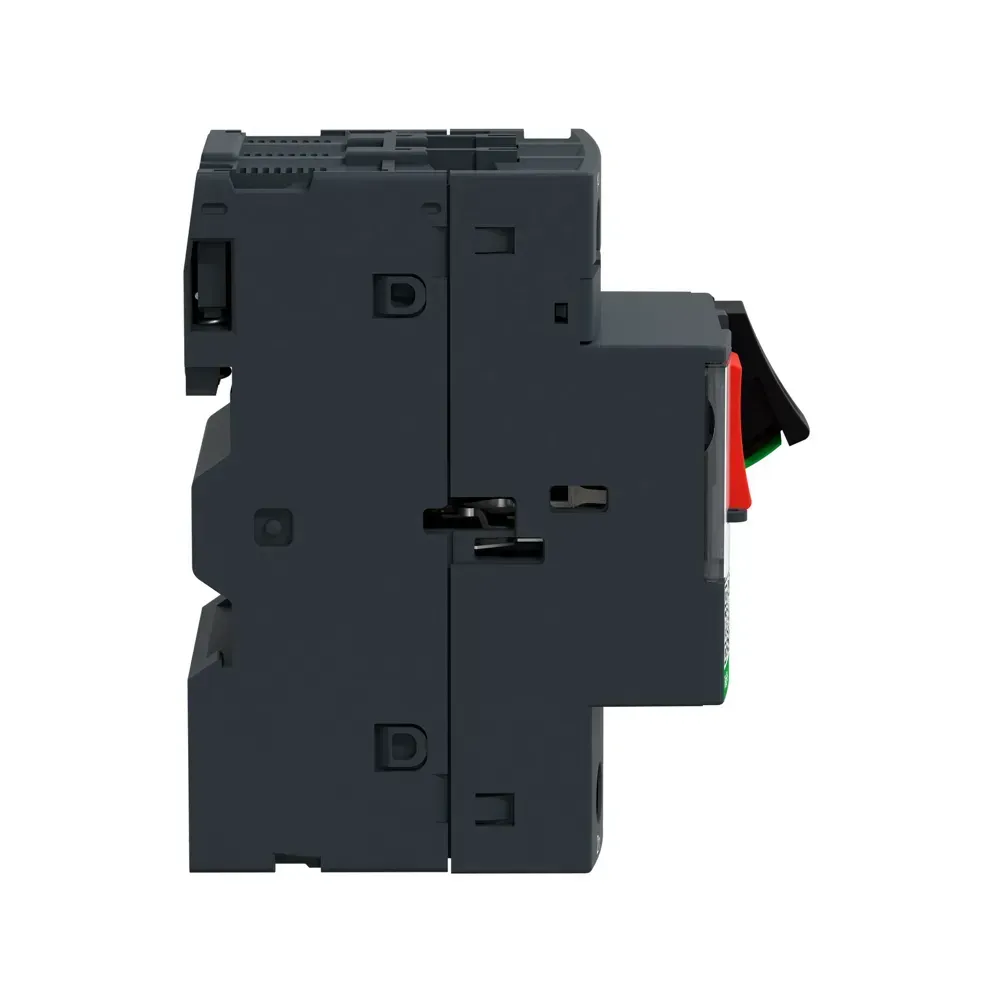

GV2ME22 thermal-magnetic motor protection breaker

Photo is representative

Schneider GV2ME22 TeSys Deca motor circuit breaker, 25A
3-pole Schneider GV2ME22 breaker for motor control
GV2ME22 thermal-magnetic motor protection breaker

20-25A Manual Starter GV2ME22 Telemecanique

The Schneider Electric TeSys Deca GV2ME22 is a 3-pole thermal-magnetic circuit breaker designed for reliable motor protection. This unit features a push-button control, a 20-25A thermal protection adjustment range, and screw clamp terminals. Ideal for AC motor applications, it offers robust protection and easy installation.

  • Provides thermal-magnetic protection
  • Rated for 25A with push-button control
  • Suitable for 11kW motors at 400-415V
Stock Code: GV2ME22

Online:

In stock
Price 122.65 £
incl. VAT, 20% priced individually

Product Features

Product Type Motor circuit breaker
Rated Current 25A
Poles 3P
Trip Unit Technology Thermal-magnetic
Control Type Push-button
Thermal Protection Adjustment Range 20...25A
Rated Operational Voltage 690 V AC
Mounting 35 mm DIN rail or panel mount
Breaking Capacity Up to 50kA at 240V AC
Phase Failure Sensitivity Yes

Documents

Brand

Schneider Electric
