20A 10x38mm aM Cylindrical Fuse Link 400V AC 440020

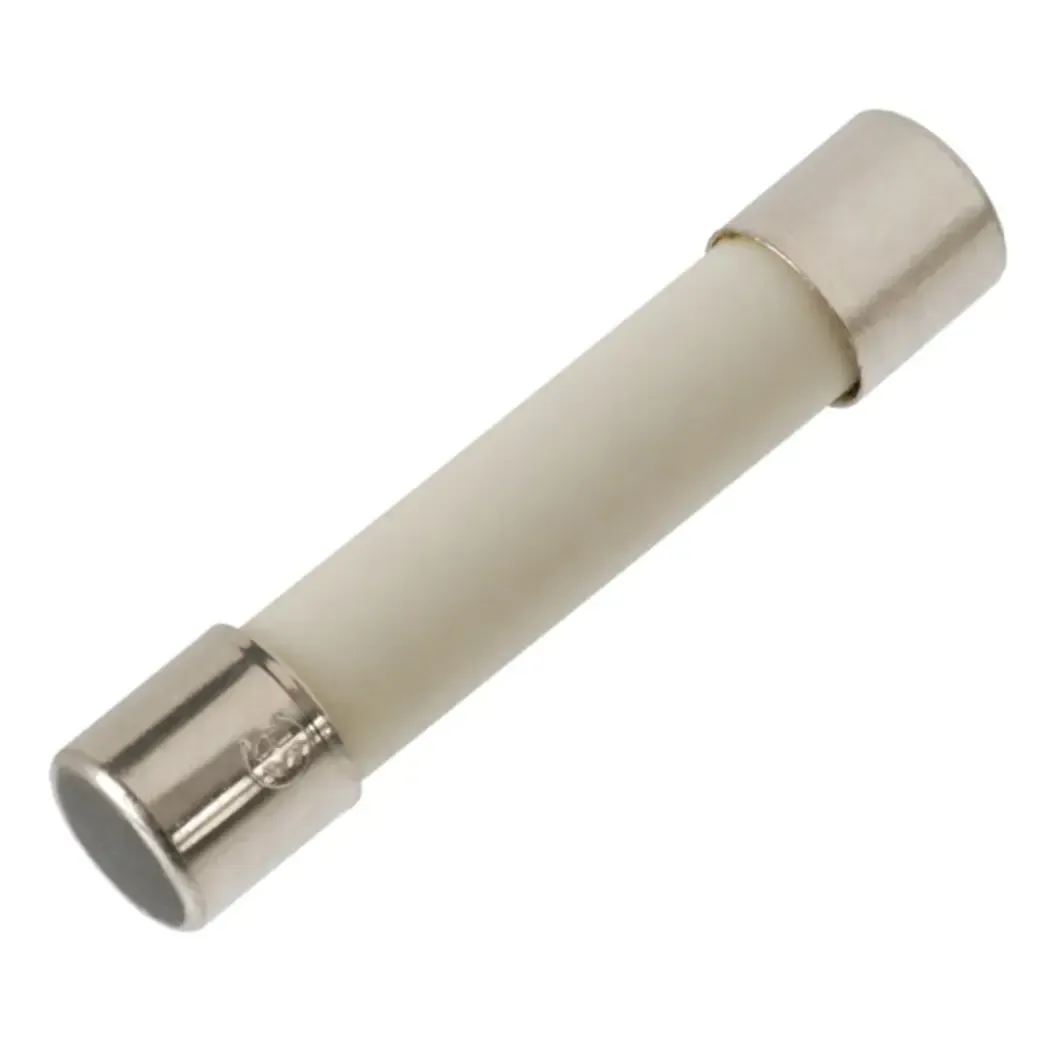

Photo is representative

20A 10x38mm aM Cylindrical Fuse Link 400V AC 440020

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 440020
GTIN —
Stock status: In stock

priced individually

Net price: £0.95

Gross price

£1.14

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

aM class cylindrical fuse link for short-circuit protection of motors, transformers and loads with high inrush currents. Ceramic body with silver-plated copper contacts. Fits standard 10x38mm fuse holders and carriers.

  • 20A rated, 400V AC
  • 120kA breaking capacity
  • Low I²t: prearcing 950 A²S
  • Operating temp: -40°C to +80°C
  • IEC/EN 60269-1, IEC/EN 60269-2 compliant
Specifications

Operating Class

aM

Rated Current

20 A

Rated Voltage

400V AC

Voltage Tolerance

+10%

Rated Breaking Capacity

120 kA

Rated Frequency

42…62 Hz

Size

10x38mm

Power Dissipation

0.95 W

Prearcing I²t

950 A²S

I²t at 400V

2488 A²S

I²t at 500V

3165 A²S

Operating Temperature

-40°C … 80°C

Storage Temperature

-40°C … 90°C

Body Material

Ceramic

Contact Material

Silver plated copper

Weight

8 g

Standards

IEC/EN 60269-1, IEC/EN 60269-2

RoHS Compliant

Yes
