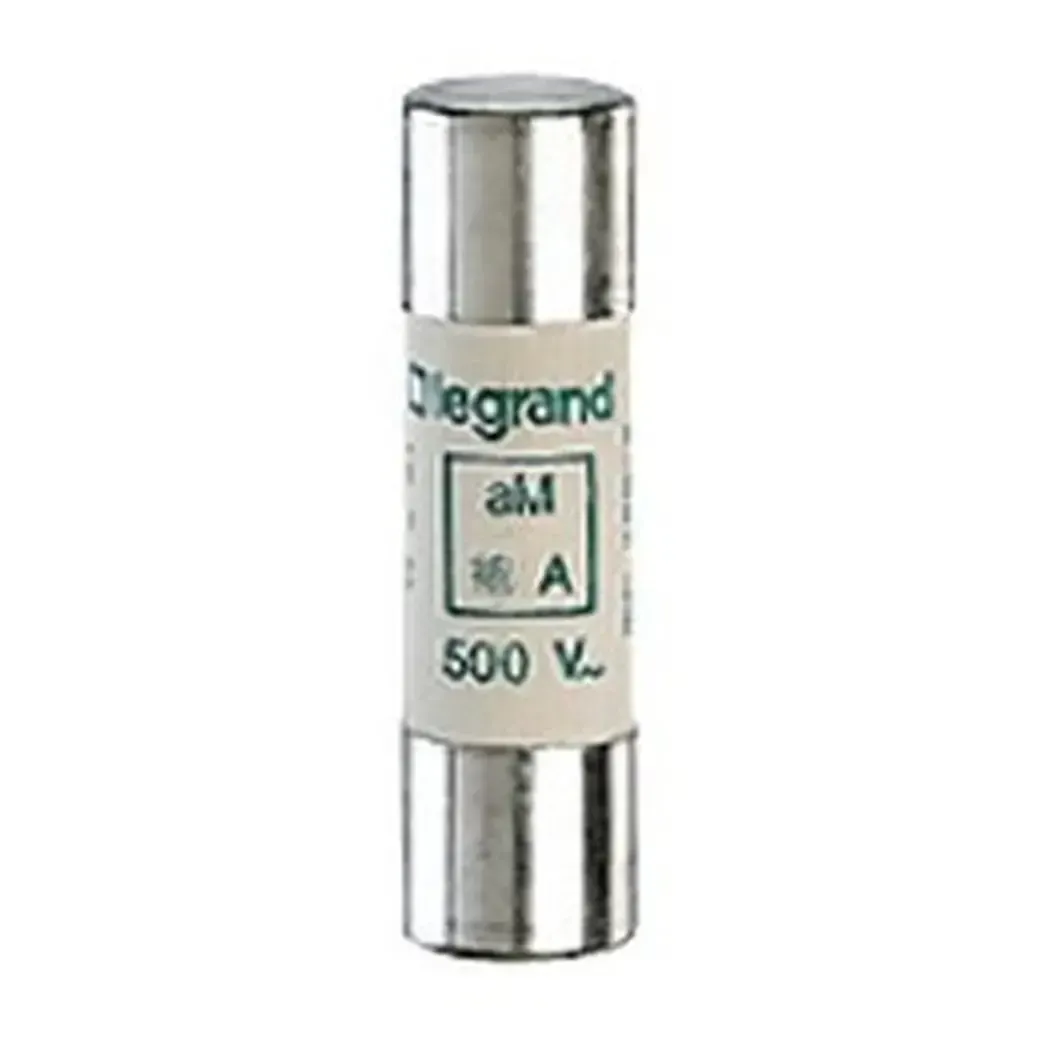

aM 20A 14x51mm Cylindrical Fuse Link 690V

Photo is representative

aM 20A 14x51mm Cylindrical Fuse Link 690V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 441020
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £3.48

Gross price

£4.18

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

aM class 14x51mm cylindrical fuse link rated at 20A. Designed for motor circuits, transformers, and other loads with high inrush currents where gG fuses won’t hold.

Ceramic body with silver-plated copper contacts. Fits standard 14x51mm fuse carriers and holders.

  • Rated voltage: 690V AC (+5%), 500V AC (+10%), 400V AC (+10%)
  • Breaking capacity: 80kA at 690V, 120kA at 500V and 400V
  • Operating class: aM
  • Frequency: 42–62Hz
  • Standards: IEC/EN 60269-1, IEC/EN 60269-2
Specifications

Rated Current

20A

Rated Voltage

690V +5%, 500V +10%, 400V +10%

Operating Class

aM

Breaking Capacity at 690V

80kA

Breaking Capacity at 500V

120kA

Breaking Capacity at 400V

120kA

Rated Frequency

42–62Hz

Operating Temperature

-40°C … 80°C

Storage Temperature

-40°C … 90°C

Power Dissipation

1.23W

Prearcing I²t

950A²S

Size

14x51mm

Weight

18g

Standards

IEC/EN 60269-1, IEC/EN 60269-2
