aM Cylindrical Fuse Link 20A 22x58 500V AC IEC60269

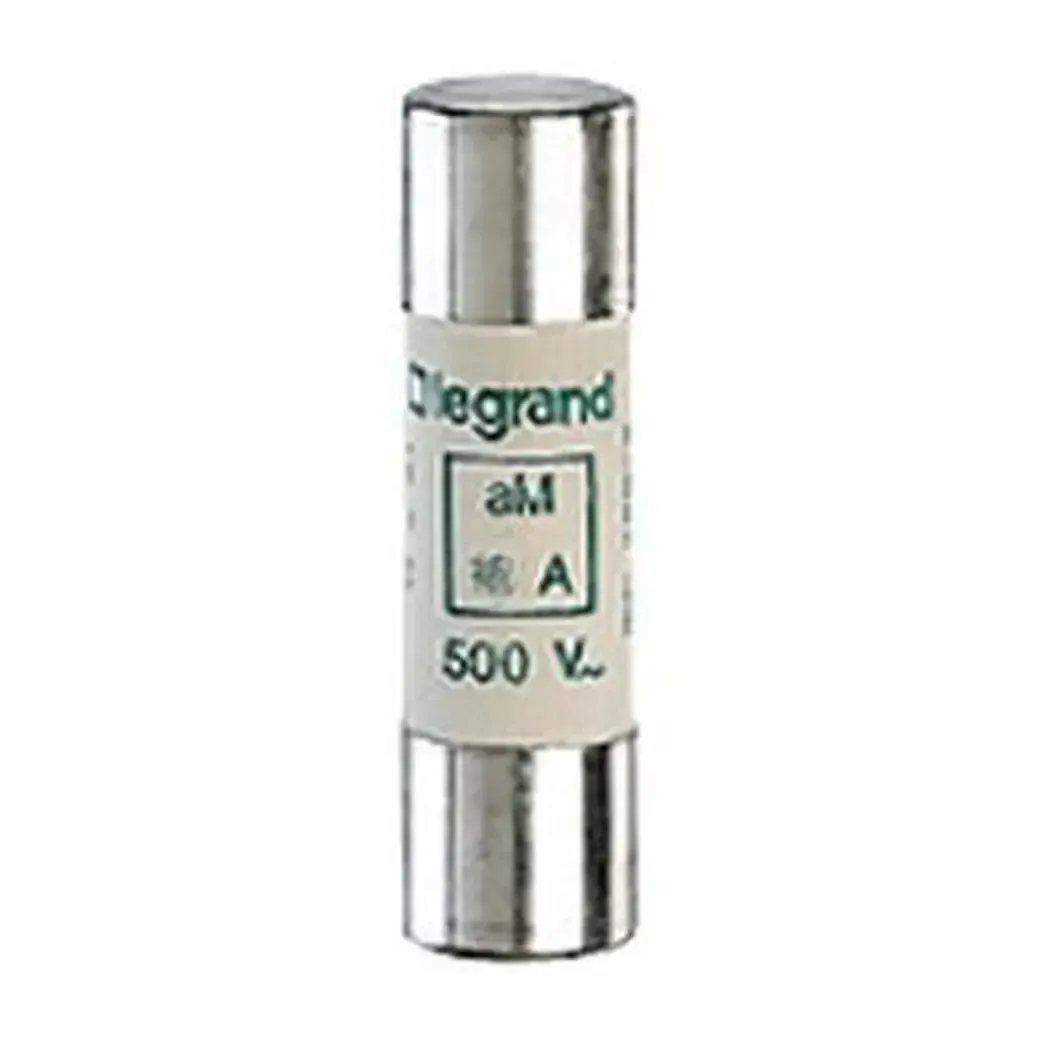

Photo is representative

aM Cylindrical Fuse Link 20A 22x58 500V AC IEC60269

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 442020
GTIN —
Stock status: In stock

priced individually

Net price: £2.84

Gross price

£3.41

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Class aM cylindrical fuse link, 22x58mm, rated 20A at 500V AC. Suited to motor and transformer circuits where high inrush currents rule out gG fuses.

Good current limiting capability keeps I²t low — helps protect downstream switchgear on fault. Ceramic body with silver-plated copper contacts.

  • Rated voltage: 500V AC
  • Breaking capacity: 120kA @ 500V
  • Operating class: aM
  • Dimensions: 22.2 x 58mm
  • Standards: IEC/EN 60269-1, IEC/EN 60269-2
Specifications

Rated Current

20A

Rated Voltage

500V AC

Operating Class

aM

Breaking Capacity

120kA @ 500V

Rated Frequency

42…62Hz

Dimensions

22.2 x 58mm

Operating Temperature

-40°C to 80°C

Storage Temperature

-40°C to 90°C

Power Dissipation

1.29W

Prearcing I²t

950 A²S

I²t @ 500V

3165 A²S

I²t @ 400V

2488 A²S

Body Material

Ceramic with silver-plated copper contacts

Standards

IEC/EN 60269-1, IEC/EN 60269-2
