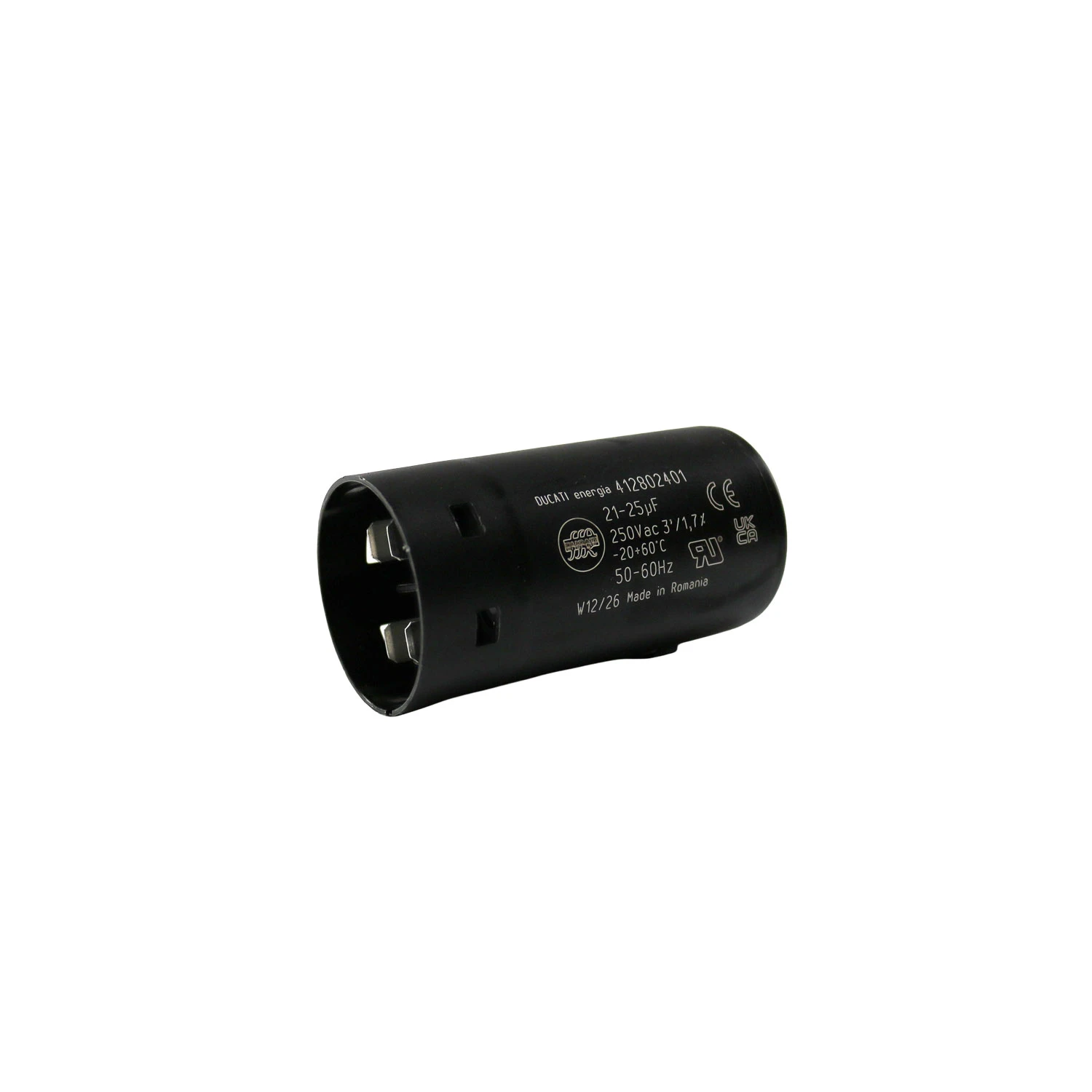

Photo is representative

21-25 µF Motor Start Capacitor 250V AC - Faston 6.3 mm Terminals

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 412802401
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £10.10

Gross price

£12.13

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

21-25 µF motor start (electrolytic) capacitor rated at 250 V AC for single‑phase induction motors. Designed for short‑duration starting duty and must be disconnected from the circuit once the motor reaches running speed.

  • Capacitance: 21-25 µF, ±10% tolerance
  • Rated voltage: 250 V AC, 50–60 Hz
  • Intermittent duty: 3 s ON / 3 min OFF (N=20 insertions/hour)
  • Terminals: Faston 6.3 mm double‑tag, 16 mm spacing
  • Case: Moulded self‑extinguishing thermoplastic; Ø36.5 mm × H68.5 mm
  • Operating temperature: -20°C to +60°C

Always verify the motor nameplate for correct µF and voltage before replacement. Isolate power and fully discharge the capacitor (recommended: 20 kΩ resistor across terminals) before handling.

Specifications

Capacitance

21-25 µF

Tolerance

±10%

Rated Voltage

250 V AC

Frequency

50-60 Hz

Dissipation Factor

Typical 6%, Max 10%

Duty Cycle

Intermittent - 3 s ON / 3 min OFF (N=20 insertions/hour)

Terminal Type

Faston 6.3 mm double‑tag

Terminal Spacing (P)

16 mm

Case

Moulded self‑extinguishing thermoplastic

Dimensions (D × H)

Ø36.5 mm × 68.5 mm

Mounting

Without stud

Operating Temperature

-20°C to +60°C

Construction

Etched aluminium foil (electrolytic)

Certification

UL recognised (file E347921)
