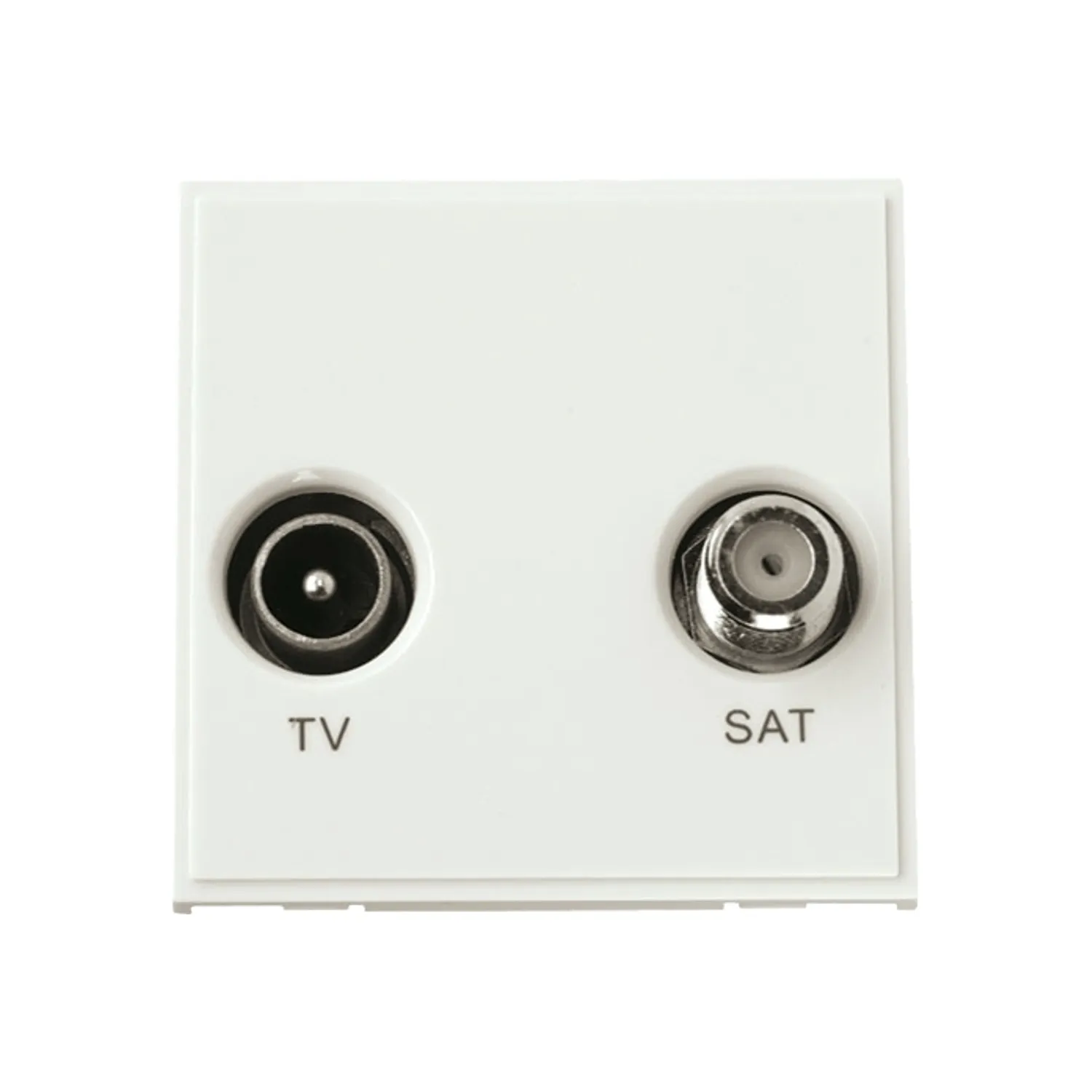

Click New Media diplexed TV and satellite module in polar white, 50x50mm euro grid format with dual coaxial connections

Photo is representative

Click New Media Diplexed TV and Satellite Module White

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code MM425WH
GTIN —
Stock status: In stock

priced individually

Net price: £14.79

Gross price

£17.75

The Click New Media Diplexed TV and Satellite Module provides a space-efficient solution for combining terrestrial TV and satellite connections in euro grid systems. This non-isolated diplexed module enables two-way signal transmission through a single cable entry point, suitable for installations using a multiswitch or loft box distribution system. The 50x50mm white module fits standard euro grid plates and complies with IP20 ingress protection.

This shielded module supports satellite frequencies from 950-2300MHz and TV frequencies of 5-65MHz and 470-862MHz. The unit measures 50mm wide by 50mm high with a depth of 31.3mm (37.7mm overall), requiring a minimum back box depth of 35mm for standard installation or 47mm when used with flat plates. Screw terminals with brass construction provide secure cable termination. The module operates across temperatures from -5°C to +40°C and features polycarbonate cover construction with aluminium/steel housing for signal integrity.

The module integrates with all euro grid plate systems regardless of brand, allowing flexible configuration within Click New Media ranges or mixed installations. Not compatible with Sky Q systems. The module carries CE and UK conformity marking with a 2-year manufacturer warranty. Suitable for domestic and light commercial installations where combined TV and satellite distribution is required through modular wiring systems.

Specifications

Module Type

Diplexed TV and Satellite

Module Size

50x50mm

Satellite Frequency

950-2300MHz

TV Frequency

5-65MHz & 470-862MHz

Signal Transmission

Two-way (Non-Isolated)

Termination

Screw

Min Back Box Depth

35mm (47mm for Flat Plate)

Dimensions

50x50x31.3mm

Overall Depth

37.7mm

IP Rating

IP20

Shielded

Yes

Color

Polar White

Cover Material

Polycarbonate

Housing Material

Aluminium/Steel

Operating Temperature

-5°C to +40°C

Warranty

2 Years

What's included

1x Diplexed TV and Satellite Module

Frequently asked questions

Will this module fit other brand euro grid plates?

Yes, euro modules are interchangeable across brands. This 50x50mm module fits any standard euro grid plate system, allowing you to mix Click New Media modules with plates from BG, MK, Knightsbridge, and other manufacturers.

What depth back box do I need for installation?

A minimum back box depth of 35mm is required for standard installations. If you're using flat plate grids, you'll need 47mm minimum depth to accommodate the module's overall depth of 37.7mm and allow proper cable management.

What equipment is required to use this diplexed module?

This module requires a multiswitch or loft box for proper operation. The diplexed design allows both TV and satellite signals to share a single cable, but the signals must be combined upstream by appropriate distribution equipment. Note: This module is not compatible with Sky Q systems.

What does 'two-way signal transmission' mean?

The non-isolated design enables bidirectional communication between the module and the distribution system. This allows for interactive services that require return path signaling, such as requesting video-on-demand or sending viewing data back through the satellite system.

Can I use this module for standard TV aerial only?

While technically possible, this diplexed module is designed for installations requiring both TV and satellite signals. If you only need terrestrial TV connection, a standard TV coax module would be more cost-effective and simpler to install.
