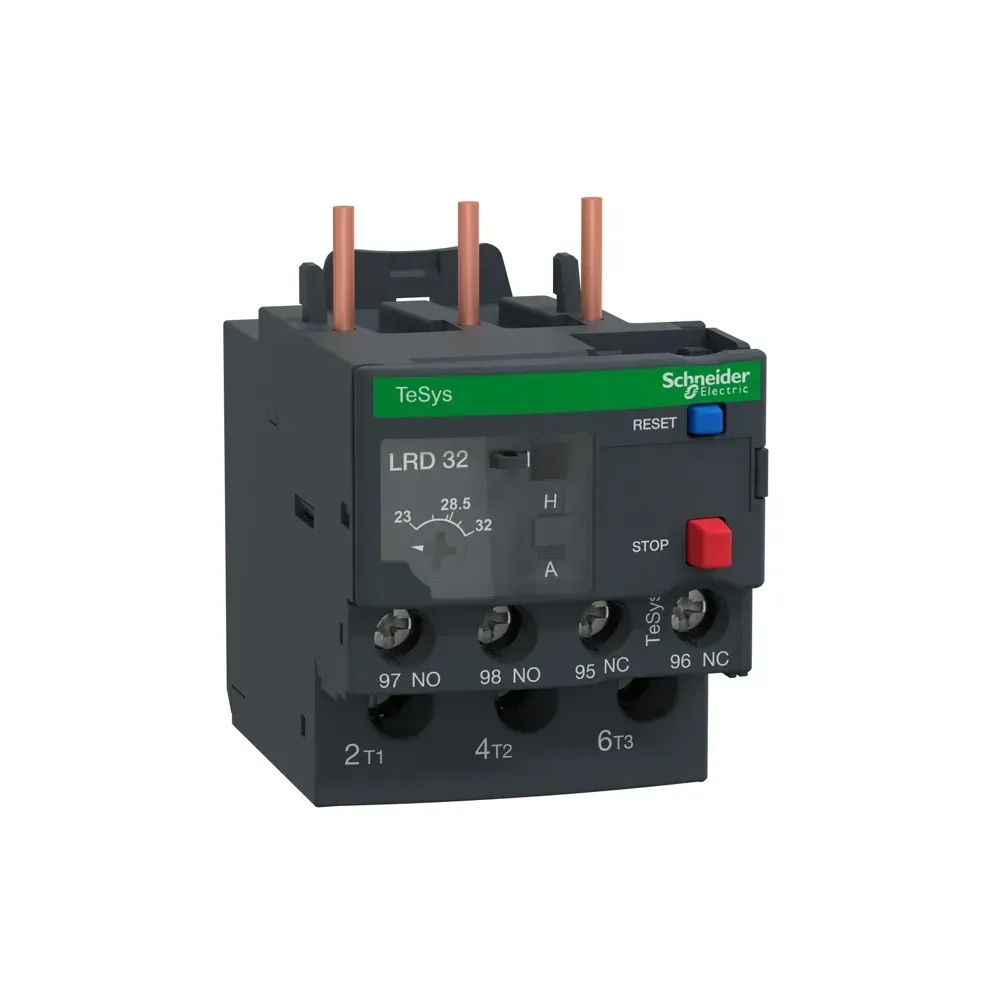

Schneider Electric LRD32 23-32A thermal overload relay Class 10A

Photo is representative

Schneider Electric LRD32 Thermal Overload Relay 23-32A Class 10A

Schneider Electric LRD32 23…32 A thermal overload relay (LRD32), TeSys Deca series, for motor protection in starter assemblies. Class 10A trip characteristics with manual reset (blue push-button) and red stop. Rated operational voltage up to 690 V AC, 0–400 Hz. Auxiliary contact composition 1NO+1NC for signalling and control. Direct mount under TeSys contactors (LC1D25, LC1D32, LC1D38) with screw-clamp terminals and ambient compensation (-20…60 °C). Tripping threshold 1.14 ±0.06 Ir and IP20 protection for industrial installations.

Product Information

Stock Code LRD32
MPN LRD32
GTIN 3389110346855
Stock status: In stock
Price: £82.43
incl. VAT, 20% priced individually

Product Features

Current Range 23…32 A adjustable
Trip Class Class 10A thermal protection
Operating Voltage 690 V AC maximum, 0–400 Hz
Auxiliary Contacts 1NO+1NC configuration
Reset Type Manual reset (blue push-button); red stop
Mounting Direct mount under TeSys contactors (LC1D25/LC1D32/LC1D38)

Brand

Schneider Electric
