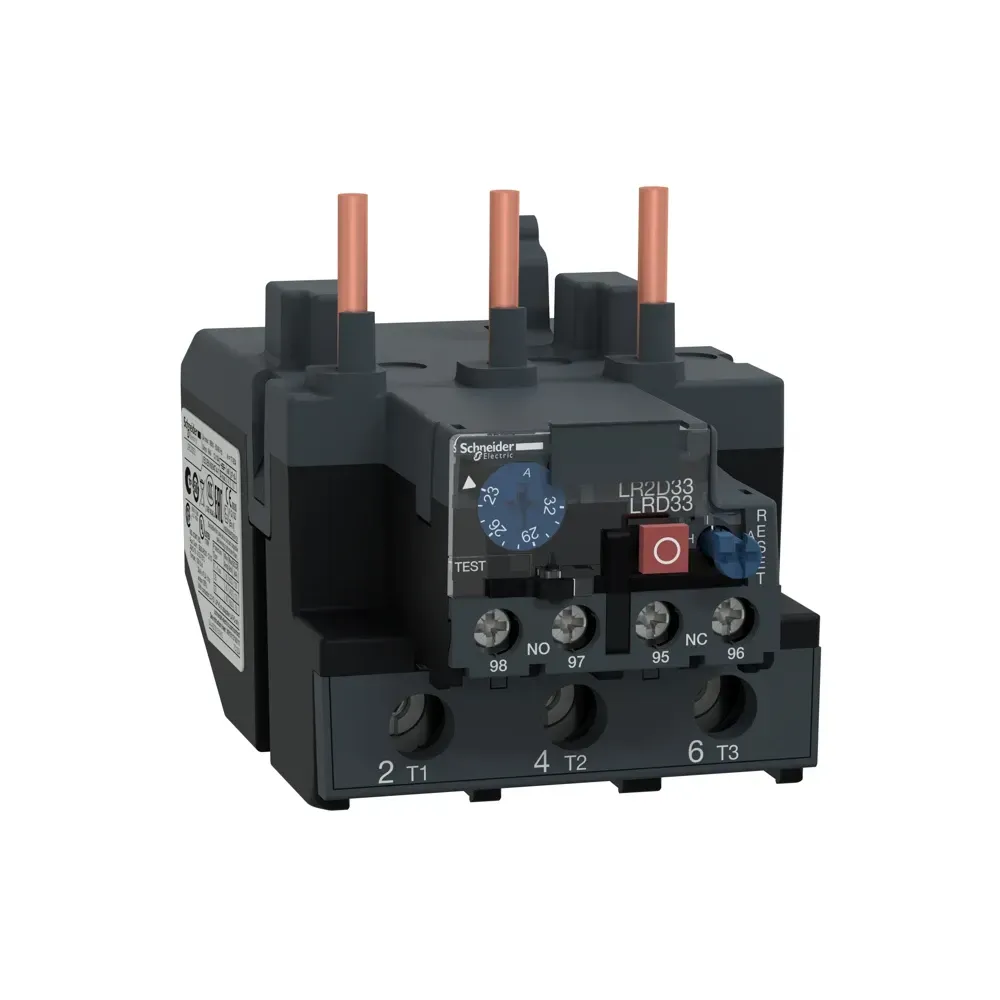

Schneider Electric 23-32A thermal overload relay LRD3353 Class 10A

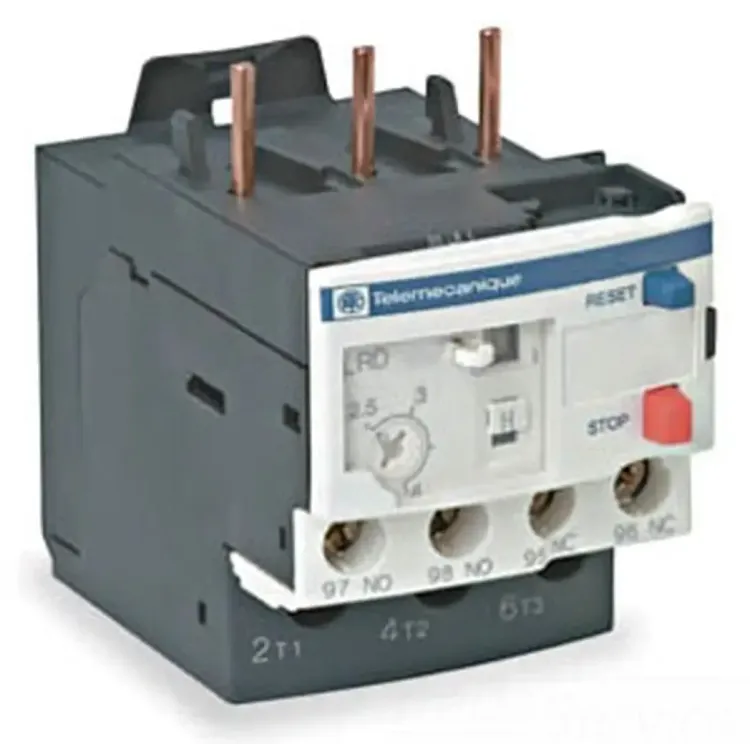

Photo is representative

Schneider Electric LRD3353 Thermal Overload Relay 23-32A Class 10A

Schneider Electric 23–32 A thermal overload relay (LRD3353), TeSys Deca series, designed for motor protection. Class 10A trip characteristics with manual reset (blue push-button) and a red stop push‑button. Rated for up to 1000 V AC and fitted with 1NO+1NC auxiliary contacts, phase-failure sensitivity and ambient compensation (-20…60 °C). Direct-mount compatible with TeSys contactors (LC1D80, LC1D95) and suitable for plate or DIN-rail mounting with accessories. Screw-clamp terminals; IEC 60947-4-1 compliant.

Product Information

Stock Code LRD3353
MPN LRD3353
GTIN 3389119215480
Stock status: 5 available
Price: £104.14
incl. VAT, 20% priced individually

Product Features

Current Range 23-32A adjustable
Trip Class Class 10A thermal protection
Operating Voltage 1000 V AC maximum (power circuit)
Auxiliary Contacts 1NO+1NC configuration
Reset Type Manual reset (blue push-button)
Mounting Direct mount to TeSys contactors (LC1D80, LC1D95); plate or DIN-rail with accessories

Brand

Schneider Electric
