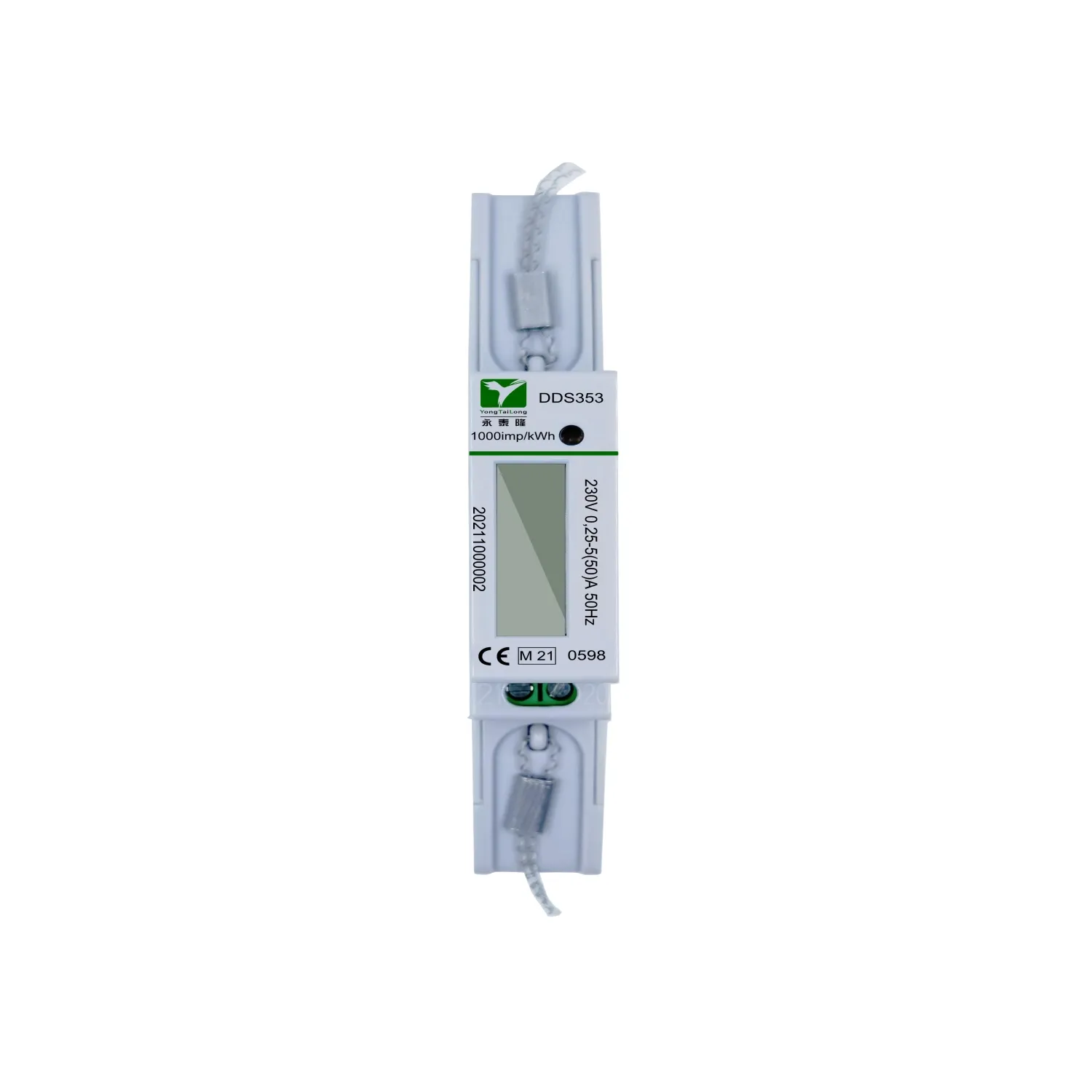

230V Single Phase 5(50)A Energy Meter | MID Approved | DIN-Rail 1M
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
Stock Code
DDS353
GTIN
—
Stock status:
In stock
priced individually
More arriving soon
Net price: £32.99
Gross price
£39.59
230V Single Phase DIN-Rail Energy Meter 50A direct connection single phase energy meter with Class B accuracy per EN50470-1⁄3. MID certified for revenue metering and tenant billing applications.
Key Specifications
- Direct connection rated 0.25-5(50)A at 230V
- Measures import + export energy (total kWh)
- 5+2 digit LCD display (99999.99 kWh)
- S0 pulse output: 1000 imp/kWh, 80ms pulse width
- DIN-rail mounting: 1 module width (18mm)
Construction
- Compact dimensions: 45 × 116 × 63mm (W×D×H)
- Operating temperature: -25°C to +55°C
- Power consumption: <10VA / <1W
- Start current: 0.004 Ib
- LED pulse indication for energy measurement
Compliance
- MID 2014/32/EU certified by SGS UK
- EN50470-1⁄3 standard compliance
- Sealed case construction
- 18-month warranty with intact lead seal
Applications: Sub-metering, tenant billing, energy monitoring in distribution boards.
