Schneider Electric Contactor Coil LXD1B7

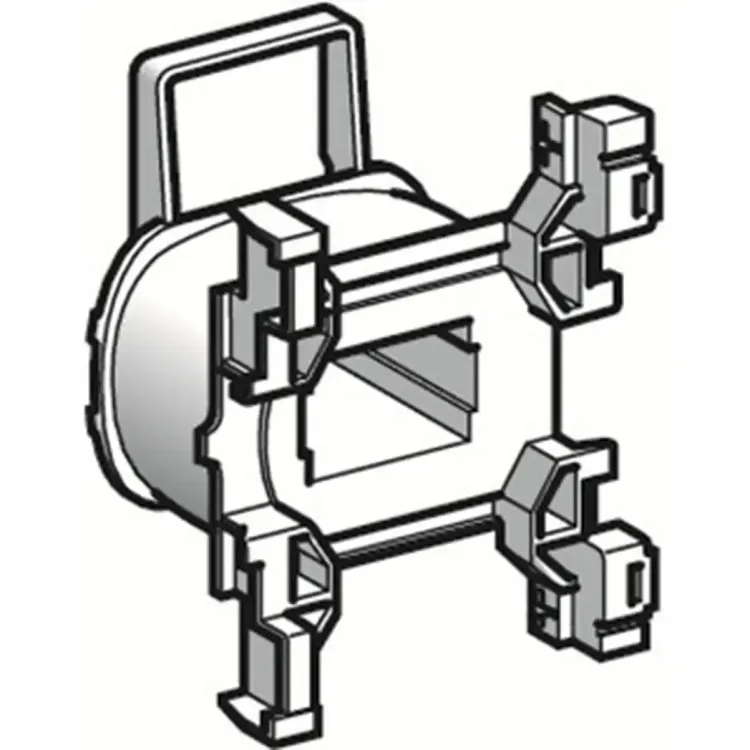

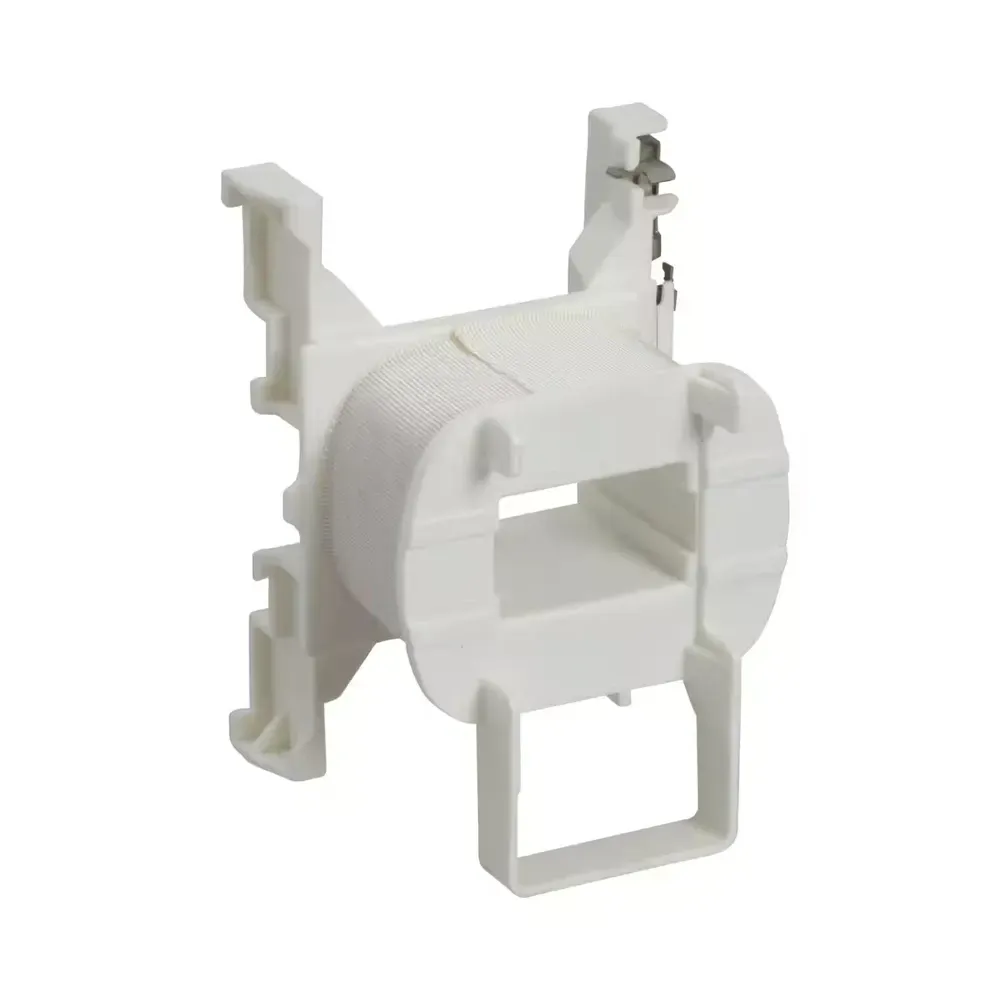

Photo is representative

Schneider Contactor Coil 24V AC for LC1D09...D38 | TeSys Deca | 9–38A

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code LXD1B7
GTIN —
Stock status: In stock

priced individually

Net price: £18.26

Gross price

£21.92

The Schneider TeSys Deca contactor coil provides reliable 24V AC 50/60Hz control for LC1D09…D38 contactors, supporting 9–38A operation. Engineered for high mechanical durability and efficient performance, it features a robust control circuit, wide voltage tolerance, and compatibility with various TeSys models. This coil is designed to withstand demanding switching cycles in professional environments, with efficient heat dissipation for stable operation. Ideal for panel builders and maintenance

Specifications

Brand

Schneider

Product Type

Contactor coil

Voltage

24V AC 50/60Hz

Compatibility

LC1D09...D38, LC1DT20...DT40

Mechanical Durability

15 million cycles

Maximum Operating Rate

3600 cycles/hour at 60°C

Coil Technology

Without built-in suppressor module

Inrush Power

70 VA (50/60Hz, cos phi 0.75 at 20°C)

Hold-in Power

7–7.5 VA (50/60Hz, cos phi 0.3 at 20°C)

Operating Temperature

-5 to 60°C

Frequently asked questions

What contactor models are compatible with this coil?

This Schneider 24V AC coil is specifically compatible with LC1D09...D38 and LC1DT20...DT40 TeSys contactors, supporting applications from 9 to 38 Amps.

What are the operating limits of the control circuit voltage?

The voltage drop-out range is 0.3...0.6 Uc at 50/60Hz (<60°C), and operational ranges are 0.8–1.1 Uc at 50Hz and 0.85–1.1 Uc at 60Hz (<60°C).

What is the mechanical durability of the coil?

The mechanical durability of the Schneider TeSys Deca contactor coil is rated at 15 million operating cycles, ensuring long service life in demanding applications.

Does this coil have a built-in suppressor module?

No, this coil technology does not include a built-in suppressor module, making it suitable for applications requiring integrated or external protection devices.

What is the recommended ambient temperature for operation?

The recommended ambient air temperature for operation is between -5°C and 60°C, ensuring reliable performance in most industrial environments.
