25A 14x51mm aM Cylindrical Fuse Link 690V

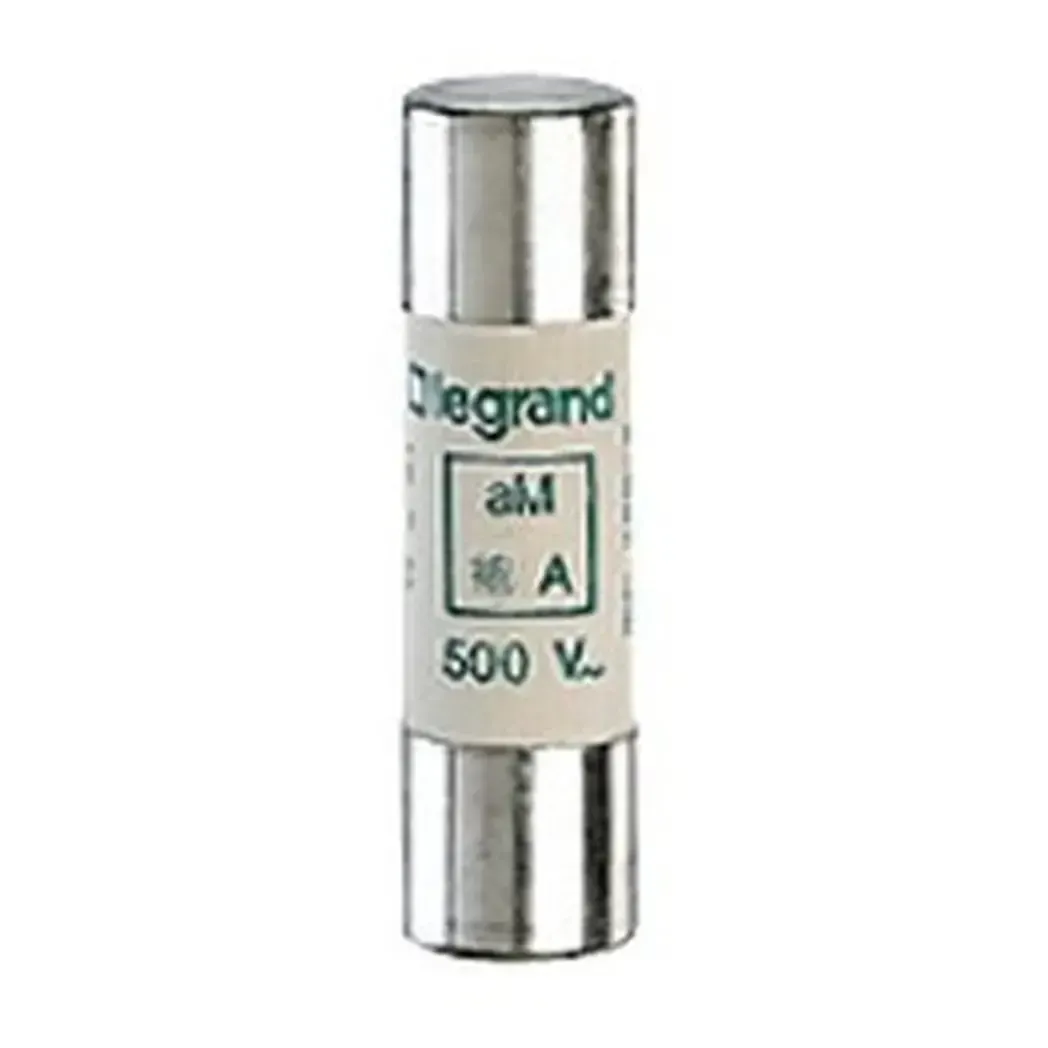

Photo is representative

25A 14x51mm aM Cylindrical Fuse Link 690V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 441025
GTIN —
Stock status: In stock

priced individually

Net price: £1.37

Gross price

£1.64

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

aM class cylindrical fuse link, 14x51mm, rated 25A. Suited to motor circuits, transformer protection, and any load with high inrush where standard gG won’t hold.

Provides short-circuit protection with current limiting and low I²t values. 80kA breaking capacity at 690V, 120kA at 500V/400V.

  • Rated voltage: 690V +5% / 500V +10% / 400V +10%
  • Breaking capacity: 80kA at 690V, 120kA at 500V/400V
  • Prearcing I²t: 1300 A²S
  • Ceramic body, silver-plated copper contacts
  • IEC/EN 60269-1, IEC/EN 60269-2
Specifications

Operating Class

aM

Rated Current

25A

Rated Voltage

690V +5% / 500V +10% / 400V +10%

Breaking Capacity at 690V

80kA

Breaking Capacity at 500V/400V

120kA

Rated Frequency

42…62Hz

Size

14x51mm

Diameter

14.3mm

Length

51mm

Weight

18g

Prearcing I²t

1300 A²S

I²t at 690V

8000 A²S

Operating Temperature

-40°C to 80°C

Standards

IEC/EN 60269-1, IEC/EN 60269-2
