3 Core 10mm² NYM-J PVC Wiring Cable 300 500V

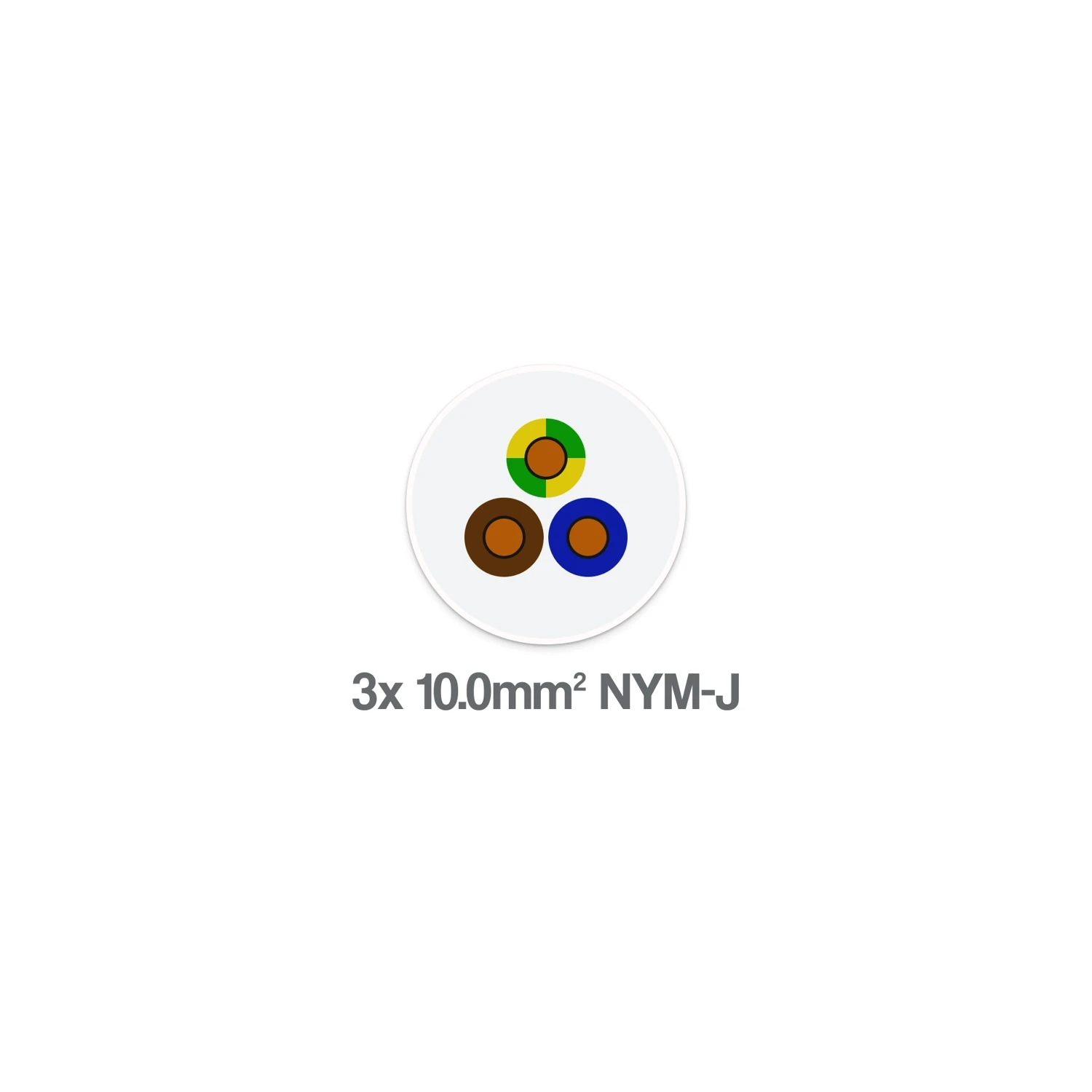

Photo is representative

3 Core 10mm² NYM-J PVC Wiring Cable 300 500V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 310NYM
GTIN
Stock status: Out of stock

priced per meter

Net price: £6.86

Gross price

£8.24

3 core 10mm² NYM-J PVC wiring cable for fixed indoor and outdoor installations — dry, moist or wet areas including under plaster and in concrete. Not suitable for direct sunlight exposure.

Solid Class 1 copper conductors, PVC insulation and sheath to IEC 60332-1-2. Brown, blue, and green/yellow core identification.

  • Voltage rating: 300/500V
  • Current carrying capacity: 61A
  • Operating temp: -30°C to +70°C (install above 0°C)
  • Voltage drop (3-phase AC): 4 mV/A/m
  • DC resistance at 20°C: 1.83 Ω/km
Specifications

Cable Type

NYM-J PVC Wiring Cable

Number of Cores

3

Conductor Size

10 mm²

Stranding

1/3.56 mm

Conductor Material

Solid copper (Class 1)

Insulation Material

PVC to IEC 60332-1-2

Sheath Material

PVC to IEC 60332-1-2

Voltage Rating

300/500V

Current Carrying Capacity

61A

Operating Temperature

-30°C to +70°C

Installation Temperature Minimum

0°C

DC Resistance at 20°C

1.83 Ω/km

AC Resistance at 70°C

10 Ω/km

Inductance

0.278 mH/km

Voltage Drop (3-phase AC)

4 mV/A/m

Voltage Drop (single-phase AC)

4.7 mV/A/m

Core Identification

Brown, Blue, Green/Yellow

Weight

510 kg/km

Standards

BS EN 50265-2-1, IEC 60502, VDE 0250
