3 Core 6mm SYL-Flex Galvanised Steel Wire Braid Screened PVC Sheath 300 500V Clear

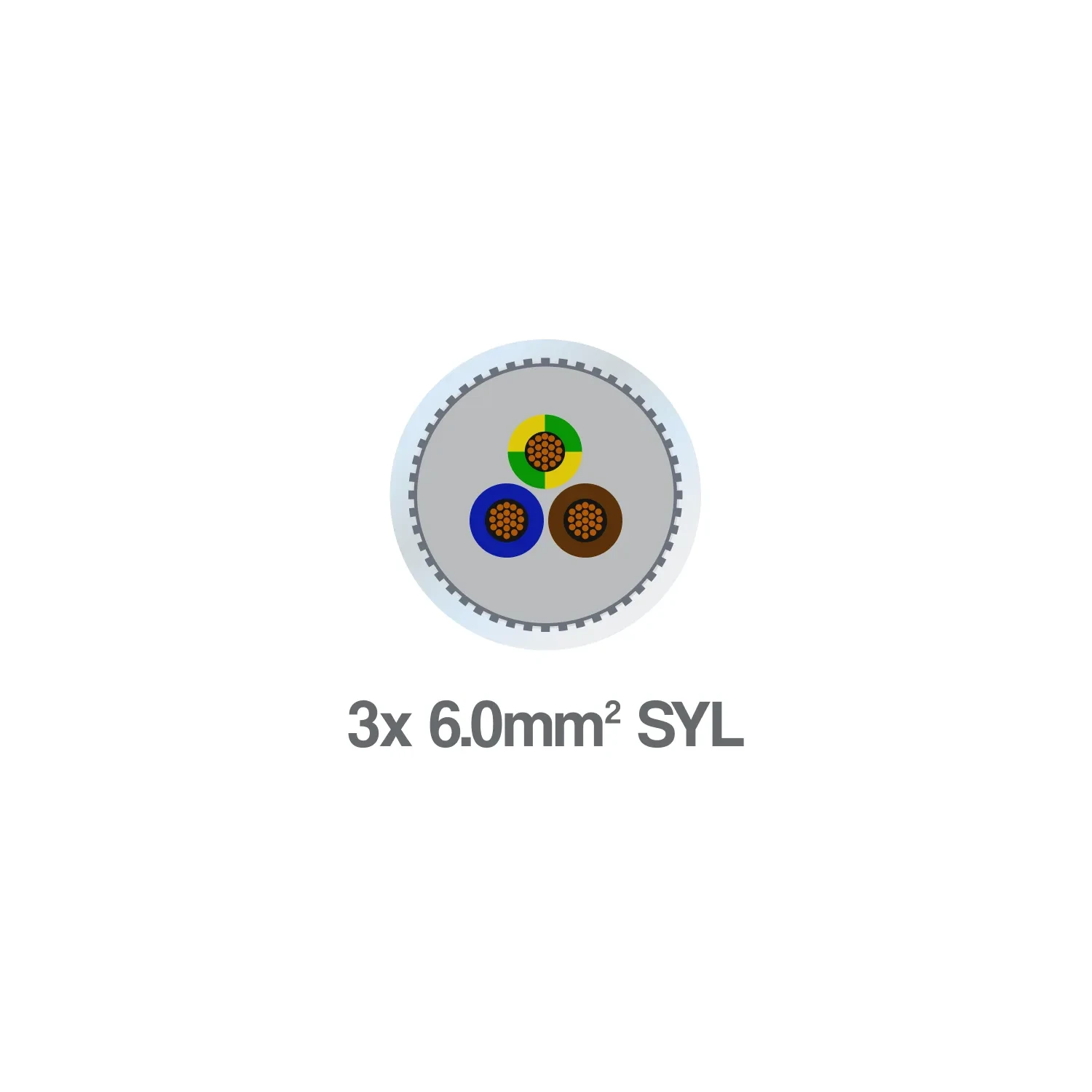

Photo is representative

3 Core 6mm SYL-Flex Galvanised Steel Wire Braid Screened PVC Sheath 300 500V Clear

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 36SYL
GTIN —
Stock status: In stock

priced per metre

Net price: £4.65

Gross price

£5.58

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

3 core 6mm² SYL-Flex control cable with galvanised steel wire braid armouring and transparent PVC outer sheath. Priced per metre.

Class 5 flexible plain copper conductors with PVC insulation and PVC bedding. Earth core sits on the outer layer of the formation. Clear sheath lets you inspect the braid without stripping.

  • 300/500V rated
  • GSWB armouring over PVC bedding
  • Overall diameter: 16.2mm
  • Operating temp: 0°C to +70°C
  • Min. bending radius: 6x overall diameter
Specifications

Number of Cores

3

Conductor Size

6 mm²

Conductor Type

Flexible plain copper, class 5

Insulation

PVC

Core Identification

Brown, Blue, Green/Yellow earth

Bedding

PVC

Armouring

GSWB (Galvanised steel wire braid)

Sheath

PVC, transparent

Voltage Rating

300/500V

Operating Temperature

0°C to +70°C

Min. Bending Radius

6 x overall diameter

Overall Diameter

16.2 mm

Nominal Diameter over Bedding

13.0 mm

Nominal Diameter over Armour

14.2 mm

Approximate Cable Weight

407 kg/km

Standard

VDE 0250
