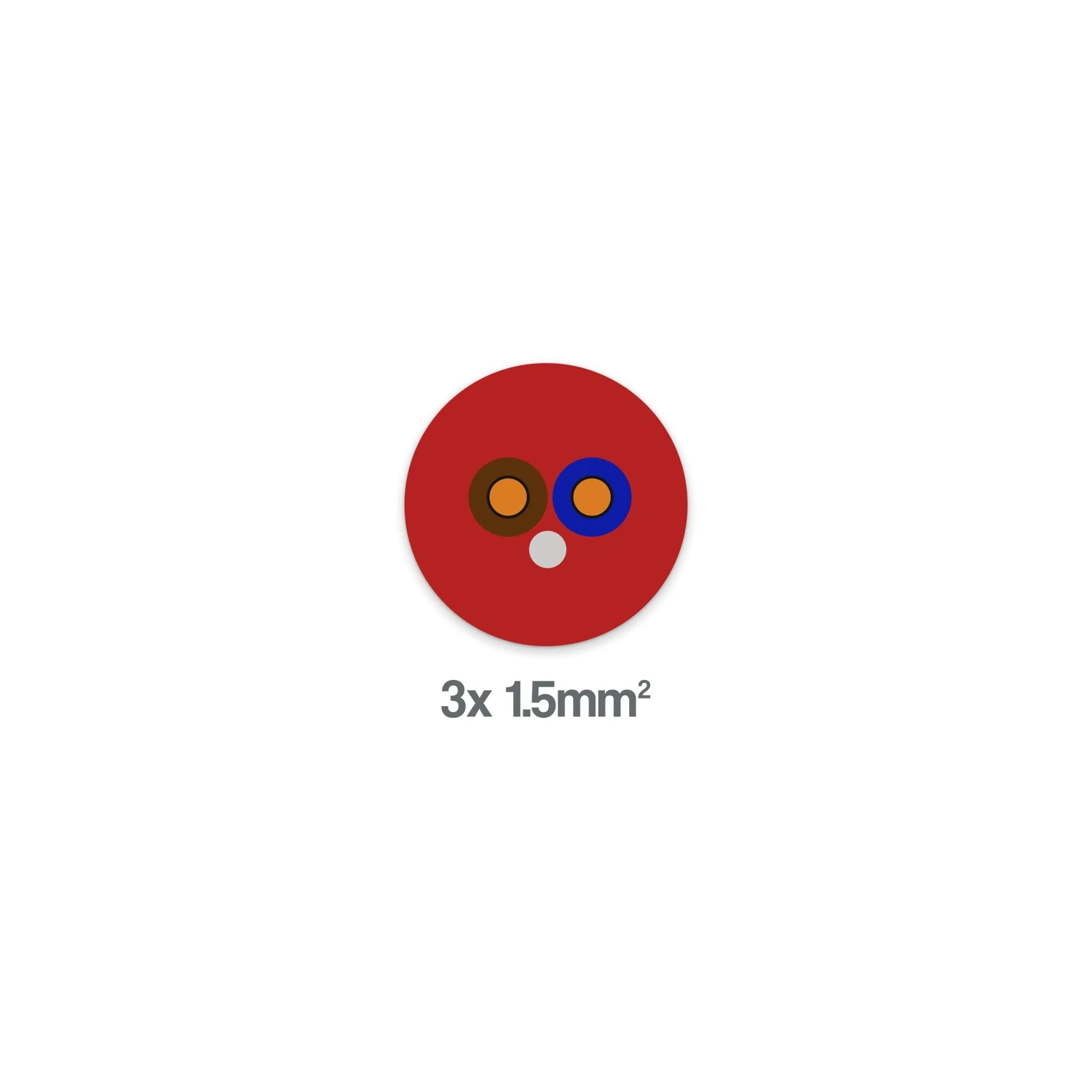

FP200 Gold Fire Resistant 3 Core 1.5mm2 LSZH Cable Red 300 500V 100m Drum

Photo is representative

FP200 Gold Fire Resistant 3 Core 1.5mm2 LSZH Cable Red 300 500V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code FT315FP2001
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £1.86

Gross price

£2.24

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

FP200 Gold soft-skin fire resistant cable for fire detection, fire alarm, voice alarm, and emergency lighting circuits. Carries a 30-minute fire rating — suitable for low-rise buildings up to 10 storeys.

Silicone rubber insulation with LSZH outer sheath. AL/PET tape screen with drain wire. Solid Class 1 copper conductors to BS EN/IEC 60228, tinned copper CPC.

  • 1.5mm² | 3 core + bare earth
  • 300/500V | 30-min fire rating
  • LSZH red sheath | AL/PET screen
  • OD: 8.4mm | Bend radius: 6 x OD
  • Standards: BS5839, BS7629, BS6387 Cat CWZ
Specifications

Conductor Size

1.5 mm²

Number of Cores

3 core + earth

Core Colours

Brown, Black, Grey with bare earth

Outer Sheath Colour

Red

Voltage Rating

300/500V

Fire Rating

30 minutes

Temperature Range

-40°C to 90°C

Overall Diameter

8.4 mm

Minimum Bending Radius

6 x overall diameter

Weight

130 kg/km

Conductor Material

Class 1 solid copper to BS EN/IEC 60228

Stranding

1/1.38 mm

Insulation

Fire resistant silicone rubber

Protective Conductor

Tinned copper

Screen

Aluminium/Polyester tape (AL/PET) with 0.5mm drain wire

Outer Sheath Material

Low Smoke Zero Halogen (LSZH)

Voltage Drop (3-phase AC)

27 mV/A/m

Standards

BS5839, BS7629, BS6387 Cat CWZ, IEC/EN 61034-1/2, BS EN/IEC 60228, BS EN/IEC 60754-1, BS EN/IEC 60332
