NYM-J 3 Core 4mm² PVC Wiring Cable 300 500V 500m Drum

Photo is representative

NYM-J 3 Core 4mm² PVC Wiring Cable 300 500V 500m Drum

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 34NYM5
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £2.98

Gross price

£3.58

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

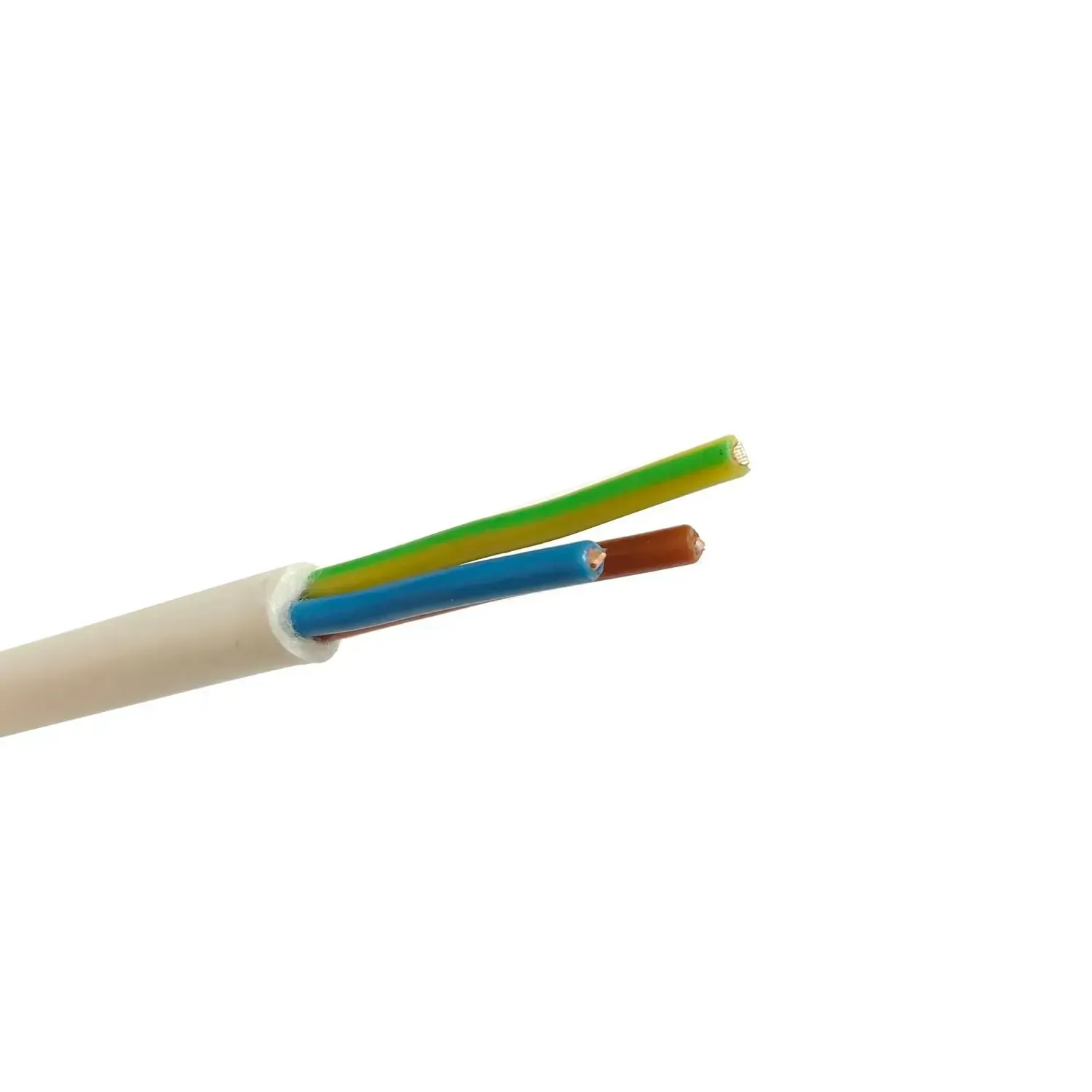

NYM-J 3 core 4mm² PVC wiring cable on a 500m drum. Solid Class 1 copper conductors, PVC insulation and sheath to IEC 60332-1-2. Suitable for dry, moist or wet areas — including under plaster and in concrete. Cores identified brown, blue, green/yellow.

Do not install below 0°C.

  • Voltage rating: 300/500V
  • Current carrying capacity: 34A
  • DC resistance at 20°C: 4.61 Ω/km
  • Voltage drop (3-phase AC): 10 mV/A/m
  • Standards: BS EN 50265-2-1, IEC 60502, VDE 0250
Specifications

Voltage Rating

300/500V

Conductor Size

4 mm²

Number of Cores

3

Conductor Type

Solid copper, Class 1

Stranding

1/2.25 mm

Insulation

PVC to IEC 60332-1-2

Sheath

PVC to IEC 60332-1-2

Current Carrying Capacity

34 A

DC Resistance at 20°C

4.61 Ω/km

AC Resistance at 70°C

4 Ω/km

Inductance

0.297 mH/km

Voltage Drop (3-phase AC)

10 mV/A/m

Voltage Drop (single-phase AC)

12 mV/A/m

Operating Temperature

-30°C to +70°C

Installation Temperature

Not below 0°C

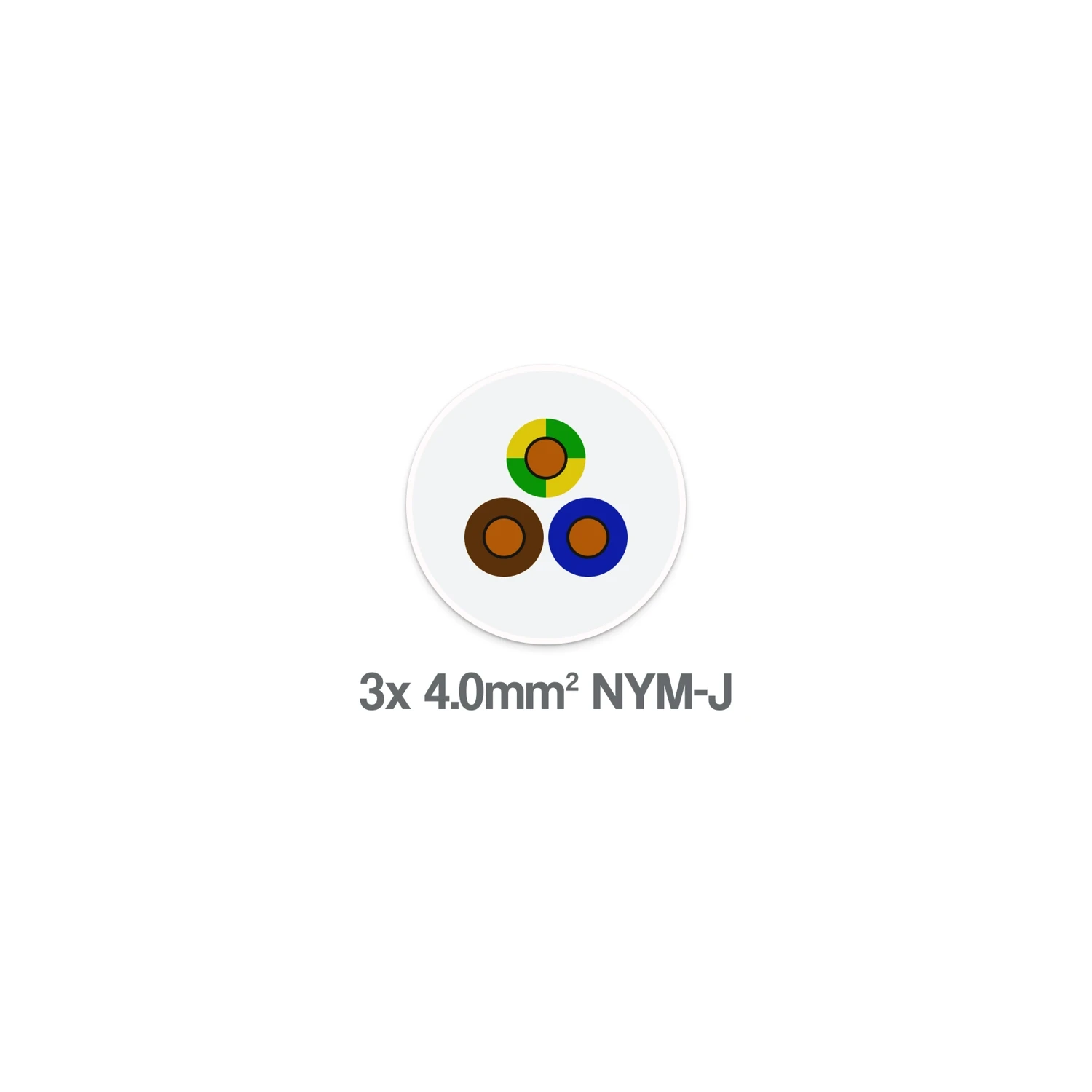

Core Identification

Brown, Blue, Green/Yellow

Weight

240 kg/km

Standards

BS EN 50265-2-1, IEC 60502, VDE 0250
