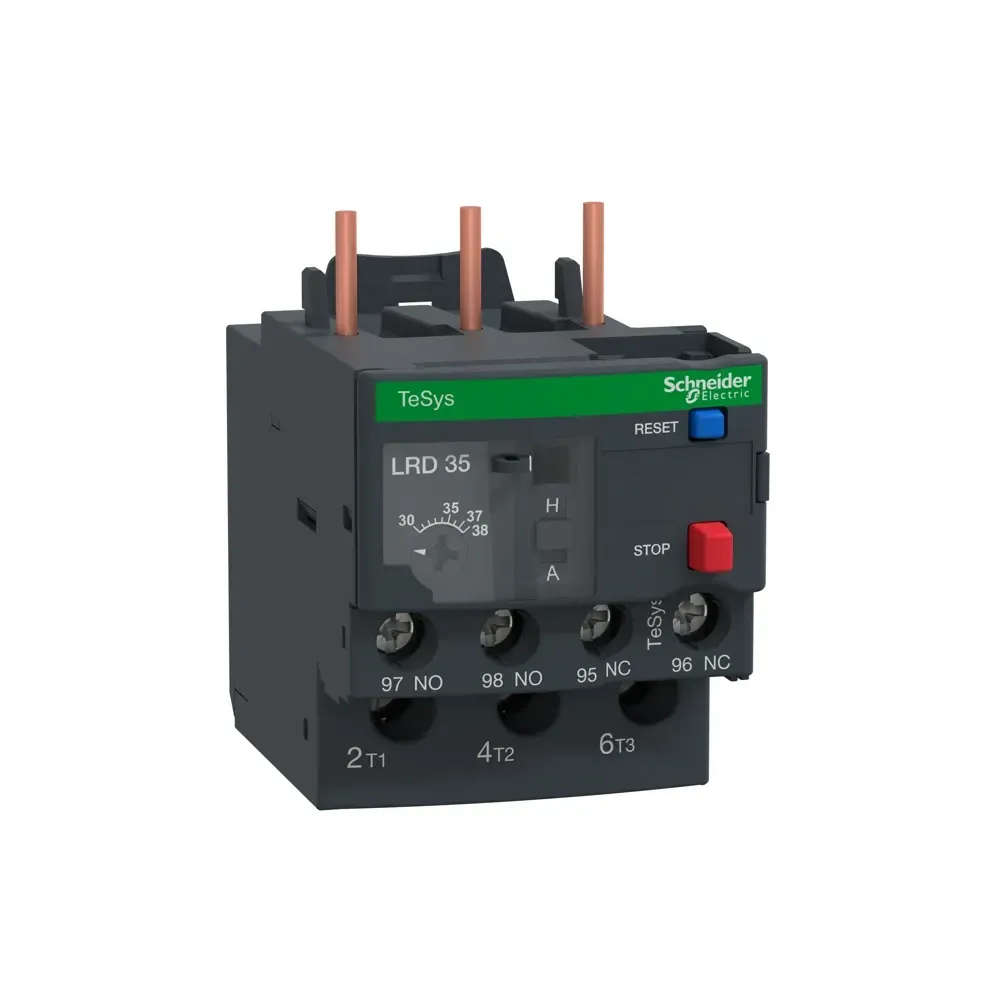

Schneider Electric LRD35 Thermal Overload Relay 30-38A Class 10A

Schneider Electric 30–38 A thermal overload relay (LRD35) from the TeSys Deca range, for motor protection in starter and contactor assemblies. Class 10A trip characteristics with manual reset (blue push-button) and red stop push-button. Rated up to 690 V AC (0–400 Hz), adjustable 30…38 A setting and 1NO+1NC auxiliary contact. Direct mountable under TeSys contactors LC1D32 and LC1D38 with screw-clamp terminals. IP20, temperature compensated for -20…60 °C operation and compliant with IEC 60947-4-1.
