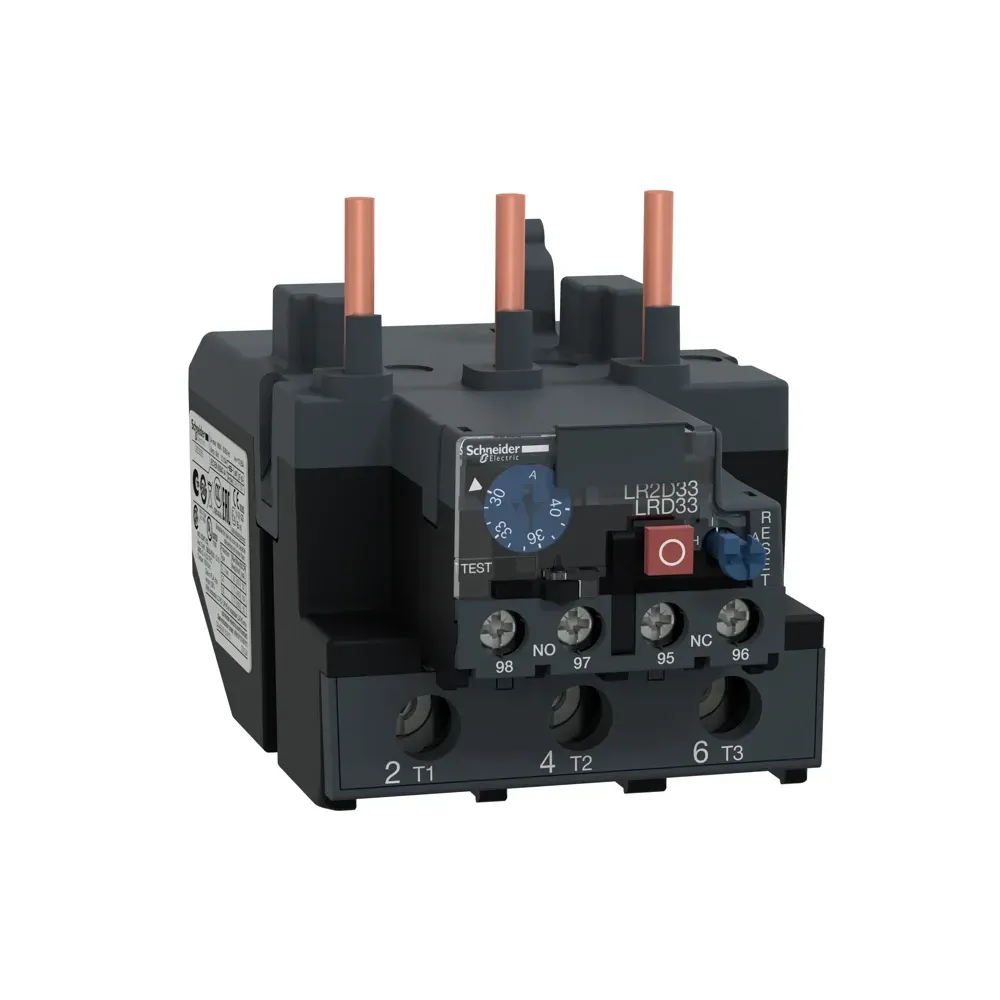

Schneider Electric LRD3355 Thermal Overload Relay 30-40A Class 10A

Schneider Electric TeSys Deca LRD3355 thermal overload relay (LRD3355) provides motor protection with an adjustable thermal range of 30-40 A and Class 10A trip characteristics. Rated for up to 1000 V AC (0–400 Hz), it features 1NO+1NC auxiliary contacts and manual reset via blue push-button (red = stop). Suitable for mounting under contactors or on plate/rail with accessories; compatible with LC1D80 and LC1D95 contactors. Phase-failure sensitivity trips at 130% Ir. Suitable for AC and DC control networks.
