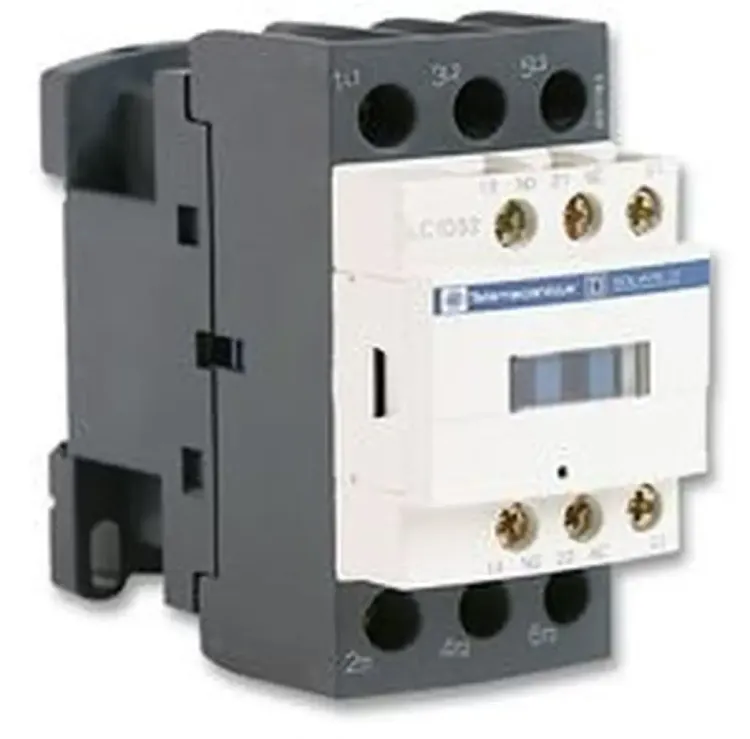

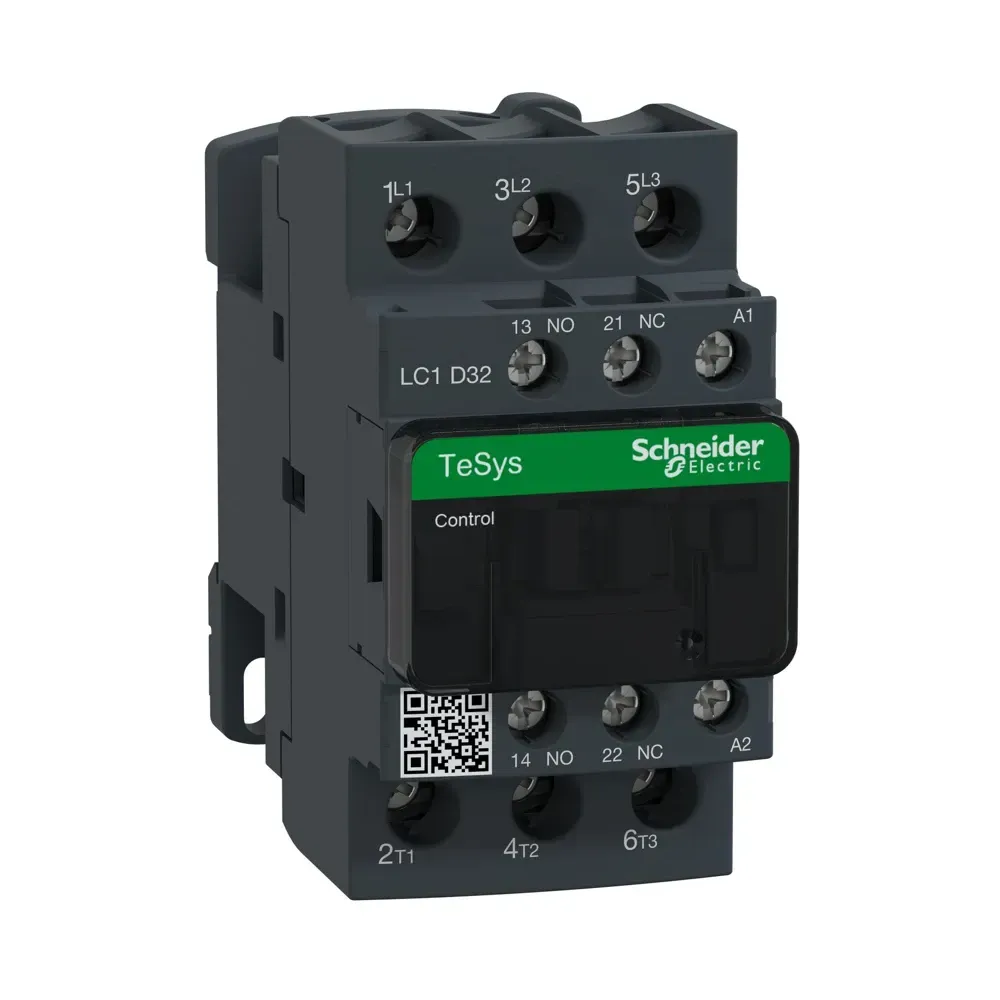

Schneider TeSys D 32A 110V AC 3P Contactor - LC1D32F7

Name: Schneider TeSys D 32A 110V AC 3P Contactor - LC1D32F7
Brand: Schneider Electric
SKU: LC1D32F7
Availability: InStock

Schneider TeSys D 32A 110V Coil AC 3P contactor (LC1D32F7), suitable for direct-on-line (DOL) motor starting, reversing, and resistive load control in industrial panels. Rated AC-3 32A at ≤440V for motors up to 15kW at 400V, and AC-1 50A switching capacity. Screw clamp terminals enable secure DIN rail or panel mounting. Includes 1NO+1NC auxiliary contacts and is IEC 60947-4-1 compliant for reliable industrial operation.

Stock Code LC1D32F7

MPN LC1D32F7

GTIN 3389110350197

In stock

£135.52

incl. VAT, 20% priced individually

Product Features

Current Rating	32A AC-3 / 50A AC-1
Control Coil	110V AC 50/60Hz
Contact Configuration	3P (3NO) + 1NO+1NC auxiliary contacts
Frame Size	D-frame (TeSys D series)
Terminal Type	Screw clamp terminals
Mounting Method	35mm DIN rail or panel mount
Auxiliary Capability	Accepts up to 4 auxiliary blocks (side/front)
Motor Rating	15kW at 400V AC (AC-3)
Mechanical Life	15 million operations
Standards Compliance	IEC 60947-4-1, IEC 60947-5-1, UL, CSA, EN
