32A 14x51mm aM Cylindrical Fuse Link 500V AC IEC60269

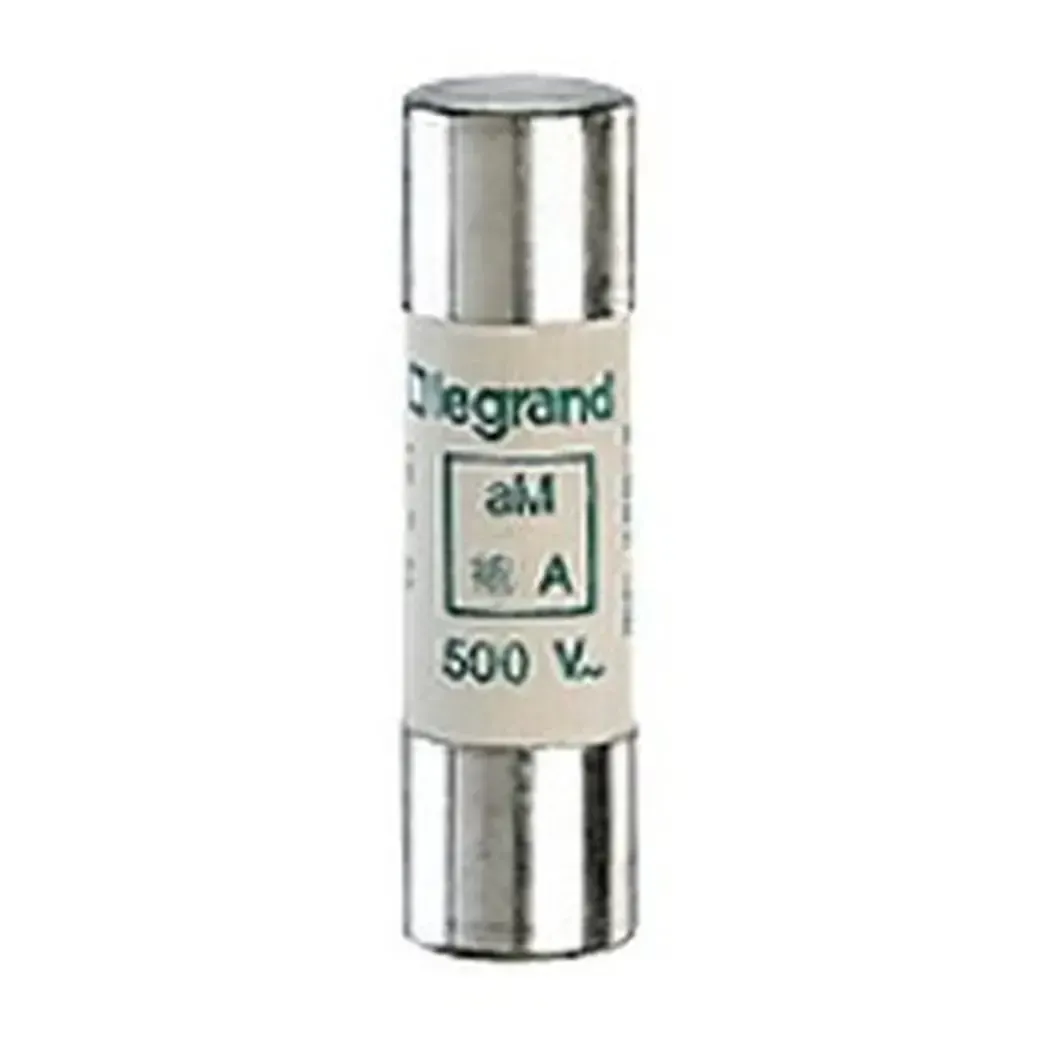

Photo is representative

32A 14x51mm aM Cylindrical Fuse Link 500V AC IEC60269

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 441032
GTIN —
Stock status: In stock

priced individually

Net price: £0.97

Gross price

£1.16

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

aM class cylindrical fuse link in 14x51mm format. Rated 32A at 500V AC. Suited to motor, transformer, and high inrush load circuits where short-circuit protection is required without tripping on inrush.

Ceramic body with silver-plated copper contacts. Fits standard 14x51mm cylindrical fuse holders.

  • Breaking capacity: 120kA @ 500V/400V
  • Prearcing I²t: 2500 A²S
  • Operating temp: -40°C to +80°C
  • Standards: IEC/EN 60269-1, IEC/EN 60269-2
  • RoHS compliant
Specifications

Operating Class

aM

Rated Current

32A

Rated Voltage

500V AC

Breaking Capacity

120kA @ 500V/400V

Size

14x51mm

Rated Frequency

42–62 Hz

Prearcing I²t

2500 A²S

I²t @ 400V

6207 A²S

I²t @ 500V

7791 A²S

I²t @ 690V

12000 A²S

Power Dissipation

2.04W

Operating Temperature

-40°C to +80°C

Body Material

Ceramic

Contact Material

Silver plated copper

Standards

IEC/EN 60269-1, IEC/EN 60269-2

Weight

18g
