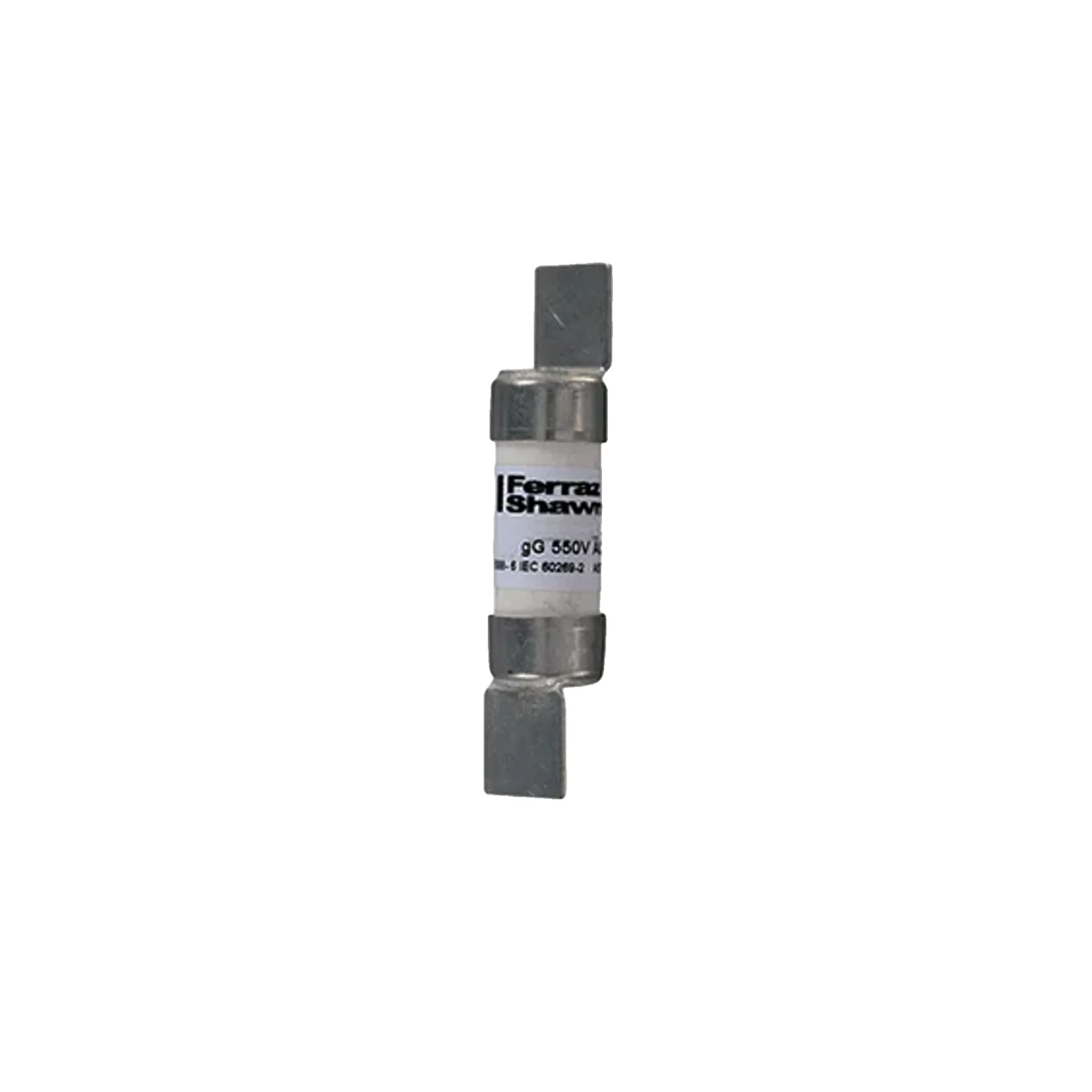

NS Fuse 32A F1 gG Offset Blade 550VAC 250VDC Ceramic Cartridge

Photo is representative

NS Fuse 32A F1 gG Offset Blade 550VAC 250VDC Ceramic Cartridge

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code NS32
GTIN —
Stock status: 1 in stock

priced individually

Net price: £4.73

Gross price

£5.68

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

BS88 gG fuse-link for low voltage IEC applications. F1 size, 32A, ceramic body with tin-plated copper offset blade terminals. Clip mount.

Suited to general purpose overcurrent and short-circuit protection where gG characteristic is specified. AC/DC rated.

  • Rated voltage: 550V AC / 250V DC
  • Breaking capacity: 80kA AC, 40kA DC
  • Dimensions: 13.5mm dia × 61mm
  • Clearing I²t: 3350 A²s / Melting I²t: 670 A²s
  • RoHS compliant
Specifications

Ampere Rating

32 A

Rated Voltage AC

550 V

Rated Voltage DC

250 V

Fuse Class

gG

Fuse Size

F1

Breaking Capacity AC

80 kA

Breaking Capacity DC

40 kA

Clearing I²t at Rated Voltage

3350 A²s

Melting I²t

670 A²s

Terminal Type

Offset Blade

Terminal Material

Tin-Plated Copper

Body Material

Ceramic

Mounting

Clip

Diameter

13.5 mm

Length

61 mm

Weight

0.0175 kg

Power Dissipation at Rated Current

2.9 W

RoHS Compliant

Yes

Standard

IEC BS88
