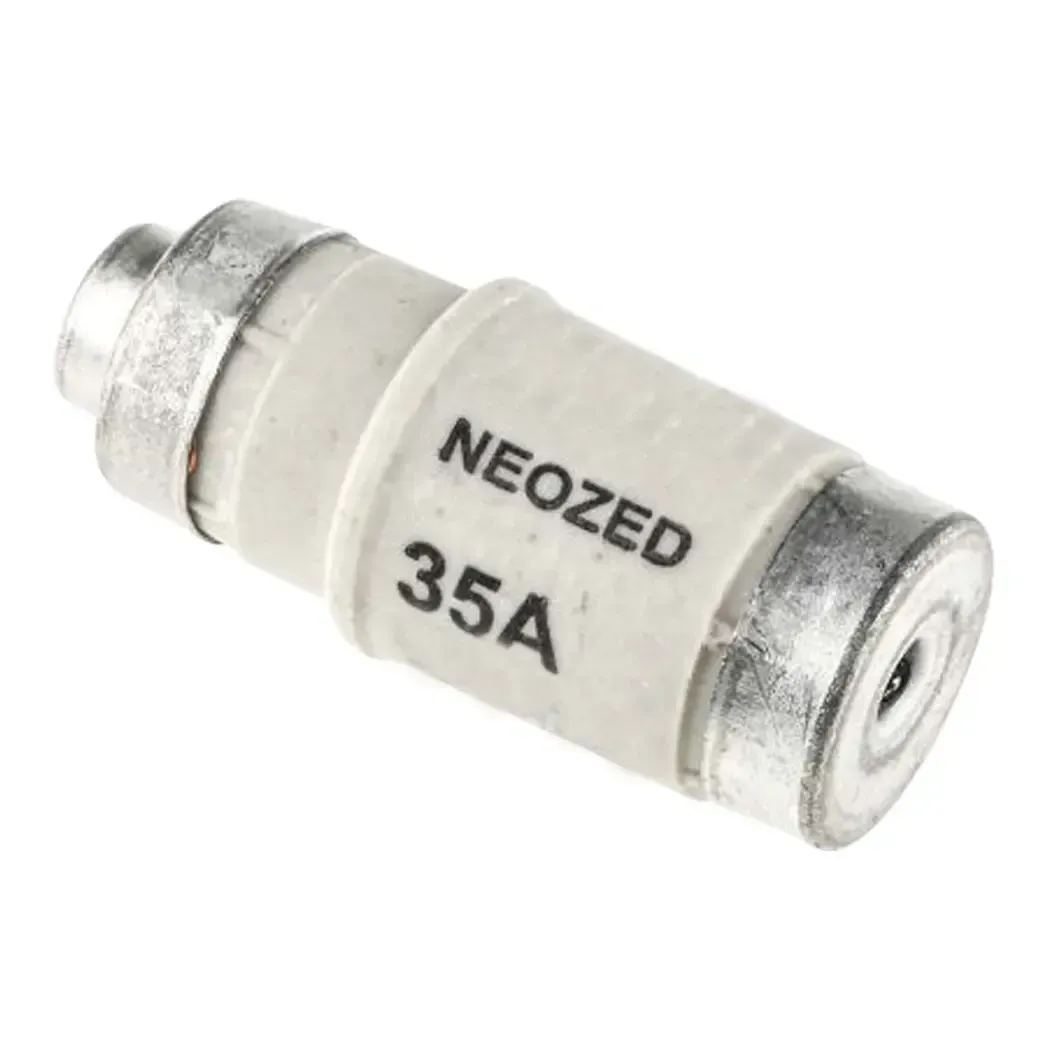

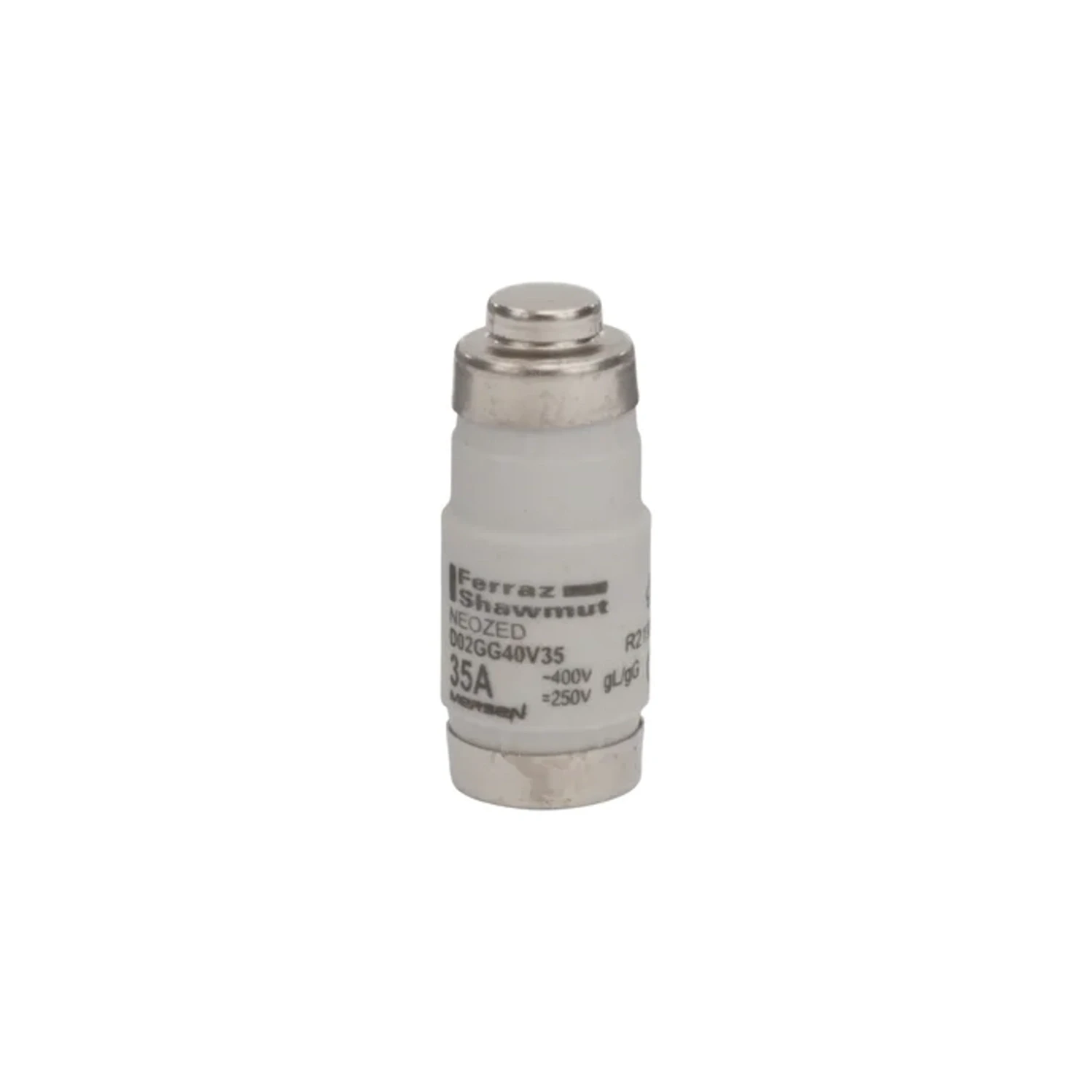

Neozed D02 35A gG Fuse-Link 400VAC 250VDC E18

Photo is representative

Neozed D02 35A gG Fuse-Link 400VAC 250VDC E18

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code NZ35
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £1.68

Gross price

£2.02

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

D02 (E18) gG fuse-link rated 35A. Fits standard Neozed D02 bases and carriers in LV distribution boards. Used for cable and line protection against overcurrents and short-circuit faults.

Utilisation category gG — general purpose, full-range breaking capacity.

  • 400VAC / 250VDC rated
  • 50kA AC breaking capacity (IEC)
  • D02 size, E18 cap, 36mm length × 15mm diameter
  • Nickel or silver plated copper alloy contacts
  • DIN VDE 0636-3
Specifications

Rated Current

35 A

Rated Voltage AC (IEC)

400 V

Rated Voltage DC (IEC)

250 V

Utilisation Category

gG

Breaking Capacity AC (IEC)

50 kA

Product Size

D02 (E18)

Standard

DIN VDE 0636-3

Power Dissipation at In

3.9 W

Length

36 mm

Diameter

15 mm

Weight

12 g
