3M GTI 3000 Heat Shrink Tubing 3:1 24mm Supplied ID Blue 1 Metre

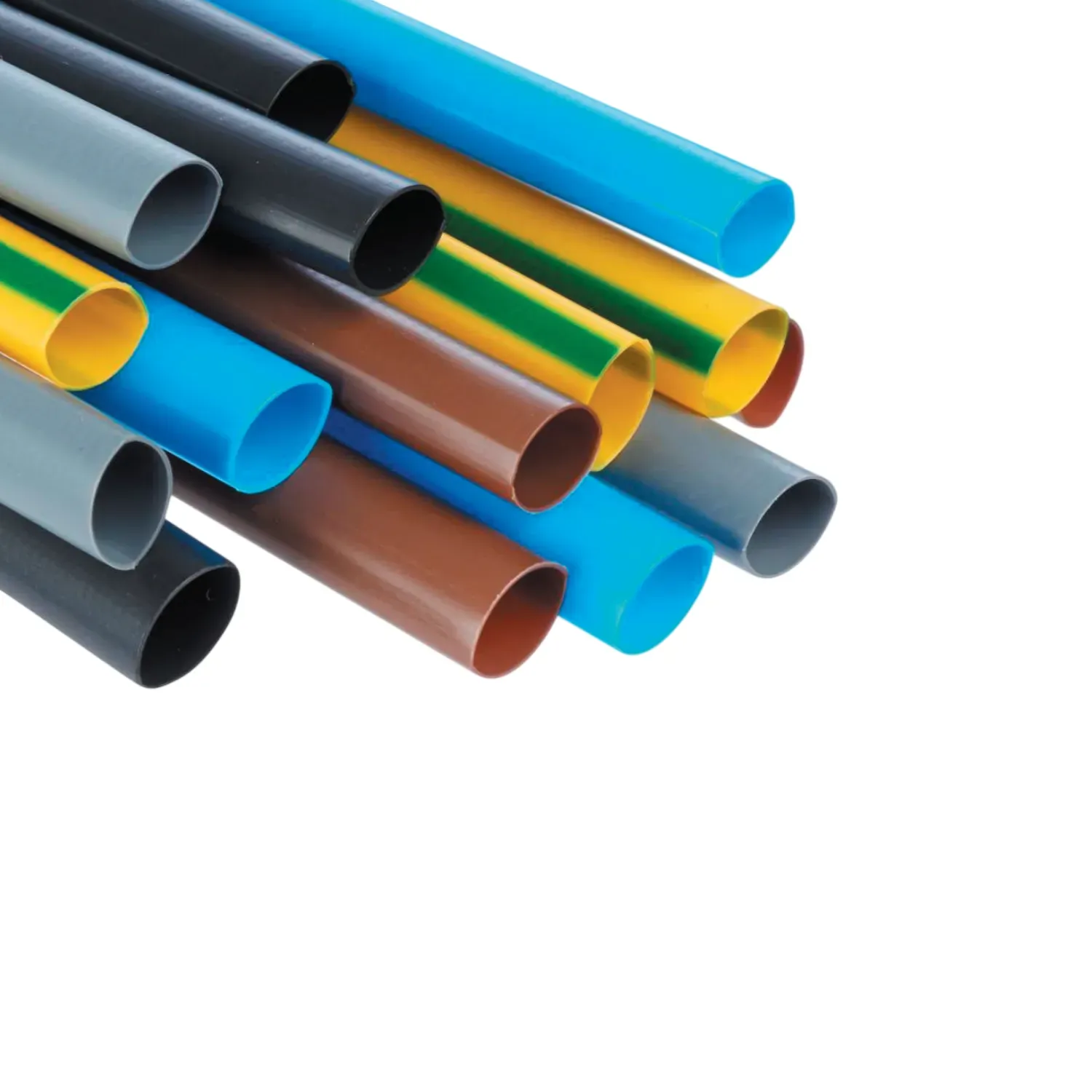

Photo is representative

3M GTI 3000 Heat Shrink Tubing 3:1 24mm Supplied ID Blue 1 Metre

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code GT0248BE
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £9.18

Gross price

£11.02

3M GTI 3000 thin wall heat shrink in blue. Crosslinked halogen-free polyolefin, 3:1 ratio. Suits larger terminations, lugs, busbars, and multi-core cable ends where a standard 2:1 won’t pull down tight enough over irregular profiles.

1.00mm recovered wall thickness gives decent mechanical protection at this diameter range. Copper corrosion-free — safe for direct contact with copper conductors.

  • Supplied ID: 24.0mm / Recovered ID (max): 8.0mm
  • Operating temp: -55°C to +135°C
  • Breakdown voltage: 34 kV/mm
  • Compliant: RoHS, halogen-free, IEC 60684-2, IEC 60684-3-212
Specifications

Colour

Blue

Supplied ID (min)

24.0 mm

Recovered ID (max)

8.0 mm

Shrink Ratio

3:1

Recovered Wall Thickness

1.00 mm

Length

1 metre

Material

Crosslinked halogen-free polyolefin

Operating Temperature

-55°C to +135°C

Shrink Temperature

135°C to 280°C

Longitudinal Change

-5 to 0%

Breakdown Voltage

34 kV/mm

Volume Resistivity

10¹⁴ Ωm

Tensile Strength

25 N/mm²

Elongation at Break

540%

Relative Density

0.92 g/cm³

Shelf Life

5 years (stored 10–27°C, <75% RH)

Compliance

RoHS, Halogen-free, IEC 60684-2, IEC 60684-3-212
