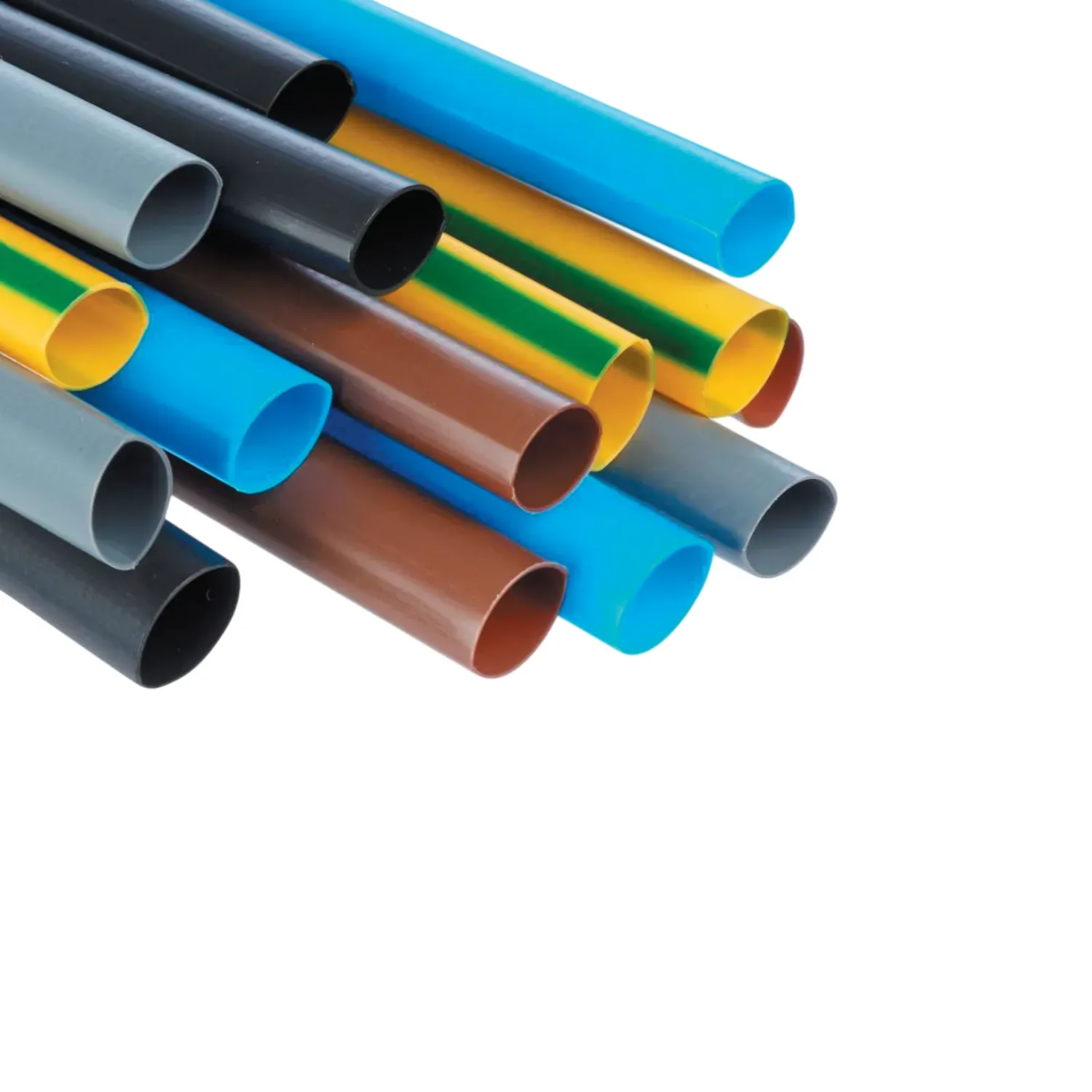

3M GTI 3000 Heat Shrink Tubing 3:1 24mm to 8mm Green Yellow 1 Metre

Photo is representative

3M GTI 3000 Heat Shrink Tubing 3:1 24mm to 8mm Green Yellow 1 Metre

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code GT0248GYS
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £9.18

Gross price

£11.02

3M GTI 3000 green/yellow heat shrink in 24mm supplied ID, recovering to 8mm max. Crosslinked halogen-free polyolefin with a 3:1 shrink ratio — suits stepped transitions and irregular profiles where 2:1 won’t pull down tight enough.

Green/yellow stripe meets IEC 60446 and BS 7671 colour coding for earth and protective conductors. Use it for PE identification at terminations, joints, and bonding conductors in panels and switchgear.

  • Supplied ID: 24.0mm / Recovered ID max: 8.0mm
  • Recovered wall thickness: 1.00mm
  • Operating temp: -55°C to +135°C
  • Breakdown voltage: 34 kV/mm
  • RoHS compliant, halogen-free, IEC 60684-2 tested
Specifications

Colour

Green/Yellow striped

Shrink Ratio

3:1

Supplied ID (min)

24.0 mm

Recovered ID (max)

8.0 mm

Recovered Wall Thickness

1.00 mm

Length

1 metre

Material

Crosslinked halogen-free polyolefin

Operating Temperature

-55°C to +135°C

Shrink Temperature

135°C to 280°C

Longitudinal Change

-5 to 0%

Breakdown Voltage

34 kV/mm

Volume Resistivity

10¹⁴ Ωm

Tensile Strength

25 N/mm²

Elongation at Break

540%

Relative Density

0.92 g/cm³

Shelf Life

5 years (stored 10–27°C, <75% RH)

Standards

RoHS compliant, halogen-free, IEC 60684-2, IEC 60684-3-212, IEC 60446, BS 7671
