3M GTI 3000 Heat Shrink Tubing 3:1 24mm Recovered 8mm Grey 1 Metre

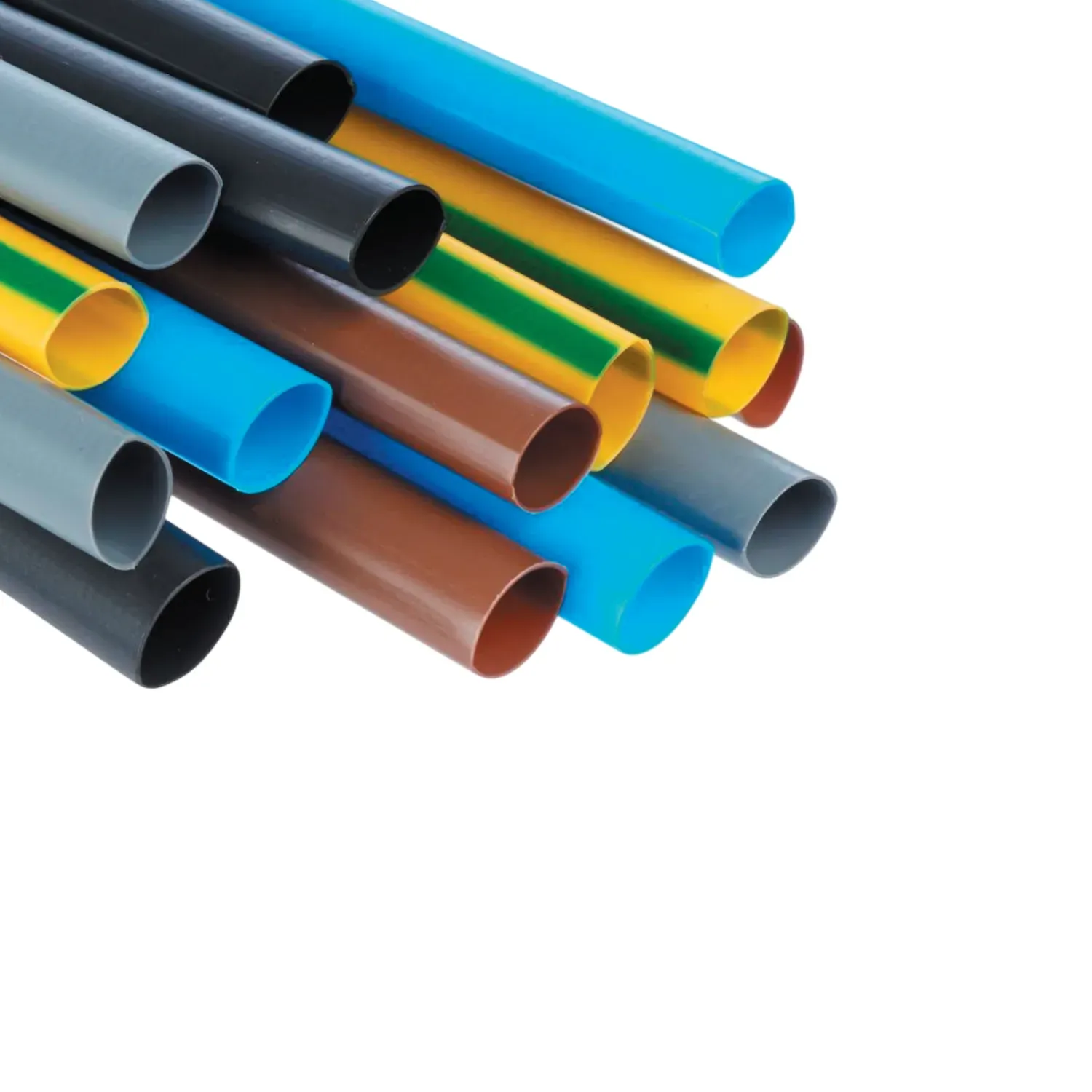

Photo is representative

3M GTI 3000 Heat Shrink Tubing 3:1 24mm Recovered 8mm Grey 1 Metre

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code GT0248GREY
GTIN
Stock status: In stock

priced individually

More arriving soon

Net price: £9.18

Gross price

£11.02

3M GTI 3000 thin-wall heat shrink tubing in grey. Crosslinked halogen-free polyolefin, 3:1 shrink ratio — recovers tightly over stepped transitions and irregular shapes. Supplied in 1m lengths.

Grey conforms to IEC 60446 for L3 phase identification. Suitable for larger cable terminations, lugs, busbars, and multi-core cable ends.

  • Supplied ID: 24.0mm / Recovered ID (max): 8.0mm
  • Recovered wall thickness: 1.00mm
  • Breakdown voltage: 34 kV/mm
  • Operating temp: -55°C to +135°C
Specifications

Supplied ID (min)

24.0 mm

Recovered ID (max)

8.0 mm

Shrink Ratio

3:1

Recovered Wall Thickness

1.00 mm

Length

1 metre

Material

Crosslinked halogen-free polyolefin

Colour

Grey

Operating Temperature

-55°C to +135°C

Shrink Temperature

135°C to 280°C

Breakdown Voltage

34 kV/mm

Volume Resistivity

10¹⁴ Ωm

Tensile Strength

25 N/mm²

Longitudinal Change

-5 to 0%

Shelf Life

5 years (stored 10–27°C, <75% RH)

Standards

IEC 60684-2, IEC 60684-3-212, IEC 60446, RoHS compliant, Halogen free
