3M GTI 3000 Heat Shrink Tubing 3:1 9mm Recovered 3mm Grey 1 Metre

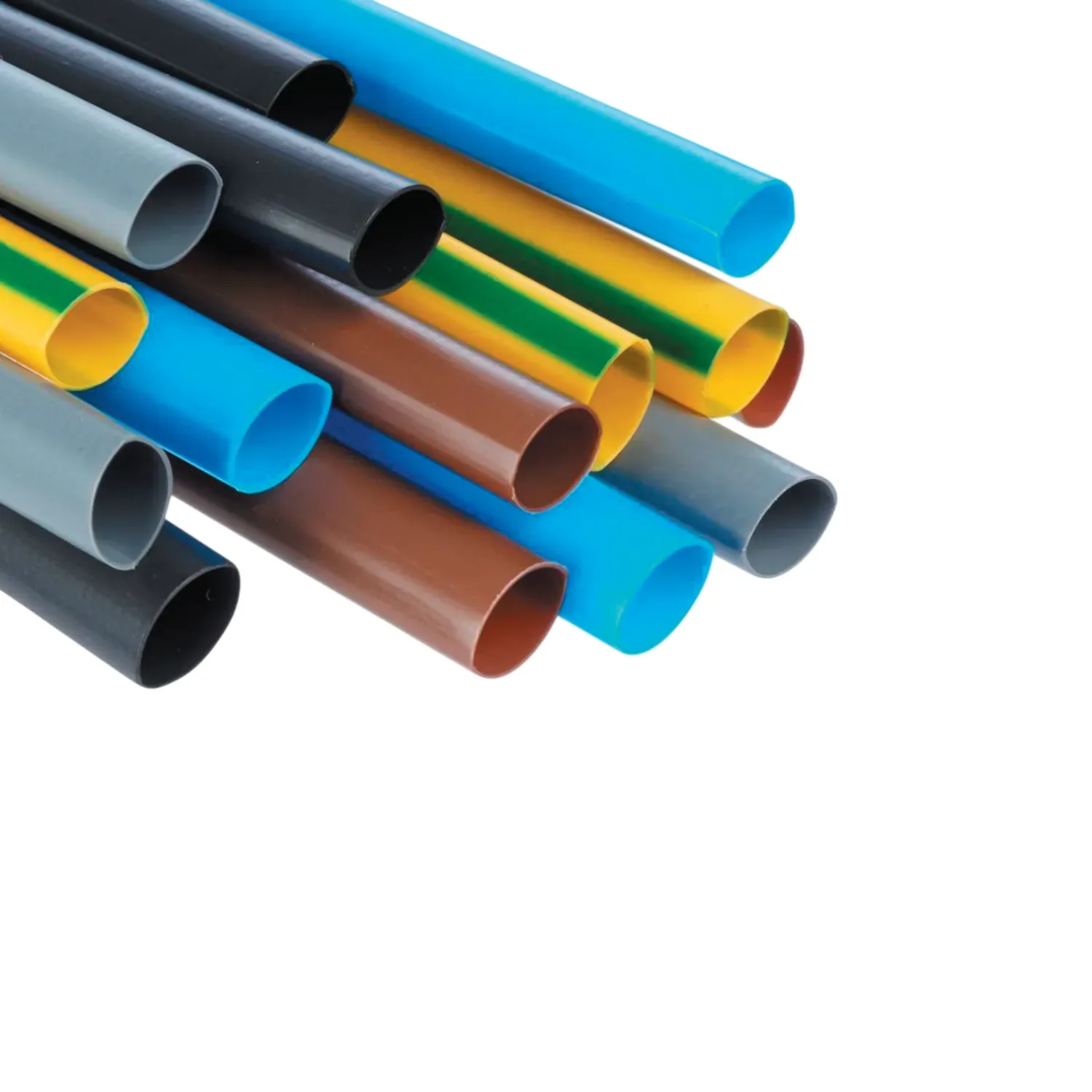

Photo is representative

3M GTI 3000 Heat Shrink Tubing 3:1 9mm Recovered 3mm Grey 1 Metre

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code GT0093GY
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £5.61

Gross price

£6.73

3M GTI 3000 thin-wall heat shrink tubing. Supplied in 1m lengths, 9mm expanded ID recovering to 3mm max. Crosslinked halogen-free polyolefin.

Grey conforms to IEC 60446 — correct colour for L3 phase identification. 3:1 ratio recovers tightly over stepped transitions and irregular profiles. 34 kV/mm breakdown voltage. Passes heat shock at 200°C and cold flex at -55°C — no cracking on either.

  • Supplied ID: 9.0 mm / Recovered ID: 3.0 mm
  • Recovered wall: 0.75 mm
  • Operating temp: -55°C to +135°C
  • Shrink temp: 135°C to 280°C
  • Halogen-free, RoHS compliant, tested to IEC 60684-2
Specifications

Supplied ID (min)

9.0 mm

Recovered ID (max)

3.0 mm

Shrink Ratio

3:1

Recovered Wall Thickness

0.75 mm

Length

1 metre

Colour

Grey

Material

Crosslinked halogen-free polyolefin

Operating Temperature

-55°C to +135°C

Shrink Temperature

135°C to 280°C

Breakdown Voltage

34 kV/mm

Volume Resistivity

10¹⁴ Ωm

Tensile Strength

25 N/mm²

Longitudinal Change

-5 to 0%

Shelf Life

5 years (stored 10–27°C, <75% RH)

Compliance

RoHS compliant, Halogen free, IEC 60684-2, IEC 60684-3-212, IEC 60446
