3M GTI 3000 Heat Shrink Tubing 3:1 39mm to 13mm Grey 1 Metre

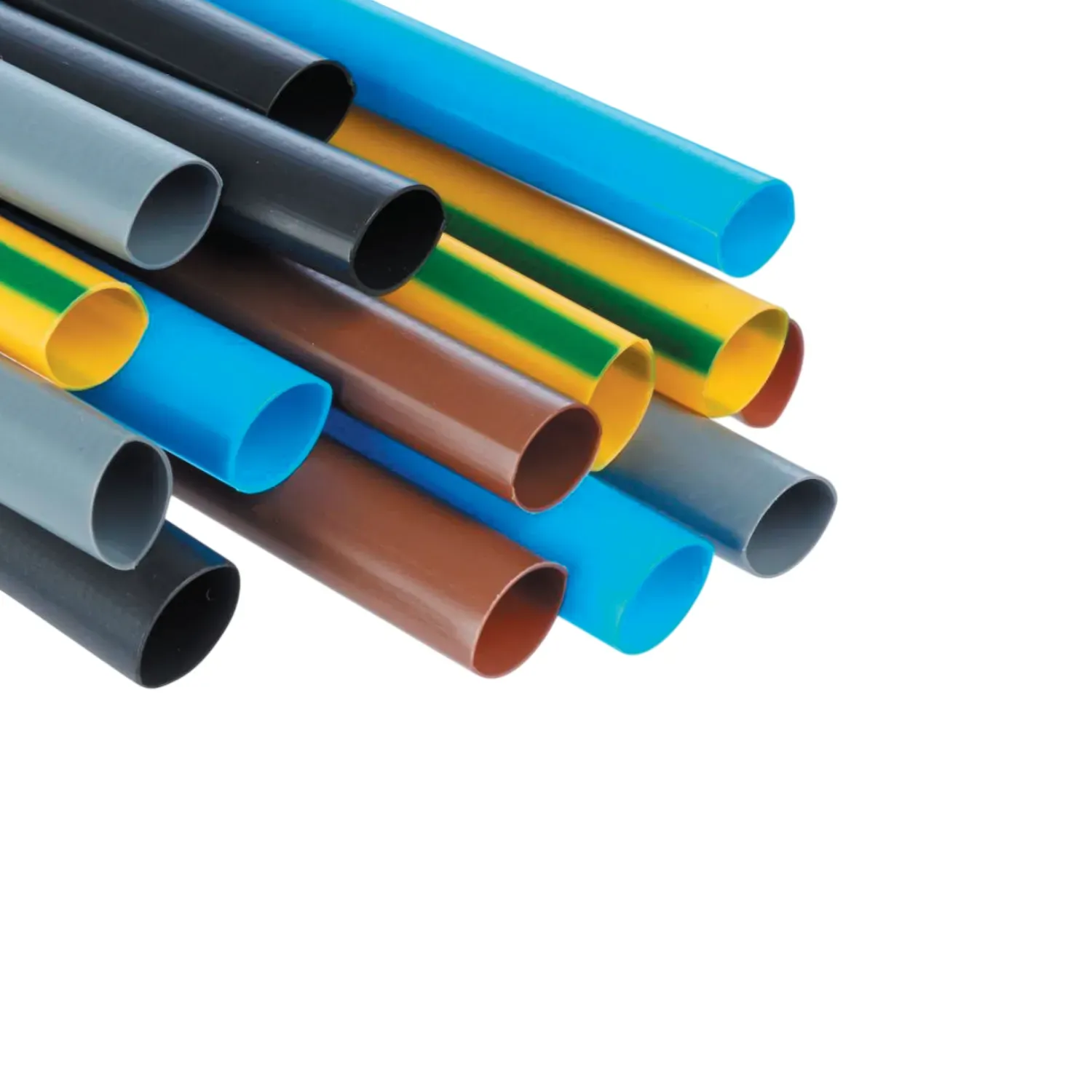

Photo is representative

3M GTI 3000 Heat Shrink Tubing 3:1 39mm to 13mm Grey 1 Metre

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code GT3913GY
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £16.28

Gross price

£19.54

3:1 medium wall heat shrink from 3M’s GTI 3000 series. Crosslinked halogen-free polyolefin, grey. Suitable for large cable terminations, compression lugs, joints, and L3 phase identification per IEC 60446.

Recovers from 39mm down to 13mm with a 1.15mm recovered wall. Handles irregular shapes and stepped transitions cleanly.

  • Shrink temp: 135°C to 280°C
  • Continuous operating temp: -55°C to +135°C
  • Breakdown voltage: 34 kV/mm
  • Longitudinal change: -5 to 0%
  • RoHS compliant, halogen-free, IEC 60684-2
Specifications

Expanded ID (min)

39.0 mm

Recovered ID (max)

13.0 mm

Shrink Ratio

3:1

Recovered Wall Thickness

1.15 mm

Length

1 metre

Material

Crosslinked halogen-free polyolefin

Colour

Grey

Continuous Operating Temperature

-55°C to +135°C

Shrink Temperature

135°C to 280°C

Breakdown Voltage

34 kV/mm

Volume Resistivity

10¹⁴ Ωm

Tensile Strength

25 N/mm²

Elongation at Break

540%

Longitudinal Change

-5 to 0%

Relative Density

0.92 g/cm³

Shelf Life

5 years (stored 10–27°C, <75% RH)

Compliance

RoHS compliant, Halogen-free, IEC 60684-2, IEC 60684-3-212, IEC 60446
