3M GTI 3000 Heat Shrink Tubing 3:1 9mm 1 Metre Green Yellow Earth

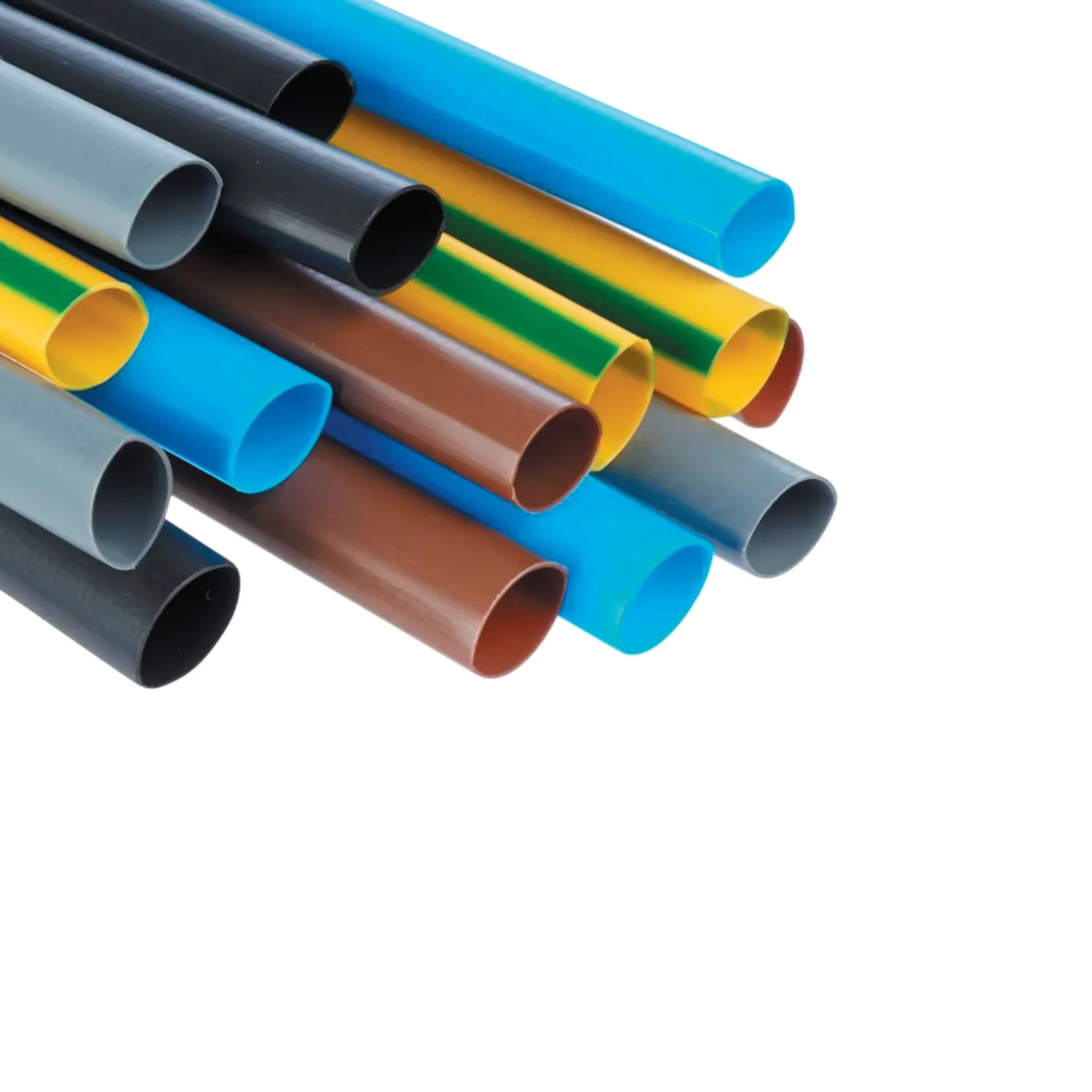

Photo is representative

3M GTI 3000 Heat Shrink Tubing 3:1 9mm 1 Metre Green Yellow Earth

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code GT0093GYS
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £8.40

Gross price

£10.08

3M GTI 3000 green/yellow heat shrink for identifying and re-marking earth and PE conductors per IEC 60446 and BS 7671. Crosslinked halogen-free polyolefin, thin wall, 3:1 shrink ratio — recovers tightly over stepped transitions and irregular shapes.

Suited to earthing cables, equipotential bonding conductors, and panel or switchgear terminations where green/yellow identification is required by wiring regs.

  • Supplied ID 9.0mm → recovered ID max 3.0mm
  • Recovered wall thickness 0.75mm
  • Continuous operating temp -55°C to +135°C
  • Breakdown voltage 34 kV/mm
  • Halogen-free, RoHS compliant, IEC 60684-2
Specifications

Colour

Green/Yellow striped

Supplied ID (min)

9.0 mm

Recovered ID (max)

3.0 mm

Shrink Ratio

3:1

Recovered Wall Thickness

0.75 mm

Length

1 metre

Material

Crosslinked halogen-free polyolefin

Operating Temperature

-55°C to +135°C

Shrink Temperature

135°C to 280°C

Breakdown Voltage

34 kV/mm

Volume Resistivity

10¹⁴ Ωm

Tensile Strength

25 N/mm²

Longitudinal Change

-5 to 0%

Shelf Life

5 years (stored 10–27°C, <75% RH)

Compliance

RoHS compliant, Halogen-free, IEC 60684-2, IEC 60684-3-212, IEC 60446, BS 7671
