3M GTI 3000 9mm 3:1 Heat Shrink Tubing Black 1 Metre Halogen Free

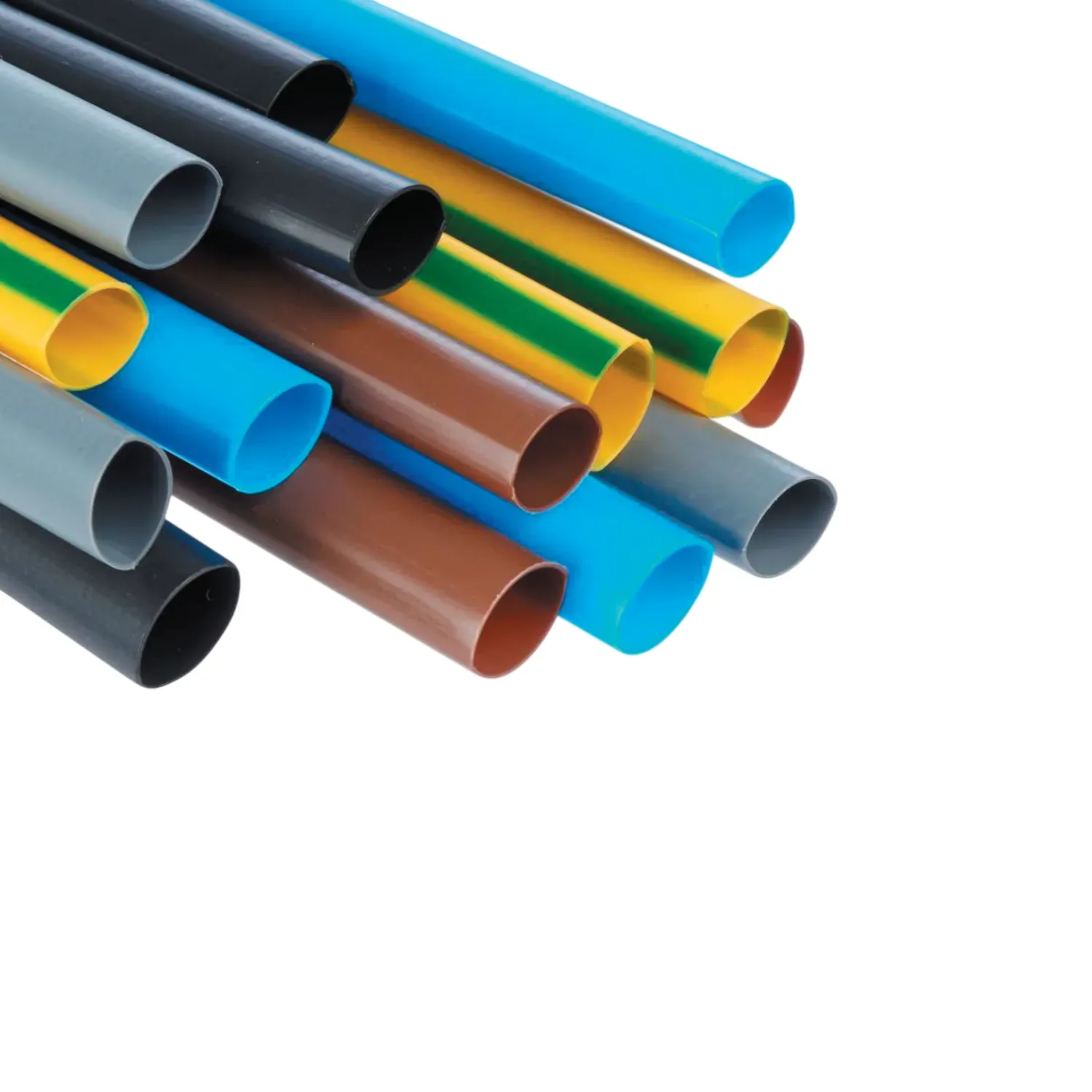

Photo is representative

3M GTI 3000 9mm 3:1 Heat Shrink Tubing Black 1 Metre Halogen Free

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code GT0093BK
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £5.60

Gross price

£6.72

3M GTI 3000 thin-wall heat shrink in crosslinked halogen-free polyolefin. 9mm expanded ID recovers to 3mm max at a 3:1 ratio — suits irregular shapes and stepped terminations where standard 2:1 won’t pull down tight enough.

RoHS compliant and IEC 60684-2 tested. Safe for direct contact with copper.

  • Shrink temp: 135°C to 280°C, continuous operating range -55°C to +135°C
  • Recovered wall thickness: 0.75mm
  • Breakdown voltage: 34 kV/mm
  • Longitudinal change: -5 to 0%
  • Shelf life: 5 years stored at 10–27°C, <75% RH
Specifications

Colour

Black

Supplied ID (min expanded)

9.0 mm

Recovered ID (max)

3.0 mm

Shrink Ratio

3:1

Recovered Wall Thickness

0.75 mm

Length

1 metre

Material

Crosslinked halogen-free polyolefin

Continuous Operating Temperature

-55°C to +135°C

Shrink Temperature

135°C to 280°C

Breakdown Voltage

34 kV/mm

Volume Resistivity

10¹⁴ Ωm

Tensile Strength

25 N/mm²

Elongation at Break

540%

Longitudinal Change

-5 to 0%

Relative Density

0.92 g/cm³

Shelf Life

5 years (stored 10–27°C, <75% RH)

Standards

IEC 60684-2, IEC 60684-3-212, RoHS compliant, Halogen free
