3M GTI 3000 9mm 3:1 Heat Shrink Tubing Blue 1 Metre Halogen Free Polyolefin

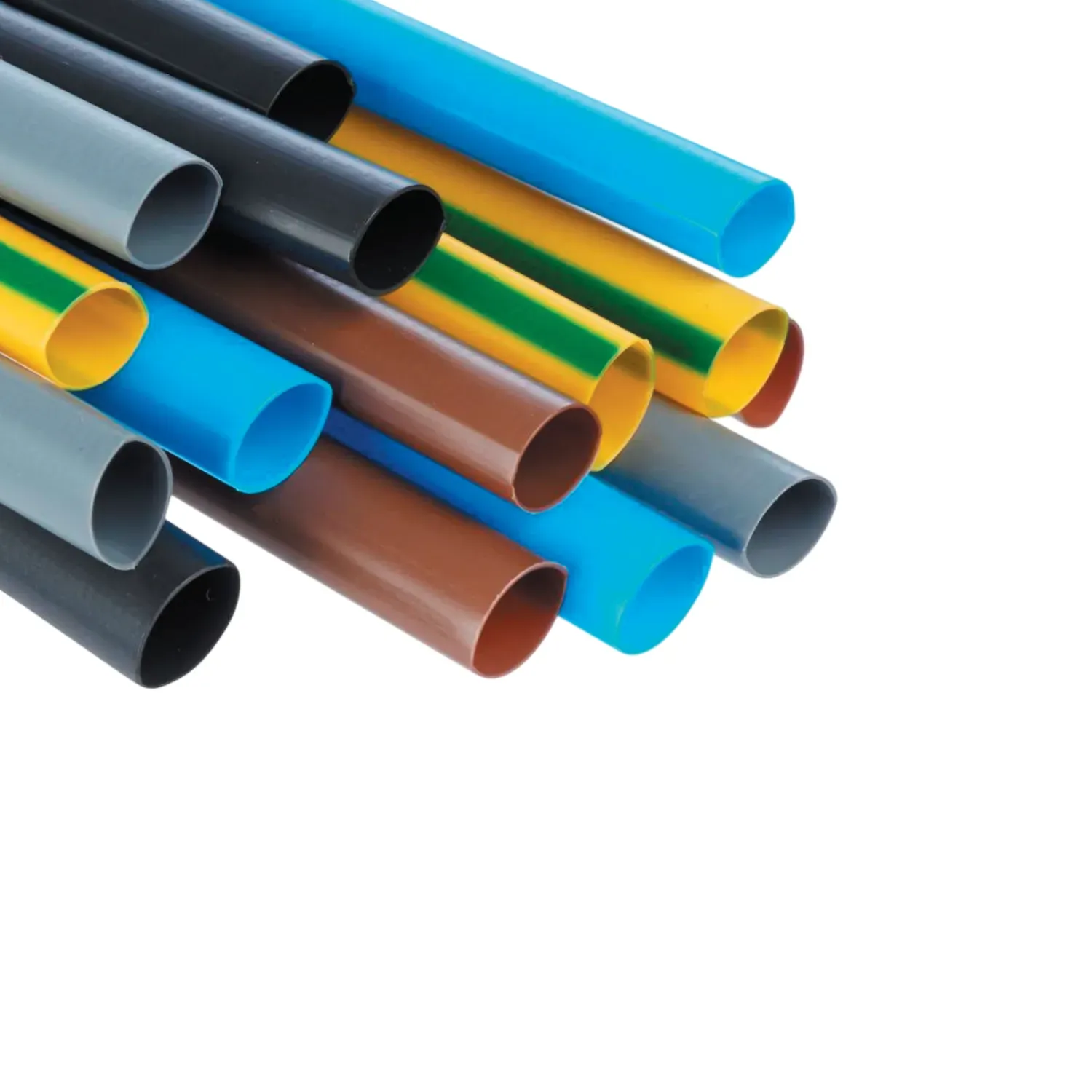

Photo is representative

3M GTI 3000 9mm 3:1 Heat Shrink Tubing Blue 1 Metre Halogen Free Polyolefin

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code GT0093BE
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £5.59

Gross price

£6.71

3M GTI 3000 thin-wall heat shrink in blue. Crosslinked halogen-free polyolefin, 3:1 shrink ratio. Supplied ID 9.0mm, recovers to 3.0mm max. Sold in 1m lengths.

Good for terminations, crimp joints, solder connections and cable ID where a tight, flexible finish over stepped or irregular profiles is needed. Rated -55°C to +135°C continuous.

  • Recovered wall thickness: 0.75mm
  • Breakdown voltage: 34 kV/mm
  • Longitudinal change: -5 to 0%
  • Shelf life: 5 years at 10–27°C, <75% RH
Specifications

Supplied ID (min)

9.0 mm

Recovered ID (max)

3.0 mm

Shrink Ratio

3:1

Recovered Wall Thickness

0.75 mm

Length

1 metre

Colour

Blue

Material

Crosslinked halogen-free polyolefin

Operating Temperature

-55°C to +135°C

Shrink Temperature

135°C to 280°C

Breakdown Voltage

34 kV/mm

Volume Resistivity

10¹⁴ Ωm

Tensile Strength

25 N/mm²

Elongation at Break

540%

Longitudinal Change

-5 to 0%

Relative Density

0.92 g/cm³

Shelf Life

5 years (stored 10–27°C, <75% RH)

Compliance

RoHS compliant, Halogen free, IEC 60684-2, IEC 60684-3-212
