3M GTI 3000 9mm 3:1 Heat Shrink Tubing Red 1 Metre Halogen Free

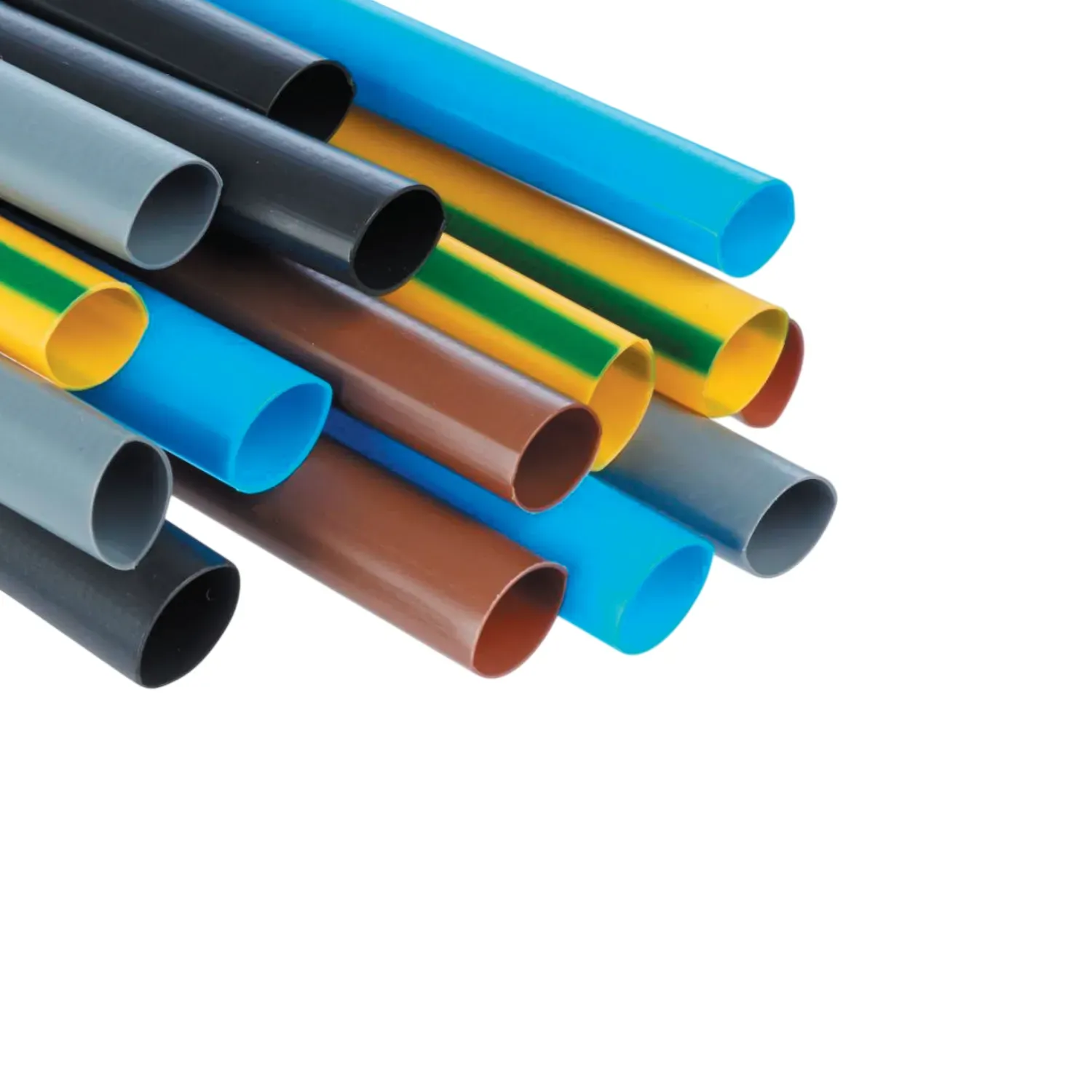

Photo is representative

3M GTI 3000 9mm 3:1 Heat Shrink Tubing Red 1 Metre Halogen Free

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code GT0093RD
GTIN —
Stock status: 9 in stock

priced individually

More arriving soon

Net price: £5.61

Gross price

£6.73

3M GTI 3000 crosslinked halogen-free polyolefin heat shrink in red. 9mm supplied ID recovers down to 3mm — 3:1 ratio handles irregular profiles and stepped transitions cleanly.

Suitable for wire and cable terminations, crimp and solder joint protection, and cable ID by colour coding. Safe for direct contact with copper conductors.

  • Supplied ID: 9.0mm / Recovered ID: 3.0mm
  • Recovered wall thickness: 0.75mm
  • Operating temp: -55°C to +135°C continuous
  • Breakdown voltage: 34 kV/mm
  • Halogen-free, RoHS compliant, IEC 60684-2
Specifications

Colour

Red

Supplied ID (min)

9.0 mm

Recovered ID (max)

3.0 mm

Shrink Ratio

3:1

Recovered Wall Thickness

0.75 mm

Length

1 metre

Material

Crosslinked halogen-free polyolefin

Continuous Operating Temp

-55°C to +135°C

Shrink Temperature

135°C to 280°C

Breakdown Voltage

34 kV/mm

Volume Resistivity

10¹⁴ Ωm

Tensile Strength

25 N/mm²

Elongation at Break

540%

Longitudinal Change

-5 to 0%

Relative Density

0.92 g/cm³

Shelf Life

5 years (stored 10–27°C, <75% RH)

Compliance

RoHS compliant, Halogen free, IEC 60684-2, IEC 60684-3-212
