4A NIT Fuse

Photo is representative

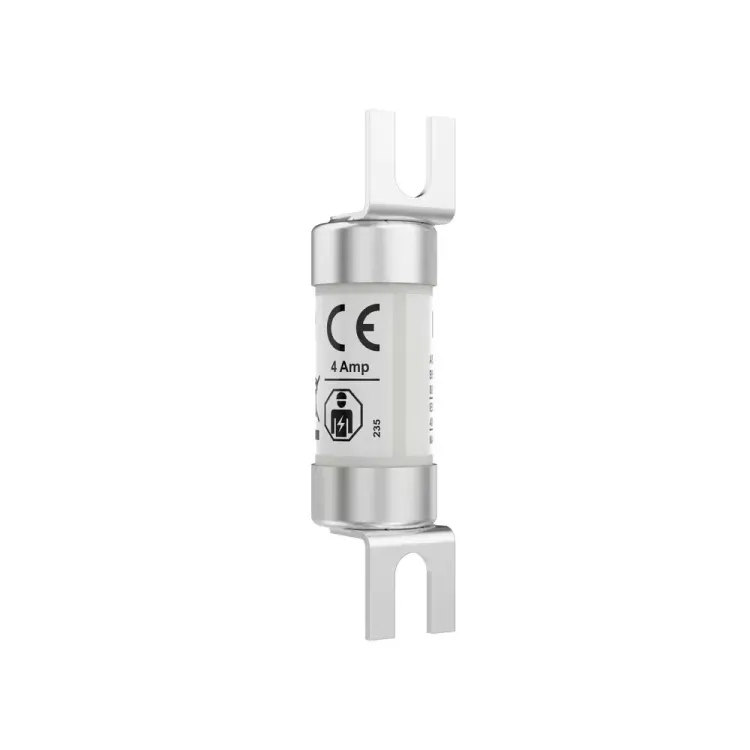

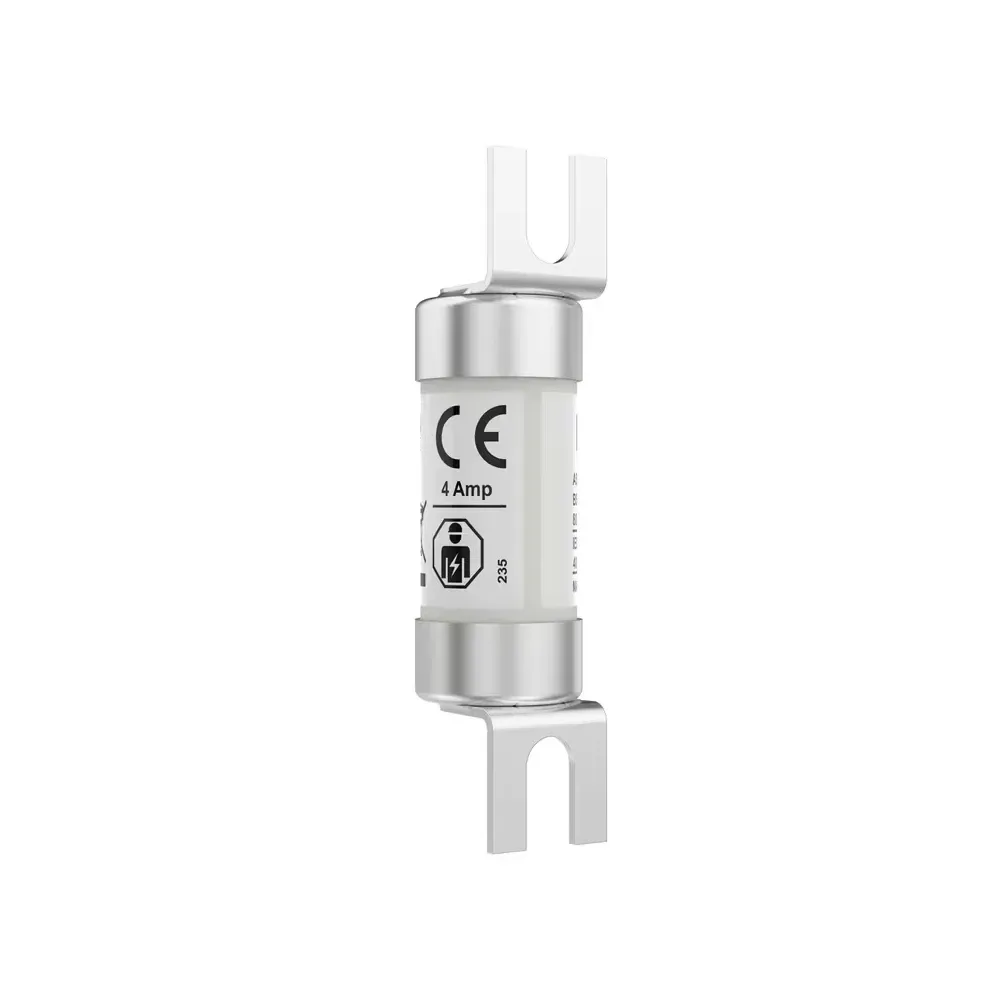

NIT Fuse Link 4A A1 gG 550V AC 250V DC Offset Tag Ceramic BS88

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code NIT 4
GTIN —
Stock status: In stock

priced individually

Net price: £2.06

Gross price

£2.48

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

BS88 gG Type A1 cartridge fuse link for low voltage IEC fuse gear. Offset tag configuration — check your fuse carrier accepts A1 sizing before ordering.

Suited to general-purpose overcurrent protection on AC and DC circuits.

  • 4A, 550V AC / 250V DC
  • AC breaking capacity: 80kA — DC: 40kA
  • Ceramic body, tin-plated copper offset tag
  • 14.5mm dia × 56mm length
  • RoHS compliant
Specifications

Ampere Rating

4 A

Rated Voltage AC

550 V

Rated Voltage DC

250 V

Fuse Class

gG

Fuse Size

A1

AC Breaking Capacity

80 kA

DC Breaking Capacity

40 kA

Terminal Type

Offset Tag

Terminal Material

Tin-Plated Copper

Mounting

Bolted

Body Material

Ceramic

Diameter

14.5 mm

Length

56 mm

Melting I²t

7.6 A²s

Clearing I²t at Rated Voltage

38 A²s

Power Dissipation at Rated Current

1.5 W

Weight

0.0165 kg

RoHS Compliant

Yes

Standard

BS88 / IEC60269
