28912 - 4 Pole 160A Isolator Merlin Gerin|Schneider

Please note: The images provided are for informational purposes only. While we strive for accuracy, some images may contain inaccuracies or may not perfectly represent the subject matter.

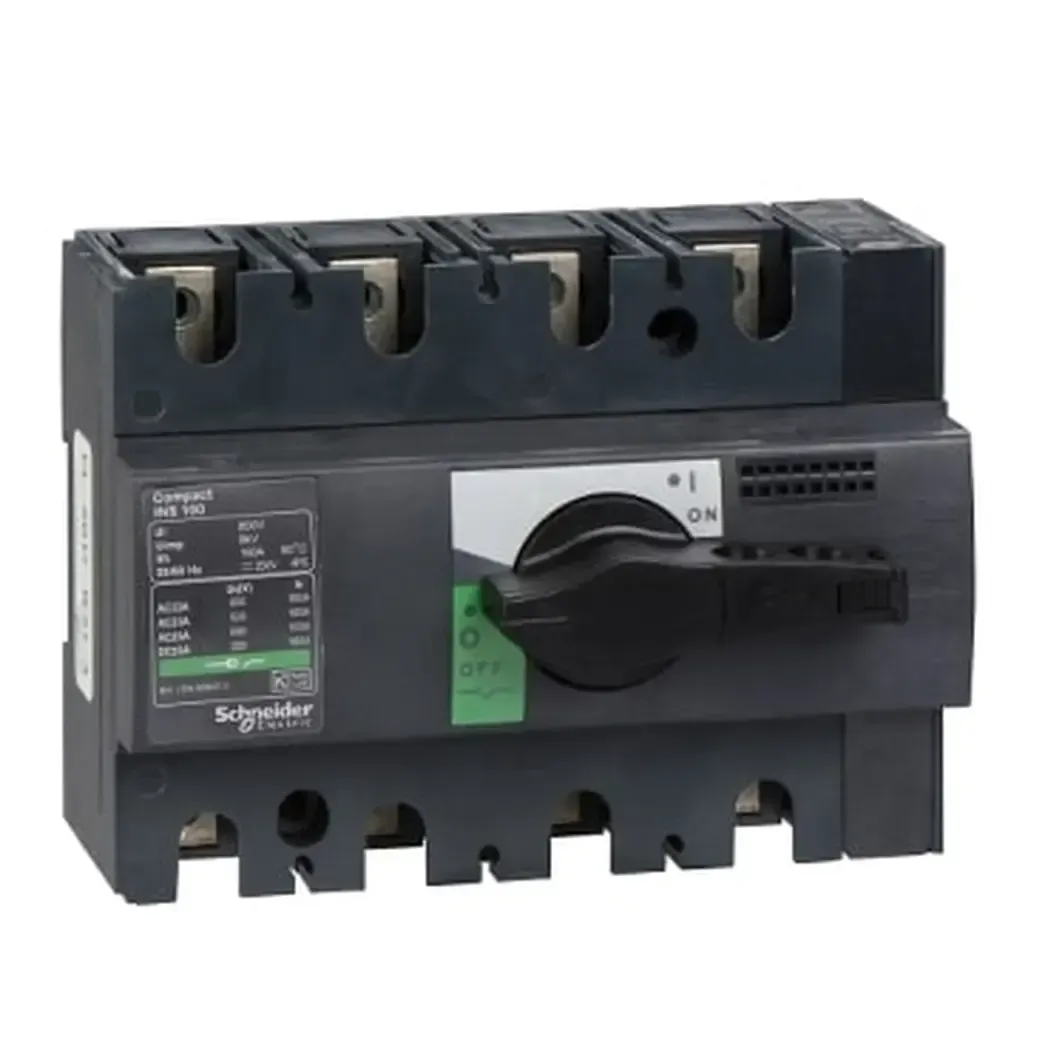

4 Pole 160A Isolator Merlin Gerin|Schneider

This 4-pole 160A Isolator by Merlin Gerin|Schneider is a compact and versatile switch that can handle up to 160 amps. With a height of 100mm, width of 135mm, and depth of 62.5mm, this isolator is suitable for various AC/DC networks. It features conventional free air thermal current of 160A, short-circuit making capacity of 20kA, and a rated operational voltage of 690V AC 50/60Hz.

Stock Code 28912
Out of stock

Product Features

  • Network Type

    AC/DC

  • Visible Break

    No

  • Connection Pitch

    30 mm

  • Pollution Degree

    3

  • Network Frequency

    50/60 Hz

  • Poles Description

    3P

  • Rated Insulation Voltage

    750 V AC 50/60 Hz

  • Rated Operational Voltage

    690 V AC 50/60 Hz, 125 V DC

  • Suitability for Isolation

    Yes

  • Contact Position Indicator

    Yes

  • Rated Impulse Withstand Voltage

    8 kV

  • Conventional Free Air Thermal Current

    160 A (60 C)

Brand

Schneider Electric
