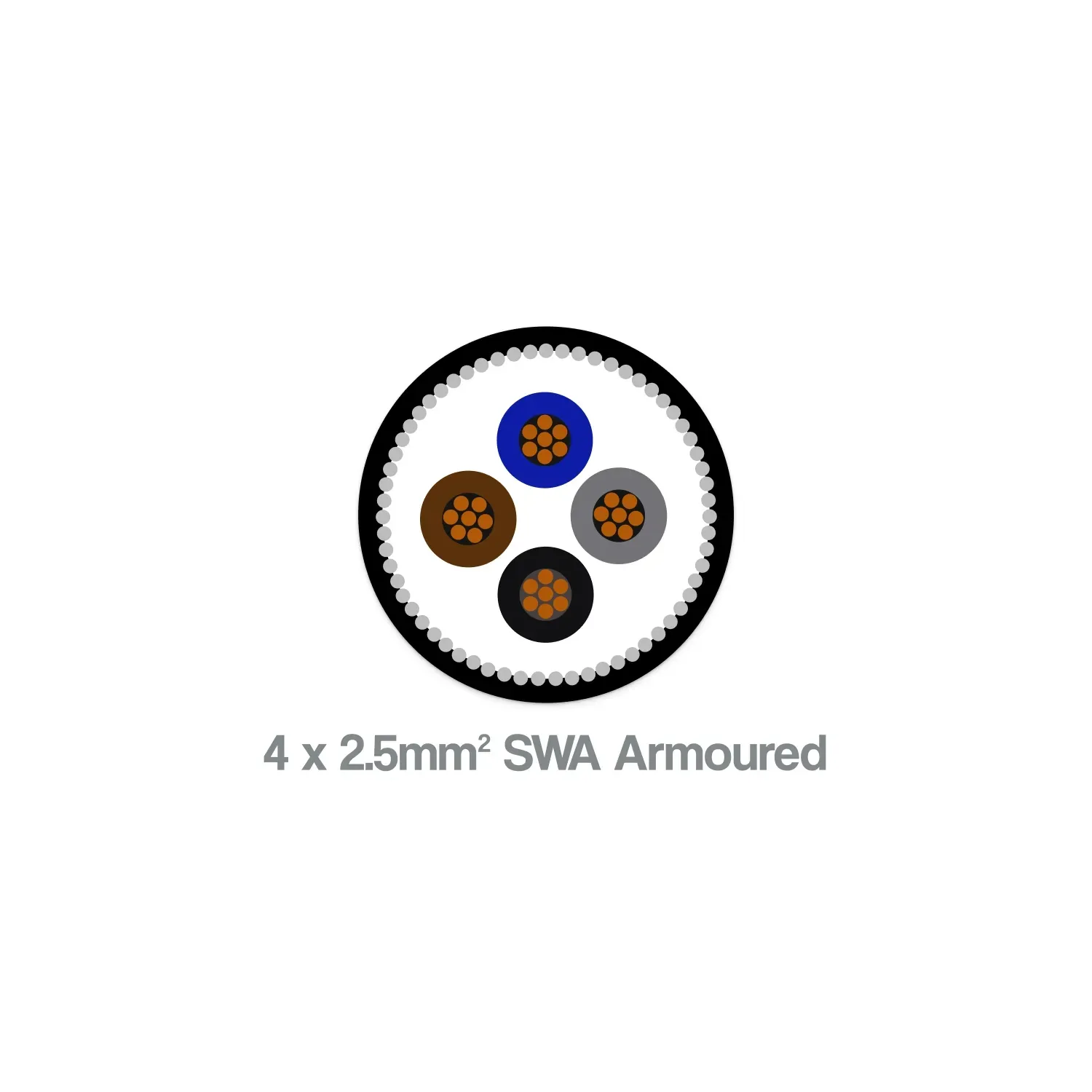

4 core 2.5sqmm Armoured Cable

Photo is representative

2.5mm² 4 Core SWA Armoured Cable 600/1000V XLPE/LSZH w. Blue

Product Information

Stock Code 4X2.5SWAB
GTIN —
Stock status: In stock

priced per meter

Net price: £2.85

Gross price

£3.42

This item is not available to order online. Contact us to arrange supply.

This 2.5mm² 4 core SWA armoured cable is designed for mains power distribution and control applications, rated at 600/1000V with cross-linked polyethylene (XLPE) insulation and a robust LSZH (Low Smoke Zero Halogen) sheath. The cable features Class 2 stranded copper conductors, steel wire armour (SWA) for mechanical protection, and complies with BS6724. It operates within a temperature range of -20°C to +90°C and is suitable for direct burial, underground, ducting, indoor, and outdoor installations – particularly where enhanced fire performance and low smoke emission are required. LSZH construction ensures compliance with IS 10101:2020 for installation in public buildings and hazardous escape routes.

Specifications

Conductor Size

2.5mm² Class 2 stranded copper

Core Count

4 core configuration (brown, black, blue, green/yellow)

Voltage Rating (Uo/U)

600/1000V (0.6/1kV)

Insulation Type

XLPE (Cross-Linked Polyethylene)

Inner Bedding

Low Smoke Zero Halogen (LSZH)

Armour Type

Galvanised Steel Wire (SWA)

Outer Sheath

Black LSZH (Low Smoke Zero Halogen)

Operating Temperature Range

-20°C to +90°C

Maximum Conductor Temperature

90°C continuous

Minimum Bending Radius

6 x overall diameter (fixed)

Overall Diameter

Approx. 13.5mm

Weight per Metre

0.41kg

Voltage Drop (3-phase AC)

16mV/A/m

Standards Compliance

BS6724, BS EN/IEC 60228, IS 10101:2020, EN 60332-1-2, EN 61034-2

Fire Safety

LSZH sheath for low smoke, low acid gas emission, and enhanced fire safety

Gland Size

20S
