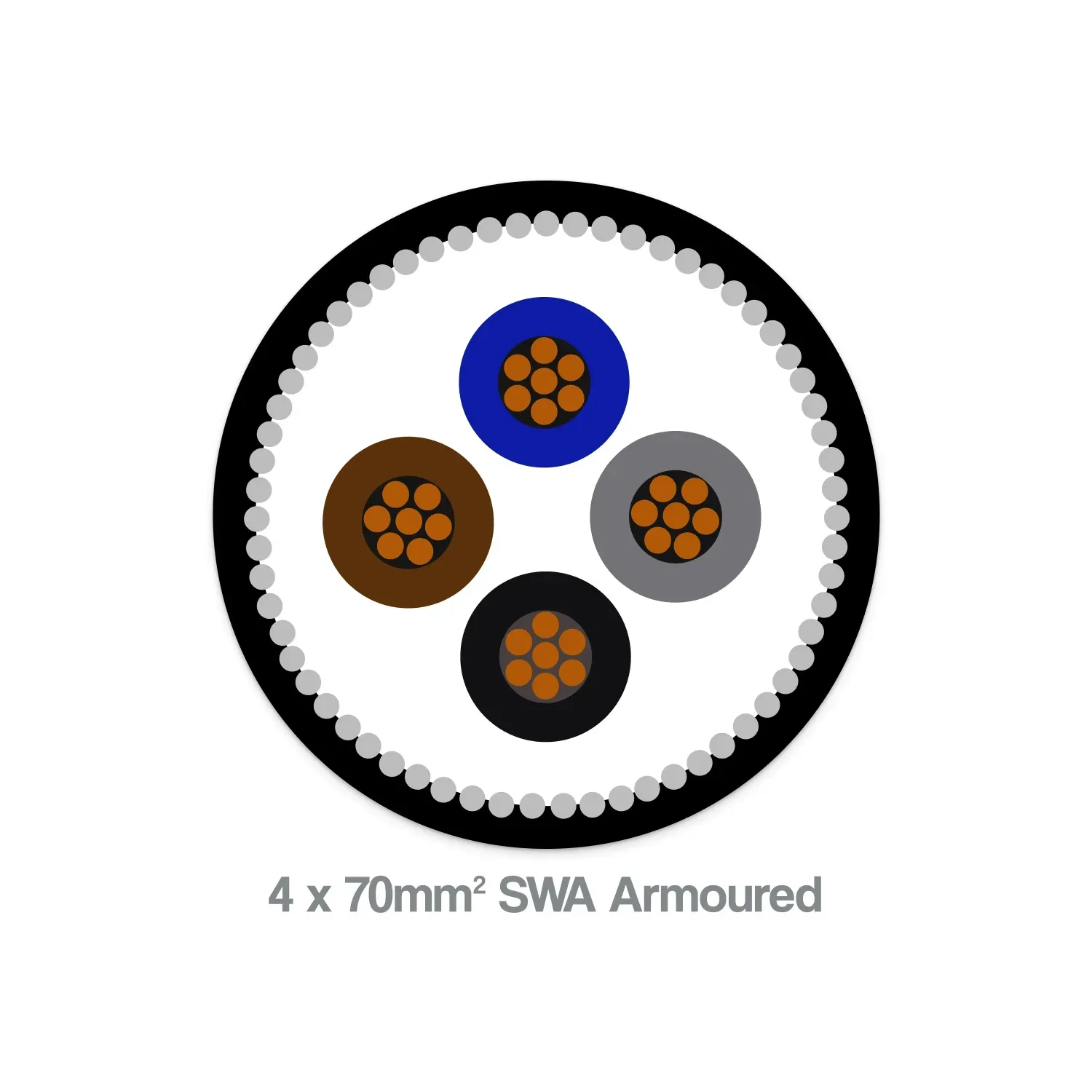

70mm² 4 Core SWA LSZH XLPE armoured cable, 36.6mm diameter, black LSZH sheath

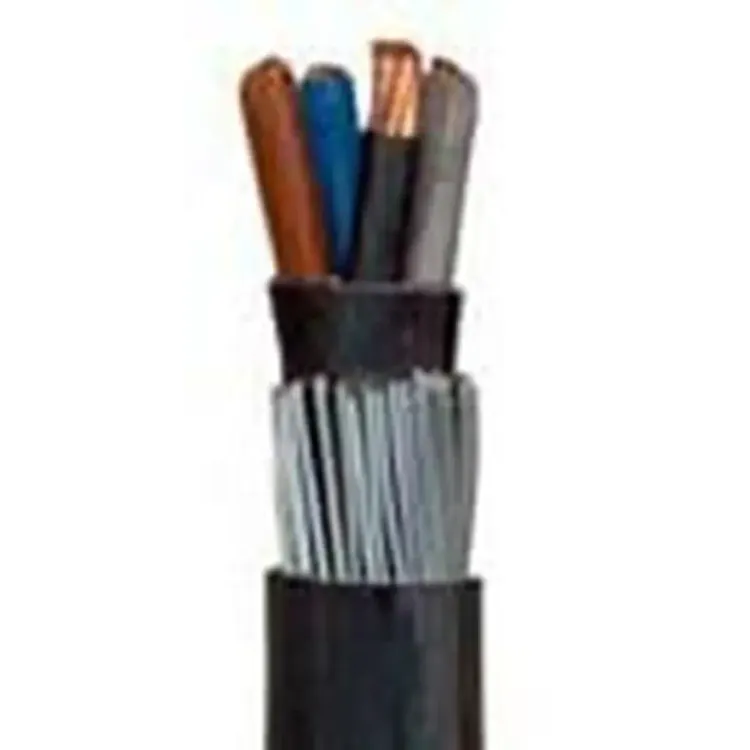

Photo is representative

70mm² 4 Core SWA Armoured Cable LSZH 600/1000V XLPE/LSZH

Product Information

Stock Code 470SWA
GTIN —
Stock status: Out of stock

priced per meter

Net price: £52.37

Gross price

£62.84

This 70mm² 4 core SWA armoured cable is designed for mains power distribution and control circuits, rated at 600/1000V with XLPE insulation and a low smoke zero halogen (LSZH) bedding and outer sheath. The cable features class 2 stranded copper conductors and complies with BS6724 and BS EN/IEC 60228. Operating temperature range: -20°C to +90°C with a maximum conductor temperature of 90°C. Steel wire armour (SWA) provides mechanical protection, making it suitable for direct burial, indoor, outdoor, and duct installations. The LSZH construction ensures minimal smoke and toxic emissions in the event of fire, fully compliant with IS 10101:2020 for Ireland and BS 7671 for the UK. Ideal for public buildings, datacentres, and critical infrastructure.

Specifications

Conductor Cross-Sectional Area

70mm² class 2 stranded copper

Core Count

4 core configuration (Brown, Black, Grey, Blue)

Voltage Rating (Uo/U)

600/1000V

Insulation Type

XLPE (Cross-Linked Polyethylene), maximum conductor temperature 90°C

Bedding and Outer Sheath

Low Smoke Zero Halogen (LSZH)

Armour Type

Steel Wire Armour (SWA) for mechanical protection

Operating Temperature Range

-20°C to +90°C (fixed installation)

Standards Compliance

BS6724, BS EN/IEC 60228, BS EN/IEC 60332-1-2, BS EN/IEC 61034-2, BS EN/IEC 60754-1/2

Approximate Overall Diameter

36.6mm

Weight per Metre

3.41kg/m

Voltage Drop (Three-phase AC)

0.67mV/A/m
