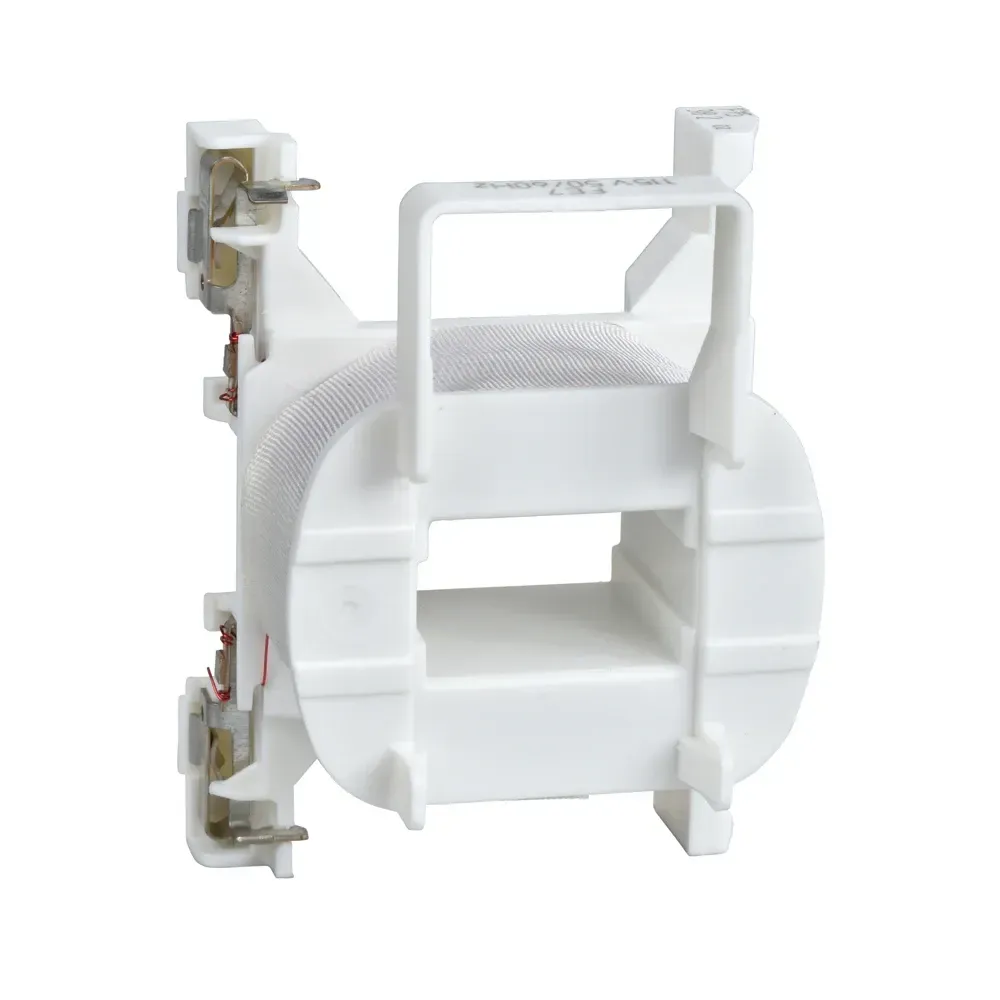

Schneider contactor coil 400V AC for LC1D09...D38 front view, industrial setting

Photo is representative

Schneider Contactor Coil 400V AC for LC1D09...D38 | TeSys Deca Industrial

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code LXD1V7
GTIN —
Stock status: In stock

priced individually

Net price: £17.77

Gross price

£21.32

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

The Schneider Contactor Coil for LC1D09…D38 offers reliable 400V AC 50/60Hz operation, designed for TeSys Deca systems. Optimized for 9 to 38A contactors, it ensures high mechanical durability and stable performance. Ideal for demanding industrial installations requiring dependable control circuit activation. Suited for professional electricians and maintenance engineers handling large-scale automation.

Specifications

Brand

Schneider

Control Circuit Voltage

400V AC 50/60Hz

Product Compatibility

LC1D09...D38, LC1DT20...DT40, CAD

Average Resistance

1633 Ohm at 20°C

Inductance of Closed Circuit

60 H

Mechanical Durability

15 million cycles

Operating Rate

3600 cycles/hour at 60°C

Coil Power Consumption

Inrush 70 VA, Hold-in 7-7.5 VA

Ambient Operating Temperature

-5…60°C

Net Weight

0.07 kg

Frequently asked questions

What contactor models are compatible with this Schneider 400V AC coil?

This coil is specifically compatible with Schneider LC1D09...D38, LC1DT20...DT40, and CAD contactor models within the TeSys Deca series, covering a range of 9 to 38A.

What is the typical inrush and hold-in power consumption?

Inrush power is 70 VA at 50/60 Hz (cos phi 0.75), and hold-in power is 7 VA (50Hz) or 7.5 VA (60Hz) with cos phi 0.3. These values are at 20°C.

What are the control circuit voltage operating limits for safe operation?

Drop-out occurs at 0.3...0.6 Uc at 50/60Hz (<60°C), while operational limits are 0.8...1.1 Uc (50Hz) and 0.85...1.1 Uc (60Hz) at <60°C ambient temperature.

Is this coil suitable for continuous industrial use?

Yes, it is designed for high reliability with 15 million mechanical cycles minimum durability and a maximum operating rate of 3600 cycles/hour at 60°C ambient.

Does the coil include a built-in suppressor module?

No, this particular coil is supplied without a built-in suppressor module. Additional suppression should be installed externally if required.
