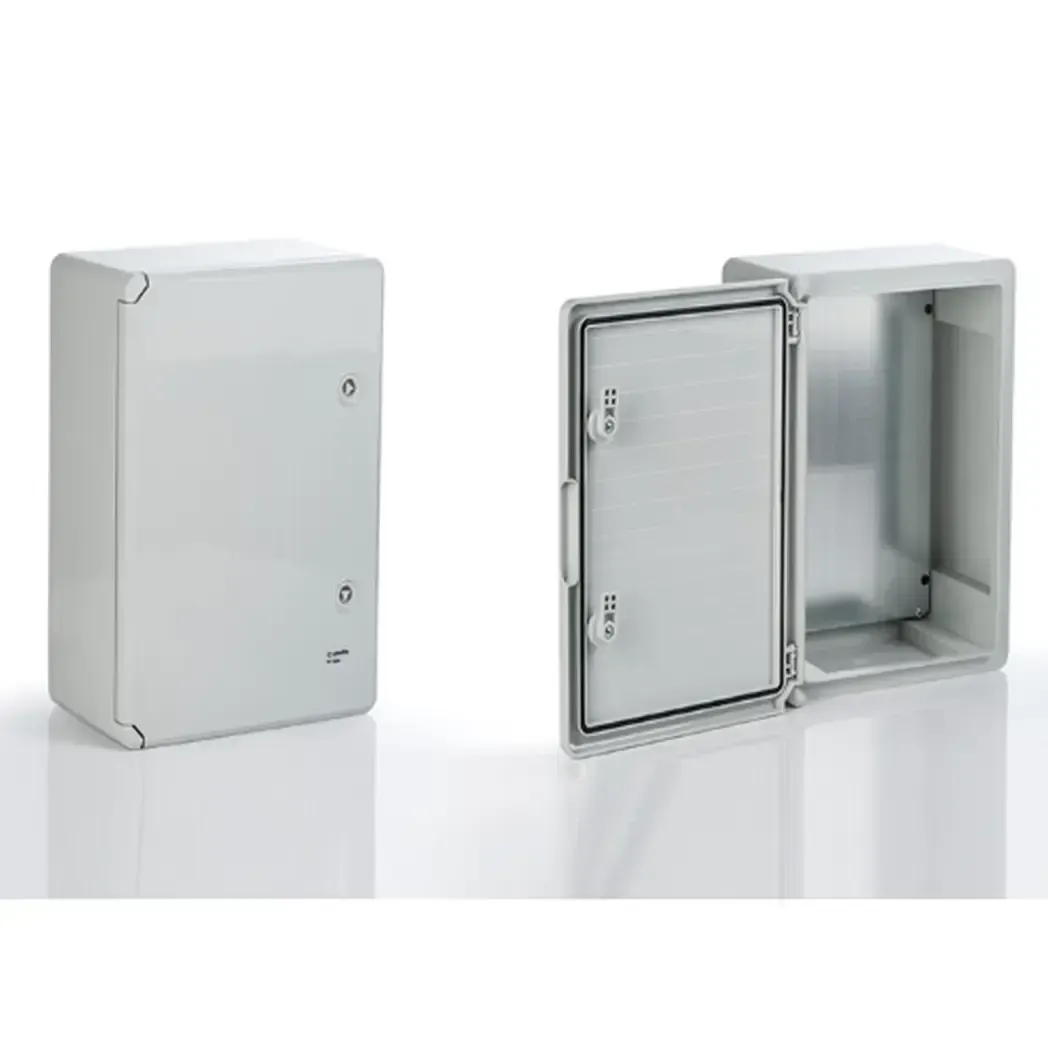

PP3008 - 400x600x200mm Plastic Distribution Board IP65 Grey Door Plasim PP3008

Photo is representative

400x600x200mm Plastic Distribution Board IP65 Grey Door Plasim PP3008

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code PP3008
GTIN
Stock status: Out of stock

priced individually

Net price: £70.50

Gross price

£84.60

The 400x600x200mm Plastic Distribution Board IP65 with Grey Door is designed for optimum protection against chemical agents, with a rated voltage up to 690V and maximum current up to 800A. Constructed with HB ABS Halogen-Free material and polycarbonate doors, this distribution board features galvanised steel mounting plate, IP65 and IK08 degrees, and is suitable for a temperature range from -35°C to 65°C.

Specifications

Colour

RAL7035 Grey (Other colours on request)

Material

HB ABS Halogen Free + Polycarbonate (Doors)

IK Degree

IK08

IP Degree

IP65

Dimensions

400x600x200mm

Resistance

Chemical agents alkali oils salts etc

Rated Voltage

Up to 690V

Mounting Plate

Galvanised steel 1mm

Maximum Current

Up to 800A

Operating Temperature

-35°C to +65°C
