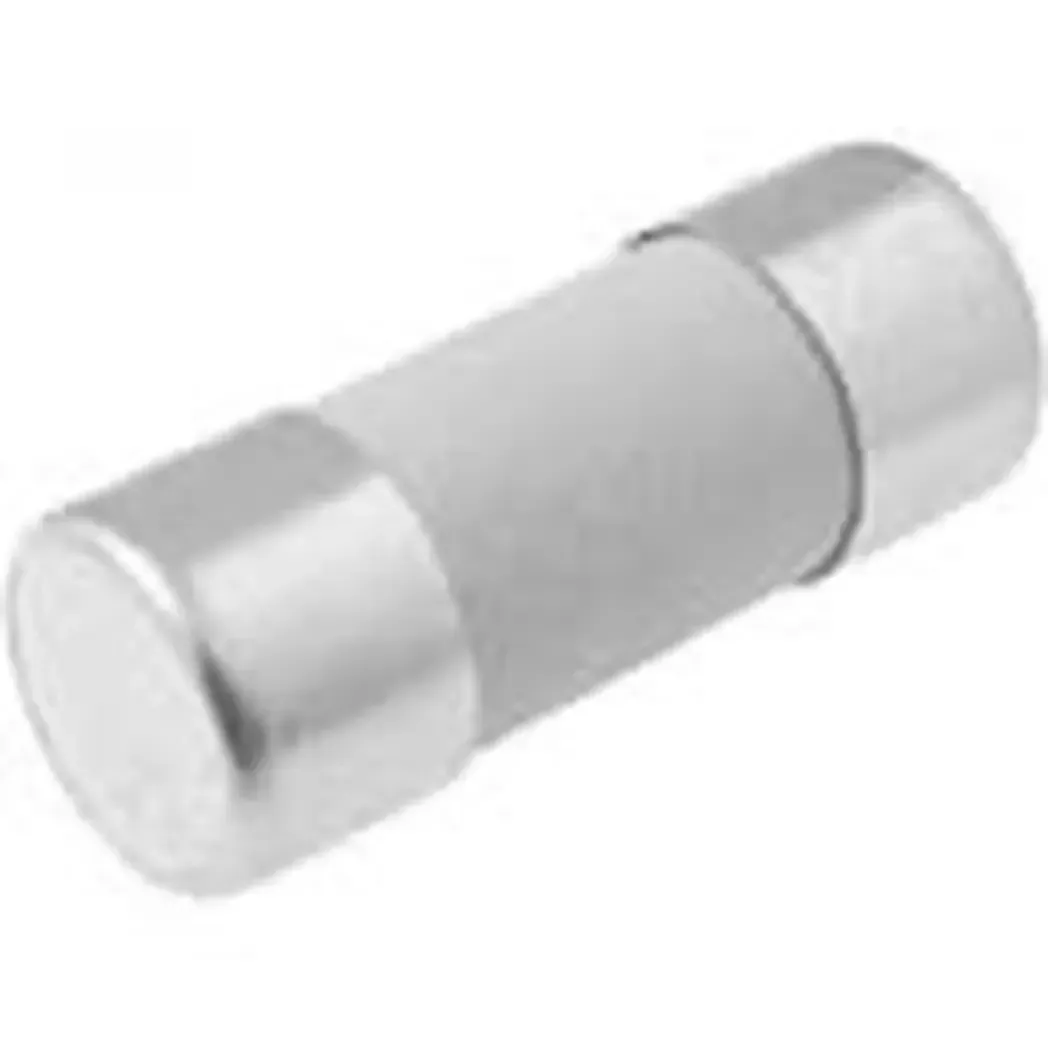

40A 14x51mm aM Cylindrical Fuse Link 500V AC IEC EN 60269

Photo is representative

40A 14x51mm aM Cylindrical Fuse Link 500V AC IEC EN 60269

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 441040
GTIN —
Stock status: In stock

priced individually

Net price: £3.10

Gross price

£3.72

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

aM cylindrical fuse link, 14x51mm format. Class aM — short-circuit protection only, suited to motors, transformers, and other loads with high inrush currents where overload protection is handled upstream.

Good current limiting capability with low I²t values. Ceramic body with silver-plated copper contacts. Compliant with IEC/EN 60269-1 and IEC/EN 60269-2.

  • Rated current: 40A
  • Rated voltage: 500V AC
  • Breaking capacity: 120kA @ 500V/400V
  • Operating class: aM
  • Dimensions: 14.3mm dia × 51mm length
Specifications

Rated Current

40A

Rated Voltage

500V AC

Operating Class

aM

Breaking Capacity

120kA @ 500V/400V

Rated Frequency

42…62Hz

Operating Temperature

-40°C to 80°C

Storage Temperature

-40°C to 90°C

Power Dissipation @ 40A

2.60W

Prearcing I²t @ 40A

4500 A²S

I²t @ 500V @ 40A

13263 A²S

I²t @ 400V @ 40A

10685 A²S

Length

51mm

Diameter

14.3mm

Weight

18g

Body Material

Ceramic

Contact Material

Silver plated copper

Standards

IEC/EN 60269-1, IEC/EN 60269-2

RoHS Compliant

Yes
